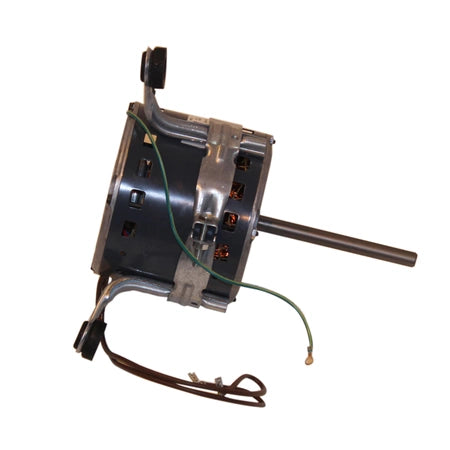

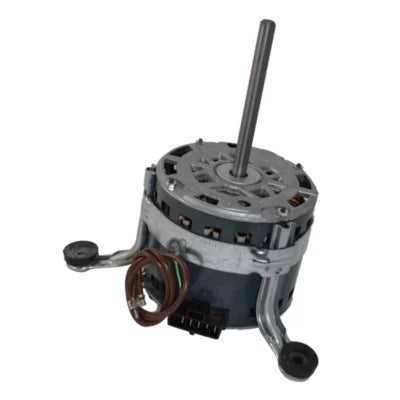

CARRIER B0189001 Motor Assembly 1/3 HP

Product Description

The CARRIER B0189001 is a motor assembly designed for reliable performance. This unit features a 1/3 horsepower PSC motor, ideal for direct drive applications. It operates on 115 VAC and is suitable for continuous running duty. With four available speeds, it effectively meets various airflow needs.

• Motor Type: PSC (Permanent Split Capacitor)
• RPM: 1,000 with four-speed settings
• Designed for continuous duty (S1)

Product Highlights

This motor assembly is efficient and designed for long-lasting use in HVAC systems.

Product Information

Standard Information

• Brand: CARRIER
• MPN: B0189001

Technical Specifications

• Motor HP: 1/3 HP
• Voltage: 115 VAC
• Cycle/Hertz: 60 Hz
• Phase: Single
• RPM: 1,000
• Number of Speeds: 4
• Rotation: Counter Clockwise (CCW)
• Full Load Amps: 7.3
• Duty: Continuous Running Duty (S1)
• NEMA Frame: 39
• Service Factor: 1
• Weight: 12.45 lbs
• Length: 10.1 inches
• Width: 9.3 inches
• Height: 10 inches
• Cubic Measurement: 0.5436
• UPC: 662442552051
• GTIN: 00662442552051
• Approvals: CSA Listed
