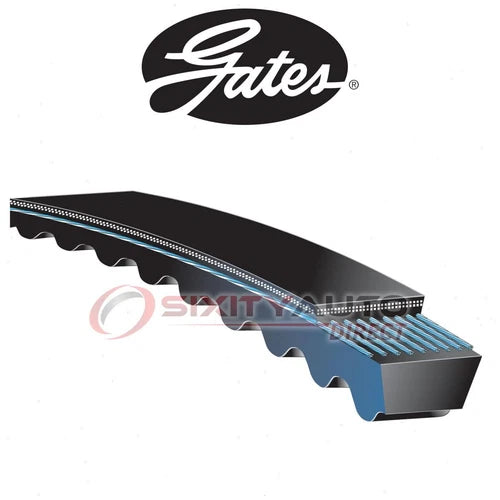

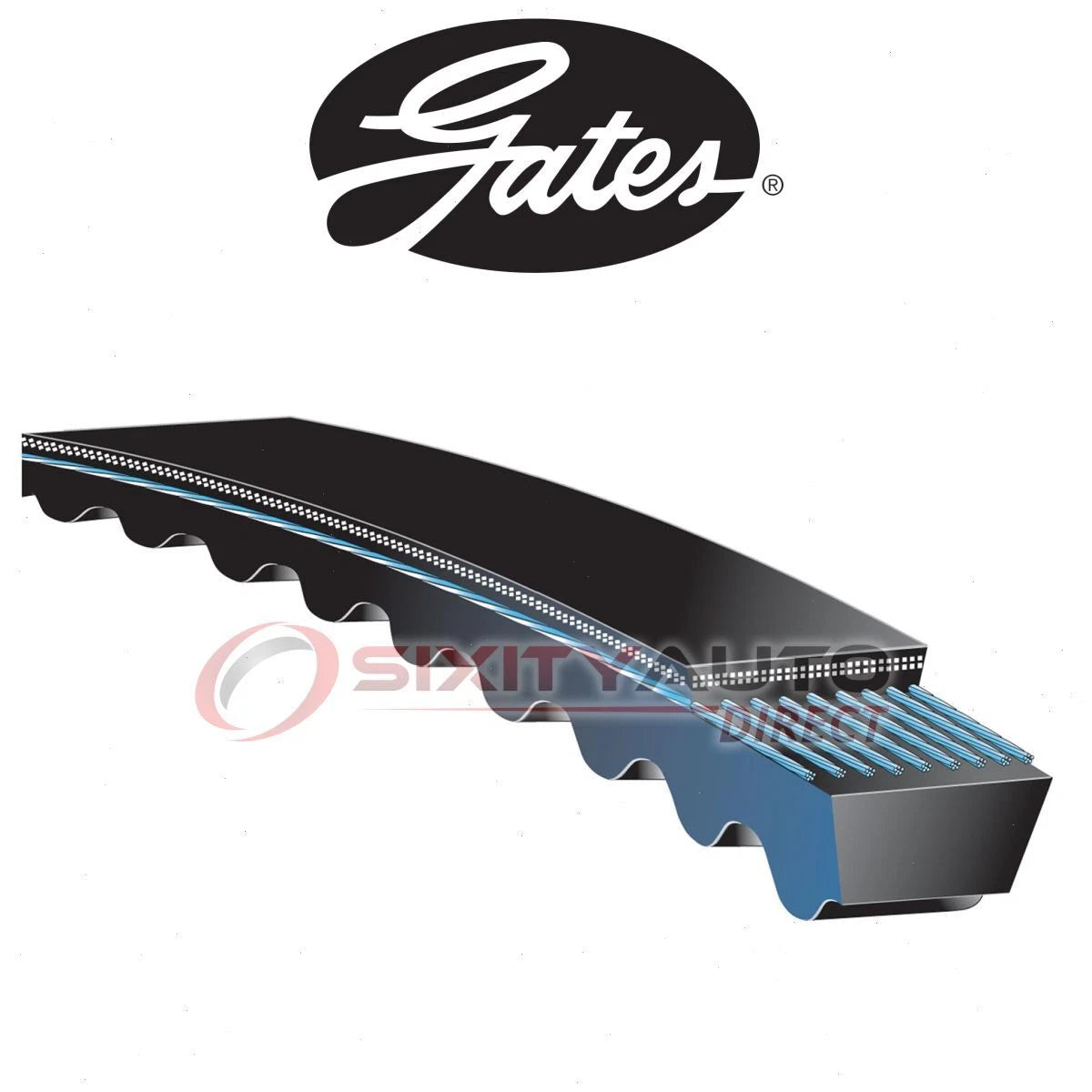

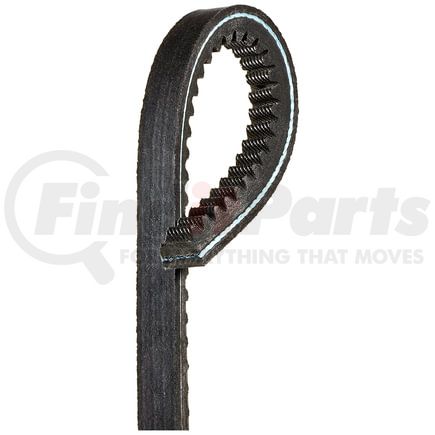

CARRIER AX49 Tri-Power V-Belt

Product Description

The CARRIER AX49 Tri-Power V-Belt is a direct replacement accessory drive belt. This product is designed with a notched structure, making it suitable for systems that utilize smaller diameter pulleys. The belt's flex-bonded cords help distribute loads evenly and absorb bending stress, fatigue, and shocks during operation.

• Machined belt edge maintains optimal contact with pulley grooves, reducing slippage and wear.
• Flex-bonded cords improve load distribution and stress absorption.
• Meets RMA standards for oil and heat resistance, along with static conductivity.

Product Highlights

This V-belt operates effectively under temperatures from negative fifty-eight degrees Fahrenheit to positive two hundred forty-eight degrees Fahrenheit. Its cross-oriented fiber-loaded rubber enhances flexibility and stability for reliable performance.

Product Information

Standard Information

• Type: Accessory Drive Belt
• Interchange Part Numbers: Carrier Transicold 50-00179-56, Carrier Transicold 50-01180-53, Carrier Transicold 500116953, PIX A-AX49, Dayco CARQUEST S422, Ford ACDelco GM 67-32

Technical Specifications

• Core Charge: Free - No Core Charge
• Placement on Vehicle: Belts Cooling > Accessory Drive Belt System
• Fitment Type: Direct Replacement
• Bundle Description: 1 pc Genuine Gates Accessory Drive Belt
• Cross Section Designation: AX
• Top Width: 13 mm
• Outside Circumference: 1295 mm
• Construction: Notched
• Belt Material: EPDM
• Cord Material: Polyester
• Cogged: True
• Outer Diameter: 51 mm
• Replaces Old Carrier Part Numbers: KR29AF049
• Other Part Numbers: V-BELT
