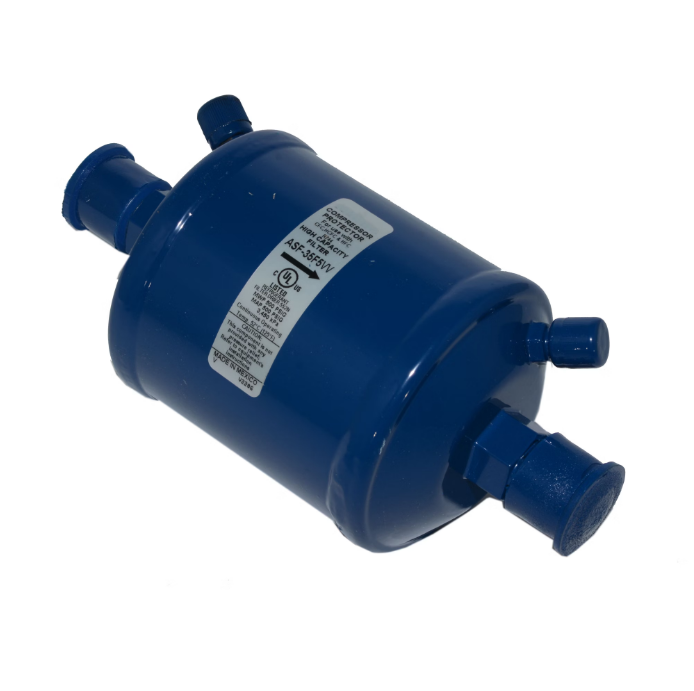

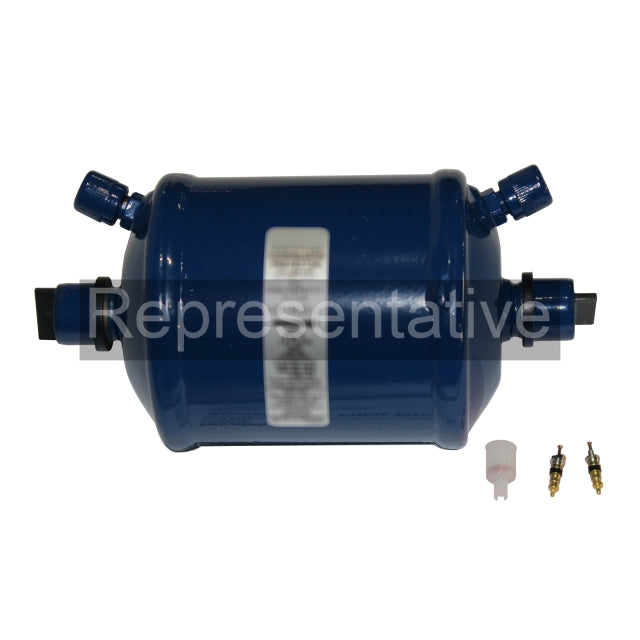

CARRIER ASF35F5VV Filter Drier

Product Description

The CARRIER ASF35F5VV is a filter drier that works with Carrier, Bryant, and Payne HVAC systems. This component is essential for filtering and removing solid contaminants to maintain efficient operation. Made with solid copper connections, it features a durable epoxy powder paint finish to resist corrosion. The design includes dual access valves, making pressure readings straightforward.

• Protects the compressor from dirt and solid contaminants
• Flare (SAE) connection type for secure fittings
• Ideal for liquid line applications

Product Highlights

This filter drier is specifically built to enhance compressor longevity and system efficiency.

Product Information

Standard Information

• Brand: Carrier
• MPN: ASF35F5VV

Technical Specifications

• Connection Type: Flare (SAE)
• Nominal Connection Size: 5/8 in
• Line Type: Liquid
• Core Material & Finish: Solid Core
• Effective Volume Desiccant: 35
• Maximum Working Pressure: 500 PSIG
• Shell Material & Finish: Painted
• Connection Material Finish: Copper
• Application: Filter for compressor protection
• Diameter: 3.69 in
• Height: 3.2 in
• Length: 4.1 in
• Shipping Height: 3.8 in
• Shipping Length: 9.5 in
• Shipping Weight: 2 lb
• Shipping Width: 3.8 in
• Type: Liquid Line
• UL Listed: True
• UL Recognized: True
• Weight: 1.8 lb
• Width: 8 in
