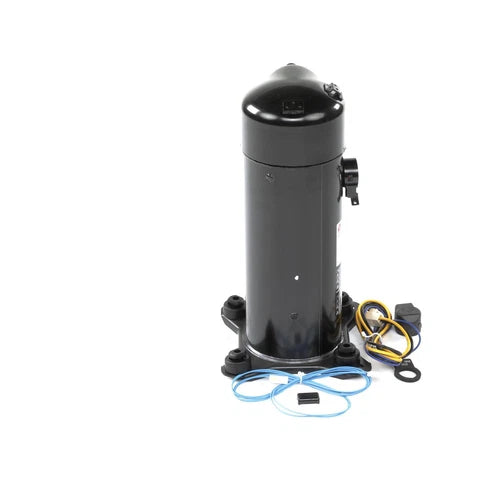

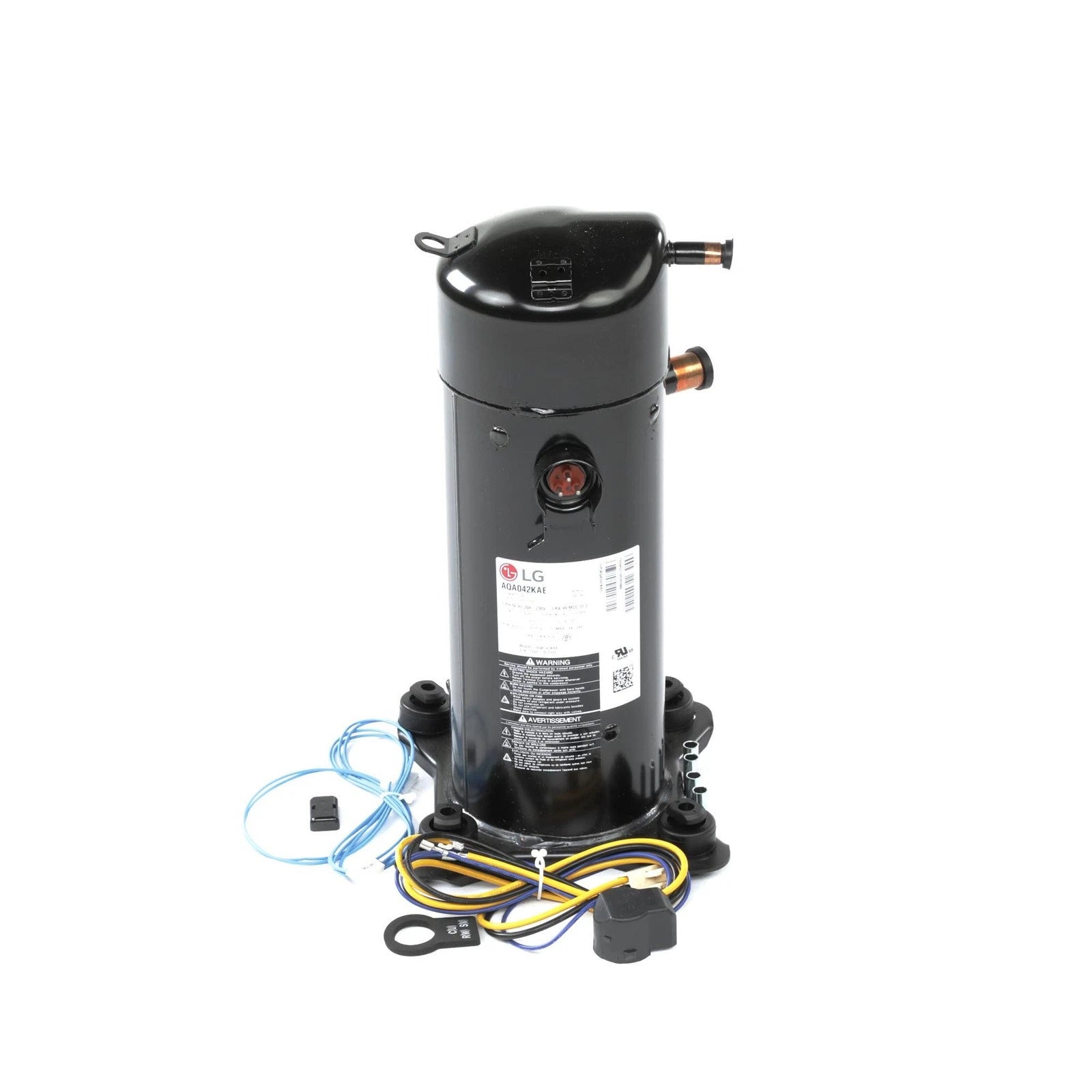

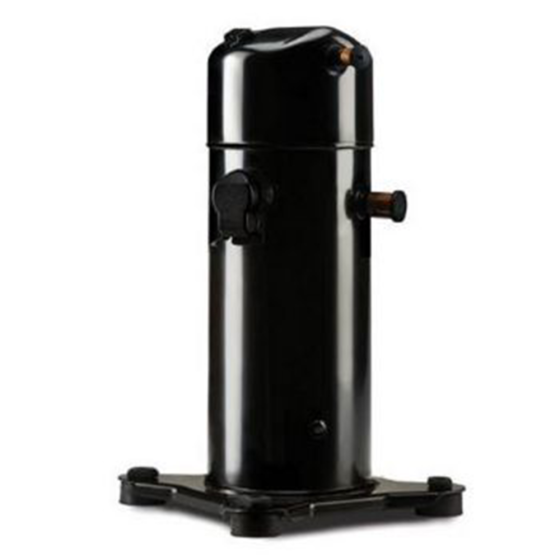

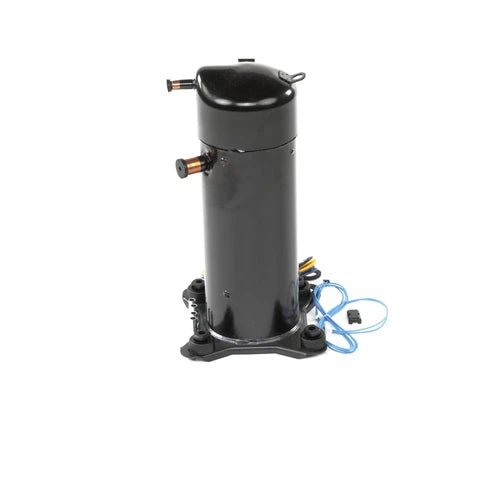

CARRIER AQA042KAE Scroll Compressor - R-410A, 41500 BTU, 208/230V, Single Phase

Product Description

The CARRIER AQA042KAE scroll compressor is designed for use with R-410A refrigerant. With a BTU rating of 41,500, this unit is effective for cooling applications. It operates on a single-phase power supply of 208/230V and is suitable for various HVAC systems. This compressor comes with a molded plug for secure connection, operates efficiently at 60Hz, and utilizes POE oil for superior performance.

• Utilizes R-410A refrigerant for cooling systems.
• Operates on a 208/230V single-phase power supply.
• Compact dimensions of 10.5 x 11 x 22 inches.

Product Highlights

This compressor is ideal for applications that require a hermetically sealed housing. Its robust design ensures reliability in various operating conditions.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Scroll

Technical Specifications

• BTU Output: 41,500
• Dimensions: 10.5 x 11 x 22 inches
• Weight: 67 pounds
• Amps: 18
• Voltage: 208/230V
• Discharge Connection Size: 1/2 inches
• Suction Line Size: 7/8 inches
• Oil Type: Polyolester (POE)
• Cycle/Hertz: 60Hz
• Country of Origin: South Korea
