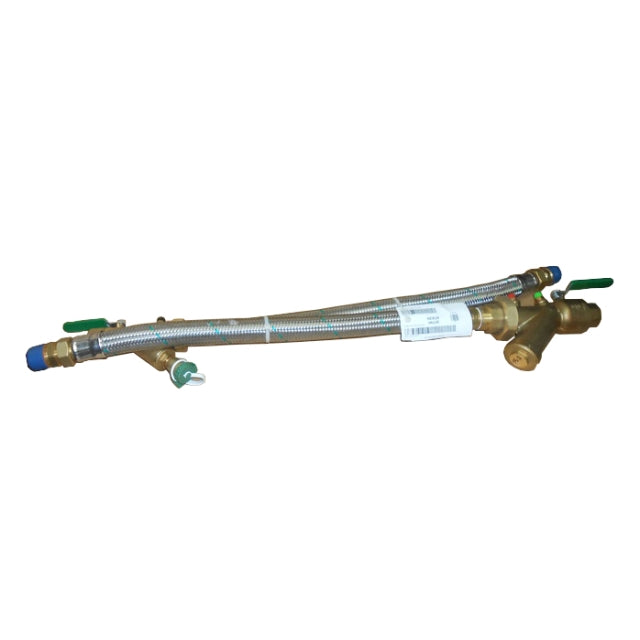

Carrier AHC1002-1200 Hose Kit 1 Inch X 24 Inches 120 Gpm

Product Description

The CARRIER AHC1002-1200 is a braided hose kit designed for hydronic or chilled-water system connections in commercial and residential HVAC applications. The kit includes an isolation valve, a pressure regulator, and a strainer — all components commonly required when making supply and return water connections to fan coils, air handlers, or similar water-source equipment. At a rated flow of 120 GPM and a 1-inch connection size, this kit is suited for higher-capacity systems where a complete, pre-assembled connection package simplifies installation and reduces field fabrication time.

This hose kit is intended for use in hydronic HVAC systems where flexible braided connections are required between rigid piping and terminal equipment. Typical applications include water-source heat pumps, fan coil units, and air handlers. The integrated isolation valve allows the connected equipment to be serviced without draining the entire loop, and the strainer protects downstream components from particulate contamination. The regulator helps maintain consistent pressure at the unit connection point.

Key Features

• Complete connection kit including braided hose, isolation valve, regulator, and strainer
• Rated for 120 GPM flow capacity, suited for larger hydronic terminal units
• 1-inch connection size accommodates standard supply and return piping
• Braided hose construction provides flexibility and vibration isolation between rigid pipe and equipment
• Integrated strainer protects downstream components from debris in the hydronic loop
• Isolation valve enables unit-level service without system shutdown

Compatibility

Designed as an OEM-style replacement or installation component for Carrier hydronic HVAC equipment requiring 1-inch braided flexible hose connections with integrated valve, regulator, and strainer assemblies.

Installation Notes

Installation should be performed by a licensed HVAC or plumbing technician familiar with hydronic system piping. Shut off and isolate the hydronic loop and relieve system pressure before disconnecting or installing any hose or valve components. Follow local plumbing codes and ASHRAE hydronic system guidelines for proper connection torque, pipe support, and pressure testing. Do not exceed the rated flow capacity of 120 GPM during commissioning.

Technical Specifications

• Connection Size: 1 inch
• Hose Length: 24 inches
• Flow Rate: 120 GPM
• Included Components: Braided hose, isolation valve, regulator, strainer
• Hose Construction: Braided

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: AHC1002-1200
