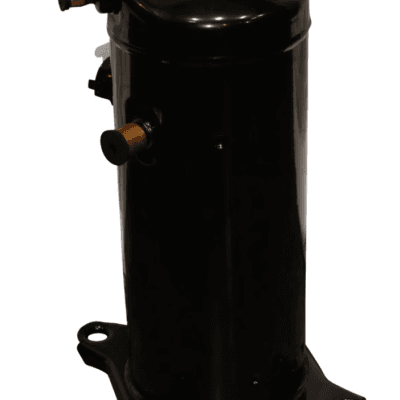

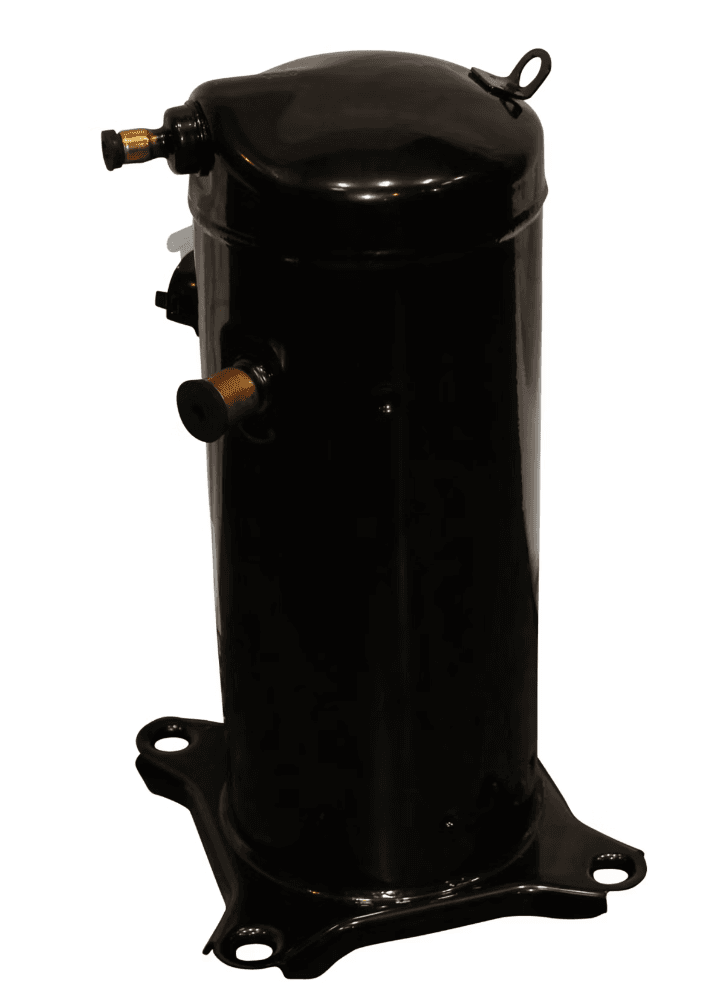

CARRIER ABG036KAB Scroll Compressor 3 HP 36,000 BTU

Product Description

The CARRIER ABG036KAB is a reliable hermetic scroll compressor suitable for air conditioning and refrigeration applications. It efficiently uses R-410A refrigerant and operates on 208-230 VAC power supplies at 60 Hz. This compressor delivers a cooling capacity of 36,000 BTU and is powered by a three horsepower motor.

• Designed for single-phase power at 208-230 VAC.
• Equipped with a hermetic housing and scroll mechanism for efficient operation.
• Includes specific fitting sizes for suction and discharge connections.

Product Highlights

This compressor meets various cooling requirements with its robust build and efficient operation, providing HVAC professionals with a dependable solution for installation and repair tasks.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Scroll

Technical Specifications

• BTU Output: 36,000
• Motor HP: 3
• Locked Rotor Amps (LRA): 112.3
• Rated Load Amps (RLA): 15.9
• Dimensions: 10.5 x 11 x 22 inches
• Mounting Dimensions: 7.5 x 7.5 inches
• Oil Type: Polyolester (POE)
• Refrigerant: R-410A
