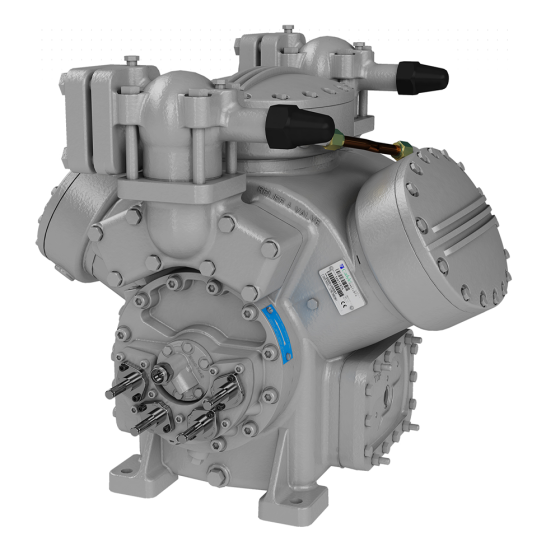

CARRIER 5H120A219 Open-Drive Reciprocating Compressor

Product Description

The CARRIER 5H120A219 is an open-drive reciprocating compressor designed for use with various refrigerants including R134a, R12, R22, R404A, R507, and R502. This unit is built for high, medium, and low-temperature applications, featuring a robust chassis that houses twelve cylinders. It includes a crankcase heater to prevent liquid refrigerant accumulation during shutdown, ensuring reliable operation. The compressor can be configured for either belt or direct drive, allowing for flexibility in installation.

• Versatile refrigerant compatibility, including R12, R22, and R502.
• Constructed with twelve cylinders for efficient performance.
• Optimal for various temperature applications.

Product Highlights

The CARRIER 5H120A219 offers durable construction and versatile functionality for efficient cooling and heating solutions.

Product Information

Standard Information

• Manufacturer Part Number: 5H120A219
• Application: High Temp, Medium Temp, Low Temp

Technical Specifications

• Refrigerant: R12, R22, R502
• Number of Cylinders: 12
• Displacement (CFH at 1100 RPM): 10,961
• Displacement (CFH at 1750 RPM): 16,608
• Max Displacement (CFM): 276.8
• Horsepower: 75 to 125
• Connection Discharge (In.): 4 1/8
• Connection Suction (In.): 4 1/8
• Type Drive: Belt/Direct
