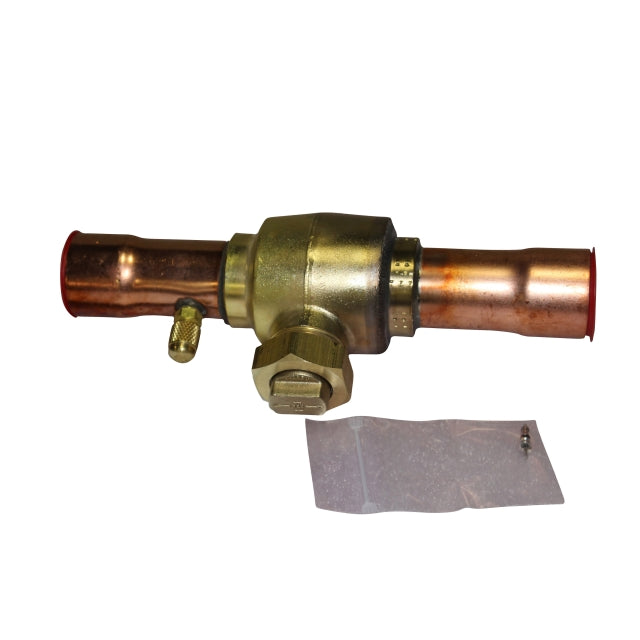

CARRIER 592WAS-13ST Ball Valve with Access Fitting

Product Description

The CARRIER 592WAS-13ST is a durable ball valve designed specifically for refrigeration applications. It comes with a forged brass body and copper tube extensions, enhancing its reliability and performance. This valve operates with a quarter-turn mechanism, allowing for easy opening and closing. It is suitable for various refrigerants including CO2, CFC, HFC, and HCFC.

• Forged brass body with copper tube extensions
• Quarter-turn operation for easy use
• Compatible with multiple refrigerants

Product Highlights

This valve offers robust functionality for refrigeration services and meets high-performance standards.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 592WAS-13ST

Technical Specifications

• Valve Type: Ball Valve
• Connection Size: 1 3/8 inches
• Connection Type: Sweat or Braze
• Body Material: Brass
• Maximum Pressure: 800 PSIG
• Operating Temperature Range: -40°F to +325°F
• Weight: 4.18 pounds
• Length: 8.9 inches
• Width: 2.5 inches
• Height: 3.8 inches
• Approvals: CUL Listed; UL Listed
• Ball Port Diameter: 1 1/2 inches
• Country of Origin: USA
