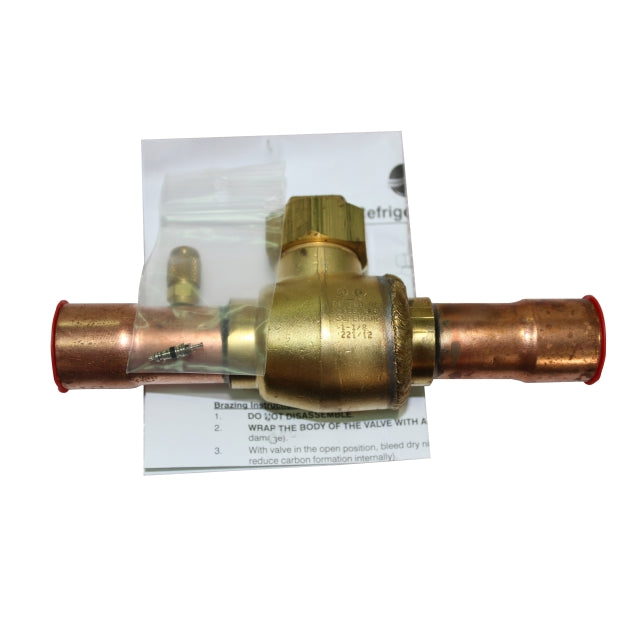

CARRIER 591WAS-11ST Ball Valve with Access Fitting

Product Description

The CARRIER 591WAS-11ST is a ball valve featuring an access fitting. This valve is constructed with a forged brass body for durability. It includes a polished brass/carbon steel ball and is ideal for handling HCFC, HFC, CFC, and HFO refrigerants along with oil.

• Includes a 1/4 inch M flare access fitting.
• Designed for bi-directional flow.
• Operates in a temperature range of -40 to 325 degrees Fahrenheit.

Product Highlights

This ball valve allows for efficient 1/4 turn actuation and ensures reliable performance with dual PTFE seals.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 591WAS-11ST

Technical Specifications

• Valve Type: Ball Valve
• Connection Type: ODS
• Inlet Connection Size: 1-1/8 inches
• Outlet Connection Size: 1-1/8 inches
• Port Type: Full
• Body Material: Forged Brass
• Ball Material: Polished Brass/Carbon Steel
• Seal Material: PTFE
• Actuation Type: 1/4 Turn
• Pressure Rating: 800 PSIG
• Operating Temperature Range: -40°F to 325°F
• Overall Length: 7.69 inches
• Length: 8.40 inches
• Width: 3.80 inches
• Height: 2.30 inches
• Weight: 2.35 pounds
• Ball Port Diameter: 1.5 inches
• Application: HCFC/HFC/CFC/HFO Refrigerant and Oil
• Country of Origin: USA
• Approvals: CSA Listed
• End Connection: ODS x ODS
• End to End Distance: 8.88 inches
• Inclusions/Features: Access Fitting, Strategically Located on Tube Extension
• Applicable Standard: UL/CUL, CRN 0C8195.5
• Flow (Cv): 62.0
