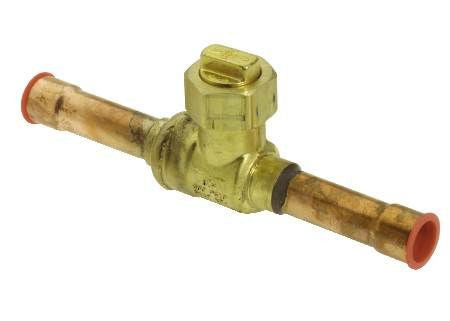

CARRIER 587WA-14ST Ball Valve - 7/8 in ODF

Product Description

The CARRIER 587WA-14ST is a ball valve suitable for refrigeration systems. The valve includes a brass body and is equipped with 7/8-inch ODF connections for the inlet and outlet. The valve operates effectively in a temperature range of negative forty degrees Fahrenheit to three hundred twenty-five degrees Fahrenheit and can handle pressures up to eight hundred PSIG. With a ball port diameter of three-fourths inch, this valve is UL and CUL Listed.

• Features 7/8-inch ODF connections compatible with standard refrigeration piping.
• Constructed from brass for durability and corrosion resistance.
• Designed for high-pressure applications with a maximum working pressure of 800 PSIG.

Product Highlights

This valve allows for precise fluid control with a quarter-turn operation from full open to full close.

Product Information

Standard Information

• Brand: CARRIER
• Model: 587WA-14ST

Technical Specifications

• Body Material: Brass
• Inlet Connection Size: 7/8 inches
• Outlet Connection Size: 7/8 inches
• Valve Type: Ball valve
• Max Working Pressure: 800 PSIG
• Operating Temperature Range: -40°F to 325°F
• Ball Port Diameter: 3/4 inch
• Weight: 1 pound
