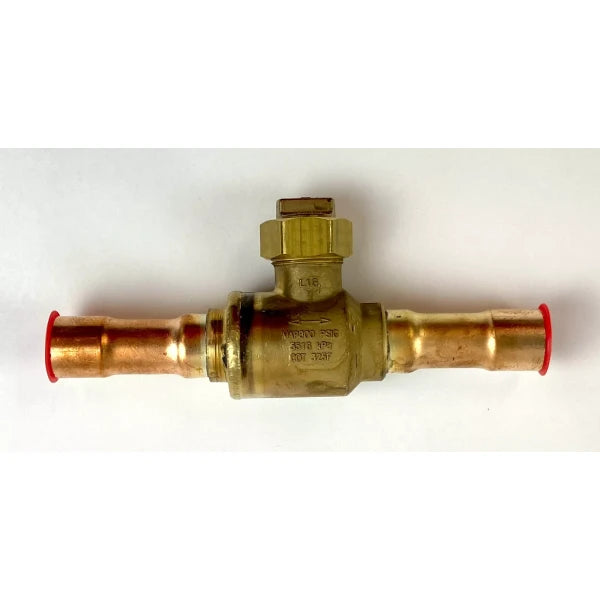

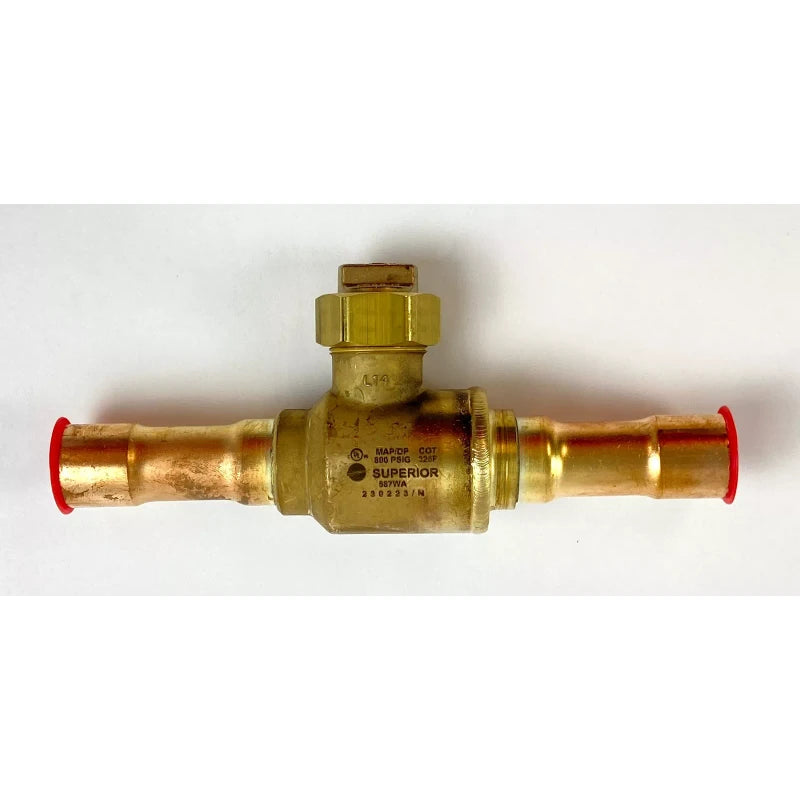

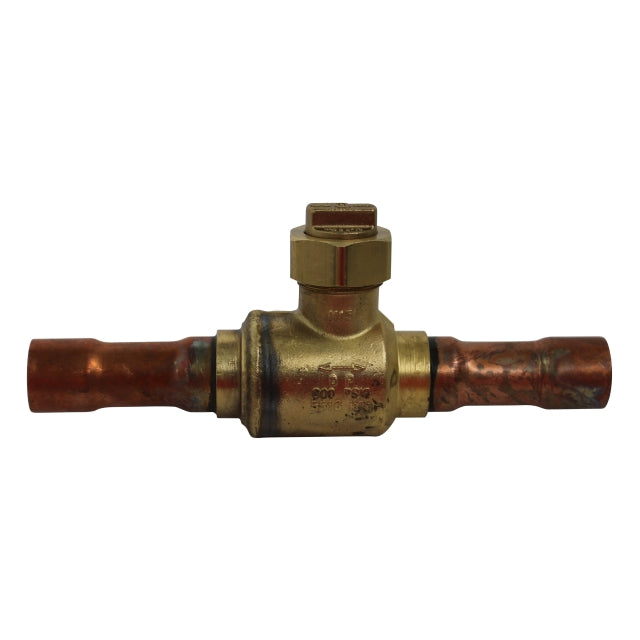

CARRIER 587WA-12ST Ball Valve

Product Description

The CARRIER 587WA-12ST ball valve is essential for controlling fluid flow in refrigeration and HVAC systems. This unit features a robust forged brass body with copper tube extensions. The full port design enables efficient flow without restrictions when fully open. Users can easily operate this valve with a simple 1/4 turn lever, making it suitable for various applications.

• Forged brass body with copper tube extensions
• Full port design for efficient flow
• Manual lever operation for precise control

Product Highlights

This ball valve is crafted for reliability and durability under various operating conditions.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 587WA-12ST

Technical Specifications

• Type: Ball Valve
• Actuation Type: 1/4 Turn
• Nominal Size: 3/4 Inch x 3/4 Inch
• End Connection: ODS x ODS
• End to End Distance: 6.56 Inch
• Ball Material: Polished Brass or Carbon Steel
• Body Material: Forged Brass
• Seal Material: Non-Stick
• Port Type: Full
• Pressure Rating: 700 PSIG (DWP)
• Applicable Standard: UL, CUL
• Port Diameter: 0.75 Inch
• Composition: Brass
• Country of Origin: USA
• Operating Temperature Range: -40°F to 325°F
• Weight: 1 lb
