CARRIER 586WA-10ST Ball Valve

Product Description

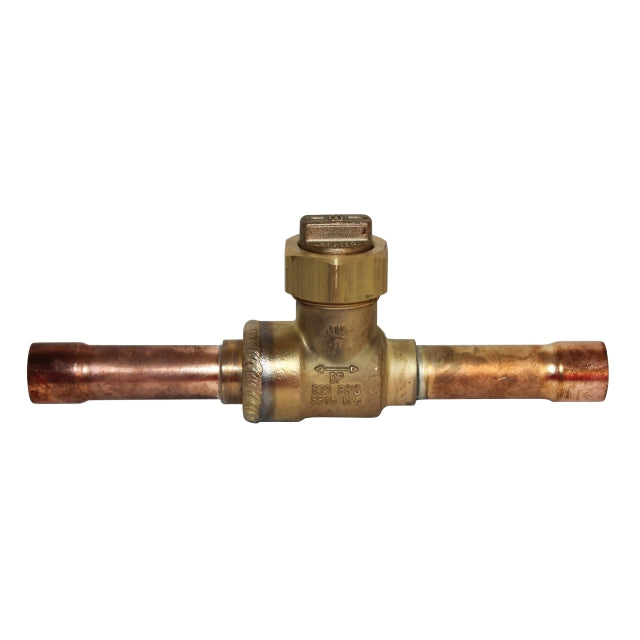

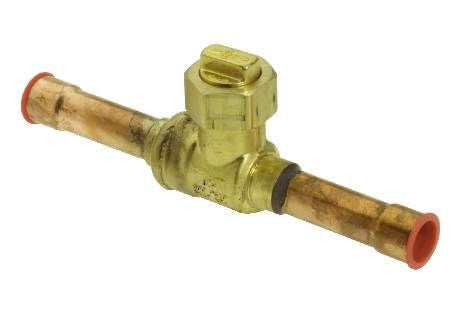

The CARRIER 586WA-10ST is a reliable ball valve designed for use with CFC, HCFC, and HFC refrigerants. This valve is built with a forged brass body and features a polished brass or carbon steel ball. It includes copper tube extensions and a seal cap for easy operation without removal. The design incorporates full-size ports to provide unrestricted flow, making it an ideal choice for refrigeration and HVAC applications.

• Suitable for CFC, HCFC, and HFC refrigerants.
• Constructed with a forged brass body.
• Designed for a maximum working pressure of 800 PSIG.

Product Highlights

This valve is built for durability and efficiency, using robotic welding technology to ensure a strong construction.

Product Information

Standard Information

• Manufacturer: Superior Refrigeration
• MPN: 586WA-10ST

Technical Specifications

• Type: Ball Valve
• Nominal Size: 5/8 Inch x 5/8 Inch
• End Connection: ODS x ODS
• Inlet Connection Size: 5/8 inches
• Outlet Connection Size: 5/8 inches
• Connection Type: ODF Solder
• Body Material: Brass
• Ball Material: Polished Brass or Carbon Steel
• Seal Material: Non-Stick
• Port Type: Full
• Actuation Type: 1/4 Turn
• Pressure Rating: 700 PSIG (DWP)
• Maximum Working Pressure: 800 PSIG
• Application: Refrigeration
• UL Listed: True
• Weight: 0.74 lb
• Width: 1.2 inches
• Height: 2.4 inches
• Length: 6.5 inches
• Operating Temperature: -40 F to +325 F (-40 C to +149 C)
