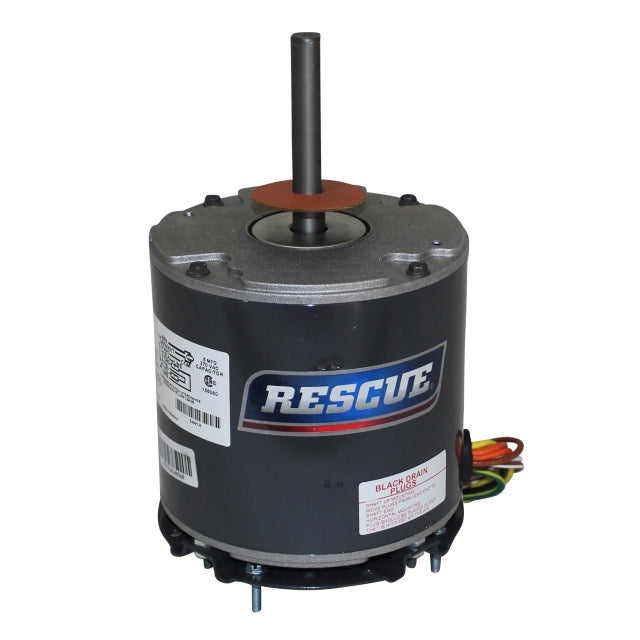

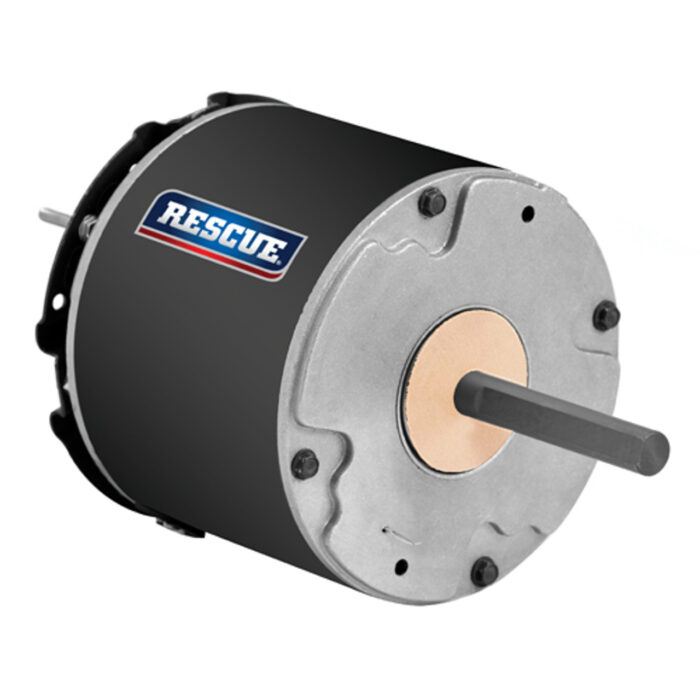

CARRIER 5441H Condenser Fan Motor

Product Description

The CARRIER 5441H is a condenser fan motor designed for residential condensing units. This single-speed motor features automatic overload protection and a totally enclosed air over enclosure. It is engineered for continuous duty operation and comes with a capacitor. The motor has thirty-six leads for connection.

• Rotation is counterclockwise (CCWLE) and reversible.
• Features stud mounting and ball bearing construction.
• Suitable for outdoor A.C. condenser fan applications.

Product Highlights

The CARRIER 5441H offers reliable performance for outdoor air conditioning condenser units, ensuring efficient operation and durability.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 5441H

Technical Specifications

• Horsepower: 1/4-1/6 hp
• Speed: 1075 rpm
• Frame Size: 42Y
• Voltage: 208-230 volts
• Current: 1.5 amps
• Motor Type: Permanent Split Capacitor Motor
• Enclosure Type: Enclosed, single speed
• Rotation: Counterclockwise (CCWLE)
• Bearing Type: Ball bearing
• Mounting Type: Stud mount
• Capacitor: Permanent split capacitor (requires 5 mfd/370 vac capacitor, included)
• Shaft Dimensions: 3 x 1/2 flat
• Motor Case Length: 5.5
• Diameter: 5.0
• Leads Length: 36 leads
• Frequency: 60 hertz
• Insulation Class: B
• Ambient Temperature: 70°C
• Thermal Overload Protection: Automatic reset
• Warranty: 1 year manufacturer warranty
• Application: Outside A.C. condenser fan motors
• Motor Phase: 1
• Shipping Height: 6.3 in
• Shipping Length: 15.1 in
• Shipping Width: 6.4 in
• Shipping Weight: 11.2 lb
• UL Listed: False
• UL Recognized: False
• Weight: 10 lbs
