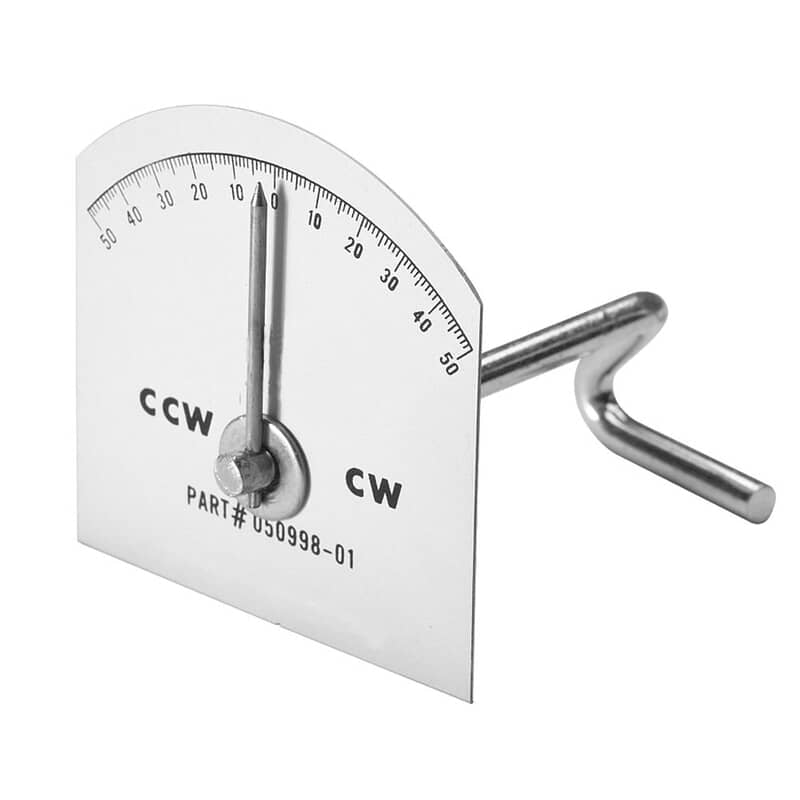

Carrier 5099801 Pitch Gauge Hvac Replacement

Product Description

The CARRIER 5099801 is a genuine OEM pitch gauge used in HVAC service and installation applications. A pitch gauge provides a reference for measuring or setting the angle and slope of drain lines, coil assemblies, or other components where proper pitch is critical to system drainage and performance. This part is sourced directly from Carrier and meets original factory specifications. HVAC technicians rely on pitch gauges to verify correct slope during installation or service calls, reducing the risk of standing water, drain blockages, and related system issues.

This pitch gauge is suited for residential and light commercial HVAC service work. It is typically used during installation or maintenance of air handling units, evaporator coil assemblies, or condensate drain systems where verifying or setting slope is required. It is a compact, single-use reference tool appropriate for field technicians servicing Carrier equipment.

Key Features

• Genuine OEM Carrier replacement part meeting original factory specifications
• Used to measure or verify pitch and slope of HVAC drain or coil components
• Compact form factor suited for field use
• Direct replacement for original Carrier pitch gauge

Compatibility

Designed as an OEM-style replacement pitch gauge for Carrier HVAC equipment. Refer to your equipment service manual or Carrier parts documentation to confirm fitment for your specific model.

Installation Notes

Installation and use of this gauge should be performed by a qualified HVAC technician familiar with Carrier equipment and industry drain and slope standards. Power down the unit and isolate the system before accessing internal components or drain assemblies. Consult the equipment service manual for proper pitch specifications applicable to the system being serviced.

Technical Specifications

• Length: 1 inch
• Width: 1 inch
• Height: 1 inch

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 5099801
