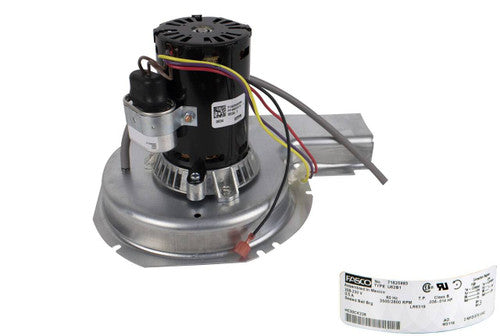

CARRIER 48XL400051-CL Draft Inducer Motor Assembly with Capacitor

Product Description

The Carrier 48XL400051-CL is a draft inducer motor assembly designed for effectiveness and reliability. This assembly comes with a capacitor and includes necessary mounting screws for easy installation. It operates at 208/230 volts and 60 hertz. The motor features dual-stage functionality, running at two speeds, with thermal protection to prevent overheating. It has sealed ball bearings for improved longevity and a durable metal housing.

• Includes draft inducer motor assembly and capacitor.
• Mounting screws are part of the package.
• Dual-speed motor with thermal protection.

Product Highlights

This motor assembly is used in HVAC applications to enhance airflow and efficiency.

Product Information

Standard Information

• Manufacturer: Fasco
• Model #: 71625993

Technical Specifications

• Fasco Motor Type: U62B1
• Horsepower: 0.036 - 0.014
• Input Voltage: 208/230
• Frequency: 60 Hz
• Current: 0.50 A
• Phase: 2 Stage
• RPM: 3500/2800
• Speeds: 2
• Thermal Protection: Yes
• Motor Cooling: Air Over
• Insulation Class: B
• Bearings: Sealed Ball
• Housing Material: Metal
• Capacitor: 2 MFD @ 370VAC
