Carrier 48VL400196 Draft Inducer Motor Assembly 208-230 Volt 1PH 3300 RPM 345585-75111

Product Description

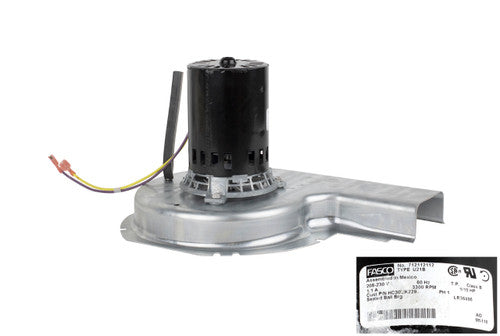

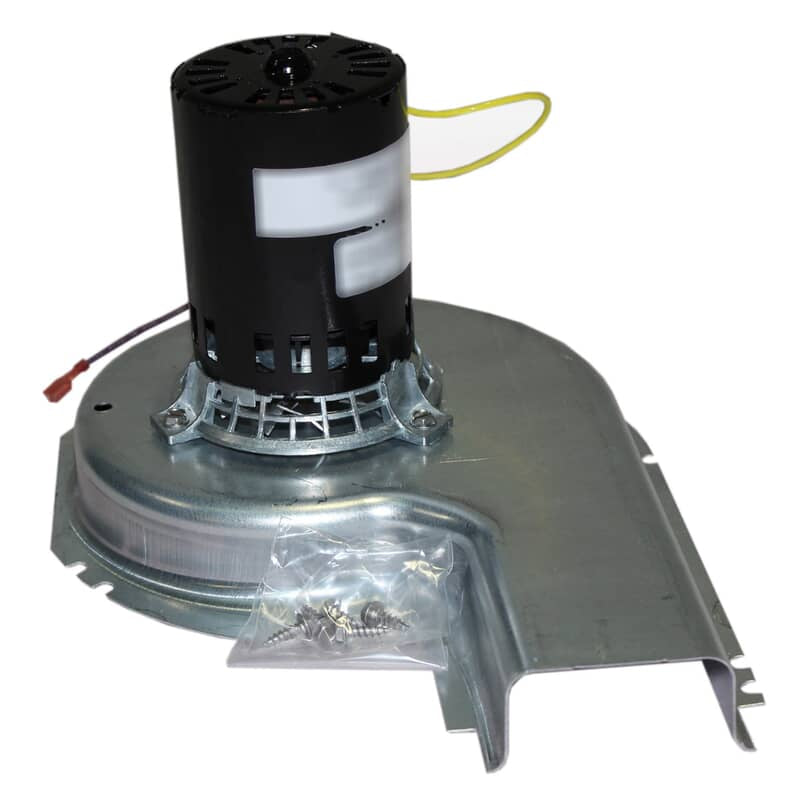

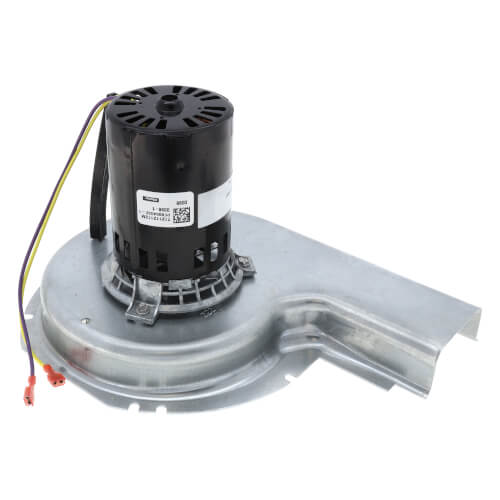

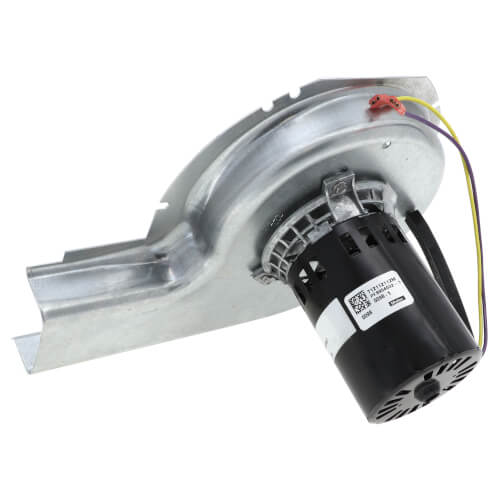

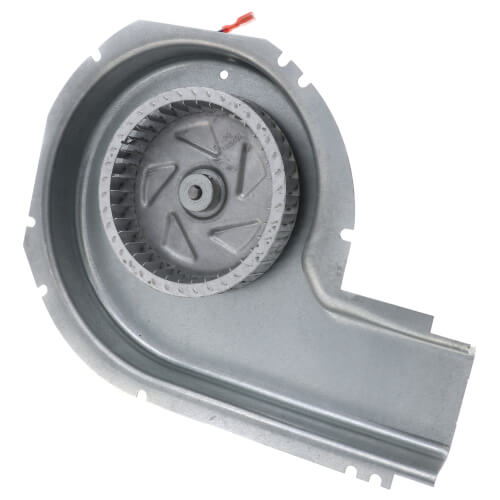

The Carrier 48VL400196 Draft Inducer Motor Assembly is a genuine OEM replacement part for HVAC systems. This motor operates at 208-230 Volt, 1 Phase, and 3300 RPM, providing essential air movement for proper ventilation and combustion. Designed for specific HVAC applications, it ensures reliable performance and is thermally protected. This assembly is a direct replacement, featuring a metal housing and sealed ball bearings.

• Genuine OEM replacement part for HVAC systems.
• Operates at 208-230 Volt, 1 Phase, and 3300 RPM.
• Includes a thermally protected motor with sealed ball bearings and metal housing.

Product Highlights

Essential component for maintaining proper ventilation and combustion in HVAC units.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 48VL400196
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Carrier HVAC
• MPN: 48VL400196
• Replacement MPN: 345585-75111
• Voltage: 208-230V
• Phase: 1PH
• RPM: 3300
• UPC: 822529347158
• Model Number: 712112112
• Motor Type: U21B
• Horsepower: 1/15
• Frequency: 60 Hz
• Amperage: 1.10 A
• Speeds: 1
• Thermally Protected: Yes
• Motor Cooling: Air Over
• Insulation Class: B
• Bearings: Sealed Ball
• Housing Material: Metal
