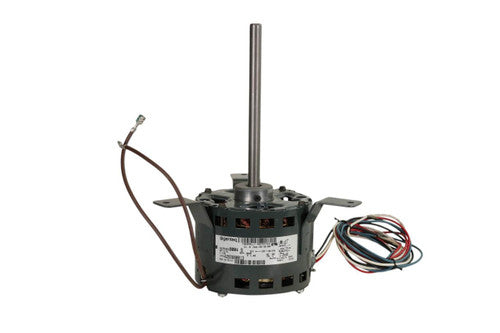

CARRIER 42SG680013 Motor 1/15 Horsepower Replacement Motor

Product Description

The CARRIER 42SG680013 is a replacement motor designed for single-phase electrical systems with a voltage of 115V. It runs at a frequency of 50/60 Hz and features a horsepower rating of 1/15. With a rotation speed of 1040 RPM in a counter-clockwise direction, this motor is essential for various HVAC applications.

• Replacement motor unit for easy installation.
• Operates efficiently at 115V and 50/60 Hz.
• Includes a 1/2 inch diameter shaft with a length of six and five-eighths inches.

Product Highlights

This motor is thermally protected and features Class B insulation, making it suitable for continuous air-over applications.

Product Information

Standard Information

• Manufacturer: Genteq
• MPN: 42SG680013

Technical Specifications

• Horsepower: 1/15
• Input Voltage: 115
• Frequency: 50/60
• Number of Phases: 1
• Current: 1.40
• RPM: 1040
• Rotation: CCW
• Capacitor Needed: 7.5MFD @ 370V
• Frame: 48
• Shaft Diameter: 1/2 inch
• Shaft Length: 6-5/8 inches
• Bearing Type: Sleeve
• Thermally Protected: Yes
• Insulation Class: B
• Continuous Air Over: Yes
