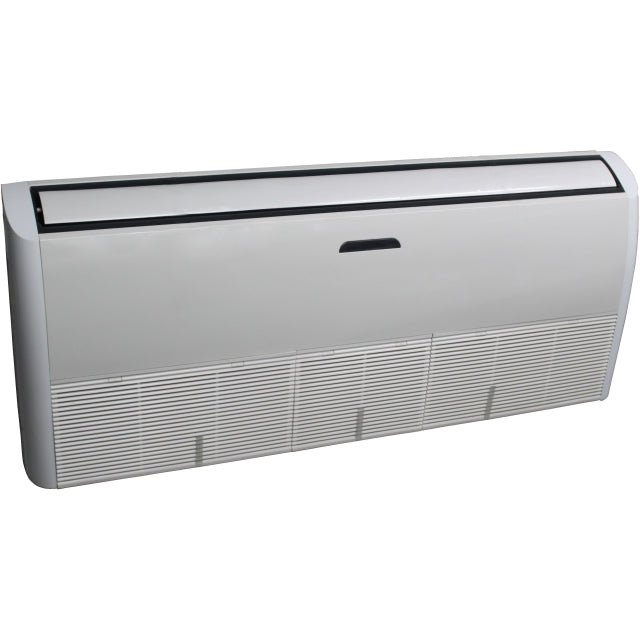

Carrier 40MBFQ36---3 Ductless Indoor Console, Performance Series, 3.0T

Product Description

The Carrier 40MBFQ36---3 ductless, single-zone heat pump from the Performance Series offers a balance of energy savings and comfort. Designed as a key component for single or multi-zone comfort systems, the 40MBFQ floor console delivers quiet heating and cooling. It features a temperature-sensing handheld remote and customized control with three fan speeds.

• Includes Cool, Heat, Dry, Fan, and Auto modes.
• Features auto-restart and sleep mode.
• Equipped with anti-corrosive fin coating.

Product Highlights

This console heat pump is suitable for new or remodeled spaces, offering customized comfort and energy efficiency.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 40MBFQ36---3
• Country of Origin: CHN

Technical Specifications

• MfgNum: 40MBFQ36---3
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Mini-Splits
• SubSubCat: Indoor
• ItemNum: 40MBFQ36---3
• Vendor Name: Carrier
• Brand: Carrier
• Family: Performance
• Line Voltage (60Hz): 240V
• Refrigerant: R-410A
• Suction Line Size: 5/8"
• Frequency: 60
• Height: 9.25 in
• Length: 26.57 in
• Liquid Line Size: 3/8 in
• MCA: 1
• Motor Phase: 1
• Outside Air Connection: False
• Rated Current: 11.86 amp
• Size: 36
• Sound Level: 43 dBA
• UL Listed: False
• UL Recognized: False
• Voltage: 208-230 VAC
• Weight: 69 lb
• Width: 50.59 in
• Wired Control Available: True
• Wired Control Included: False
• Wireless Control Included: True
• AHRI - Usage: Indoor AHU
• Blower Motor HP: 39/250
• Blower Motor RPM: 1,350
• Blower Motor Speeds: 3
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Blower Motor Watts: 115
• CFM: 638-1,037
• Cooling Capacity: 36,000
• Cooling Rated Capacity Btu/h: 36000
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 1"
• EER: 9
• Energy Star Rated: false
• Equipment Type: Heat Pump
• Heating Capacity: 23,000
• Liquid Line Size (OD): 3/8"
• Mounting Type: Floor Console
• OPT Code: 1P40MBFQ36---3
• Phase: Single
• Product Family: 40MBFQ
• Prop 65: true
• Remote Control Included: true
• SEER: 18
• Sound Level (dBA): 43-54
• Substantial Commodity: Steel; Copper; Aluminum
• Suction Line Size (OD): 5/8"
• Tier: Standard
• Tonnage: 3
• UOM: EA
• Liquid Line Fitting Type: Flare
• Suction Line Fitting Type: Flare
• Cubic Measurement: 11.3447
• Country of Origin: CHN
• Multi Zone: false
• Evaporator Coil Fins per Inch (FPI): 19
• Approvals: ETL Listed
