Carrier 40MBDQ58---3 ducted indoor heat pump Performance Series 5.0T

Product Description

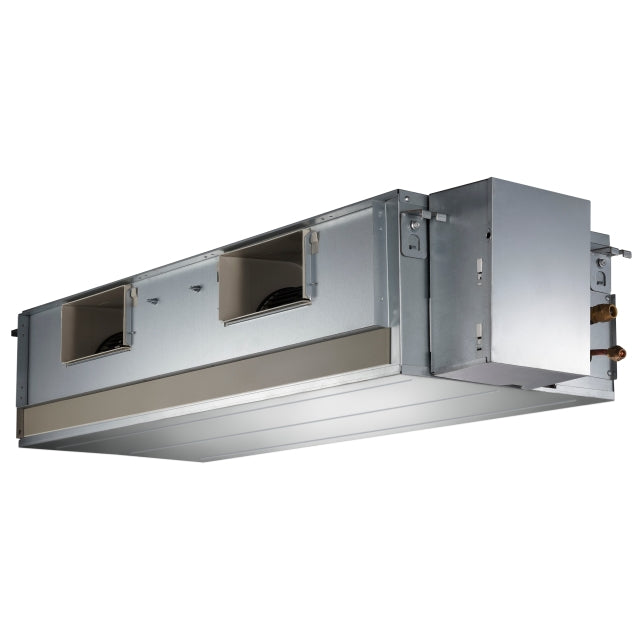

The CARRIER 40MBDQ58---3 is a ducted indoor unit from the Performance Series, designed for single-zone heat pump systems. It fits in-ceiling, under-the-floor, or vertically in the wall, suitable for single or multi-zone ductless systems. Features include multiple modes (Cool, Heat, Dry, Fan, Auto), vertical or horizontal installation, and quiet indoor operation. A wireless remote controller is included.

• Offers Cool, Heat, Dry, Fan, and Auto modes.
• Designed for vertical or horizontal installation with rear or bottom return.
• Includes a condensate lift pump and anti-corrosive fin coating.

Product Highlights

This ducted indoor unit provides flexible installation options and customized comfort with multiple fan speeds and a temperature-sensing handheld remote.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 40MBDQ58---3

Technical Specifications

• MfgNum: 40MBDQ58---3
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Mini-Splits
• SubSubCat: Indoor
• ItemNum: 40MBDQ58---3
• Vendor Name: Carrier
• Maximum CFM: 1260-2150 CFM
• EER: 10
• AHRI Certificate Number: 201847014
• HSPF: 9
• SEER1 (Efficiency): 18-20
• Controller: Wireless Included
• Electrical: 208/230V 1 Phase 60Hz
• Minimum Line Set Length: 10
• Maximum Line Set Length: 213'
• Drain: 1"
• BTU/Tonnage: 60,000 BTU/5 Ton
• Cooling BTU: 57,000 BTU
• Energy Star: No
• Heating BTU: 62,000 BTU
• Liquid Line: 3/8"
• Refrigerant: R410A
• Amperage Requirement: 50A
• Brand/Manufacturer: Carrier
• Suction Line: 3/4"
• Phase: Single Phase
• Mini Split Type: Concealed Duct
• Max Breaker Size: 50 Amps
• Min. Breaker Size: 35 Amps
• Tonnage: 5 Ton
• Min/Max Outdoor Temp for Cooling: -13°F-122°F
• Min/Max Outdoor Temp for Heating: -22°F-86°F
• Refrigerant Charge: Pre-charged for: 26'
• Zone Compatibility: Single Zone
• System Tonnage: 5 Ton
• Brand: Carrier
• Family: Performance
• Line Voltage (60Hz): 240V
• Blower Motor Speeds: 3
• Motor Phase: 1
• Outside Air Connection: True
• Package Quantity: 1 ea
• Rated Current: 11.86 amp
• Sound Level: 51 dBA
• Voltage: 208/230
• Wired Control Available: True
• Wired Control Included: False
• Wireless Control Included: True
• MPN: 40MBDQ58 3
• Alternate Part #: CAR-40MBDQ58---3
• Length: 33.78 in
• Width: 55.12 in
• Height: 17.32 in
