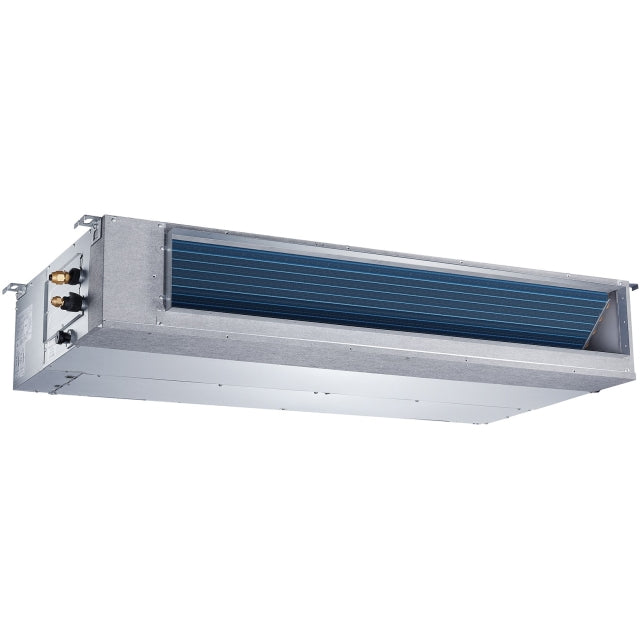

Carrier 40MBDQ24---3 Ductless Indoor Ducted, Performance Series, 2.0T

Product Description

The Carrier 40MBDQ24---3 ductless, single-zone heat pump from the Performance™ Series offers a balance of energy savings and comfort. Designed for in-ceiling, under-the-floor, or vertical wall installation, it fits single or multi-zone ductless systems. Features include a temperature-sensing handheld remote and three fan speeds. Modes include Cool, Heat, Dry, Fan, and Auto.

• Vertical or Horizontal Installation
• Condensate Lift pump included
• Quiet indoor operation

Product Highlights

This Carrier ductless system provides customized comfort with multiple fan speeds and installation options for single or multi-zone applications.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 40MBDQ24---3
• Country of Origin: CHN

Technical Specifications

• MfgNum: 40MBDQ24---3
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Mini-Splits
• SubSubCat: Indoor
• ItemNum: 40MBDQ24---3
• Vendor Name: Carrier
• Brand: Bryant®, Carrier®
• Family: Performance
• Line Voltage (60Hz): 240V
• Refrigerant: R-410A
• Suction Line Size: 5/8"
• Tonnage: 2
• Blower Motor Speeds: 3
• Height: 30.47
• Length: 9.8
• Liquid Line Size: 3/8 in
• Motor Phase: 1
• Outside Air Connection: True
• Package Quantity: 1 ea
• Sound Level: 35-44
• Voltage: 208-230 VAC
• Weight: 87 lb
• Width: 43.31
• Wired Control Available: True
• Wired Control Included: True
• Wireless Control Included: True
• AHRI - Usage: Indoor AHU
• Blower Motor HP: 27/100
• Blower Motor RPM: 1,300
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Blower Motor Watts: 160
• CFM: 440-780
• CFM Heating: 553-955
• Cooling Capacity: 24,000
• Cooling Rated Capacity Btu/h: 24000
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 1"
• EER: 9.5
• Energy Star Rated: true
• Equipment Type: Heat Pump
• Heating Capacity: 24,000
• Liquid Line Size (OD): 3/8"
• Mounting Type: Concealed Ducted
• OPT Code: 1P40MBDQ24---3
• Phase: Single
• Product Family: 40MBDQ
• Prop 65: true
• Remote Control Included: true
• SEER: 20.5
• Tier: Performance™
• UOM: EA
• Liquid Line Fitting Type: Flare
• Suction Line Fitting Type: Flare
• Country of Origin: CHN
• Blower Wheel Diameter: 7 87/100"
• Blower Wheel Width: 7 9/10"
• Multi Zone: true
• Metering Device: EEV - Electronic Expansion Valve
• Evaporator Coil Fins per Inch (FPI): 16
• Approvals: ETL Listed
