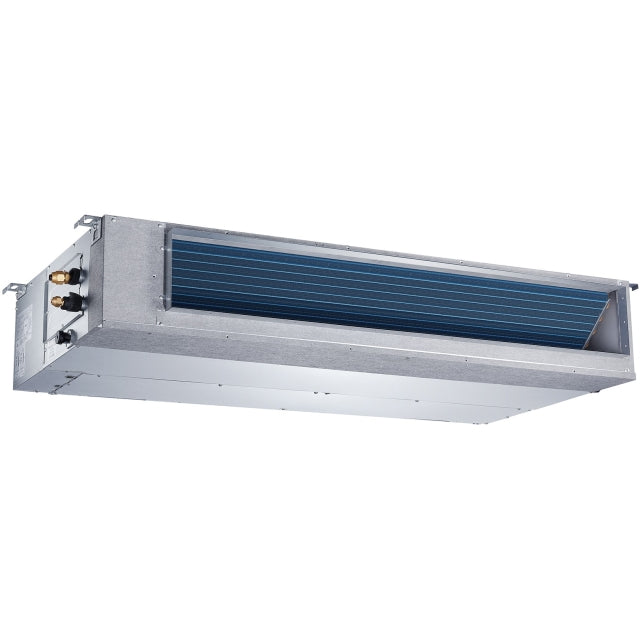

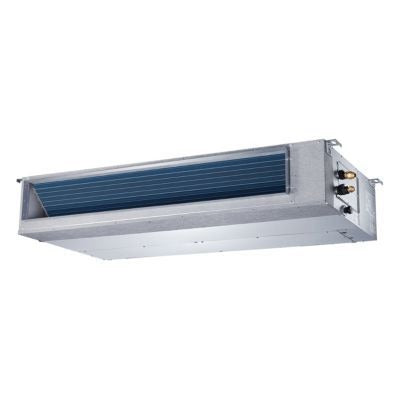

Carrier 40MBDQ18---3 Ductless Indoor Ducted, Performance Series, 1.5T

Product Description

The CARRIER 40MBDQ18---3 is a ductless, single-zone heat pump from the Performance Series. Designed for in-ceiling, under-the floor or vertically in the wall, it's perfect for either a single or multi-zone ductless system. It offers customized comfort with three available fan speeds and includes a temperature-sensing handheld remote.

• Features Cool, Heat, Dry, Fan, and Auto modes.
• Suitable for Vertical or Horizontal Installation with Rear or Bottom Return.
• Includes a Wireless Remote Controller and an Optional Wired Remote Controller with Timer Function.

Product Highlights

This ducted indoor unit provides quiet operation and includes an anti-corrosive fin coating for lasting performance.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 40MBDQ18---3
• Country of Origin: CHN

Technical Specifications

• MfgNum: 40MBDQ18---3
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Mini-Splits
• SubSubCat: Indoor
• ItemNum: 40MBDQ18---3
• AHRI - Usage: Indoor AHU
• Blower Motor HP: 27/100
• Blower Motor RPM: 1,300
• Blower Motor Speeds: 3
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Blower Motor Watts: 160
• Brand: Carrier
• CFM: 300-480
• CFM Heating: 365-557
• Cooling Capacity: 18,000
• Cooling Rated Capacity Btu/h: 18000
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 1"
• EER: 12.5
• Energy Star Rated: true
• Equipment Type: Heat Pump
• Heating Capacity: 18,000
• Liquid Line Size (OD): 1/4"
• Mounting Type: Concealed Ducted
• OPT Code: 1P40MBDQ18---3
• Phase: Single
• Product Family: 40MBDQ
• Prop 65: true
• Refrigerant: R-410A
• Remote Control Included: true
• SEER: 20
• Sound Level (dBA): 35-39
• Substantial Commodity: Steel; Copper; Aluminum
• Suction Line Size (OD): 1/2"
• Tier: Performance™
• Tonnage: 1.5
• Voltage: 208-230 VAC
• Liquid Line Fitting Type: Flare
• Suction Line Fitting Type: Flare
• Height: 8.27 in
• Length: 26.54 in
• Width: 34.65 in
• Country of Origin: CHN
• Blower Wheel Diameter: 6.86 in
• Blower Wheel Width: 6.22 in
• Multi Zone: true
• Metering Device: EEV - Electronic Expansion Valve
• Evaporator Coil Fins per Inch (FPI): 16
• Approvals: ETL Listed
• Motor Phase: 1
• Outside Air Connection: True
• Wired Control Available: True
• Wired Control Included: True
• Wireless Control Included: True
