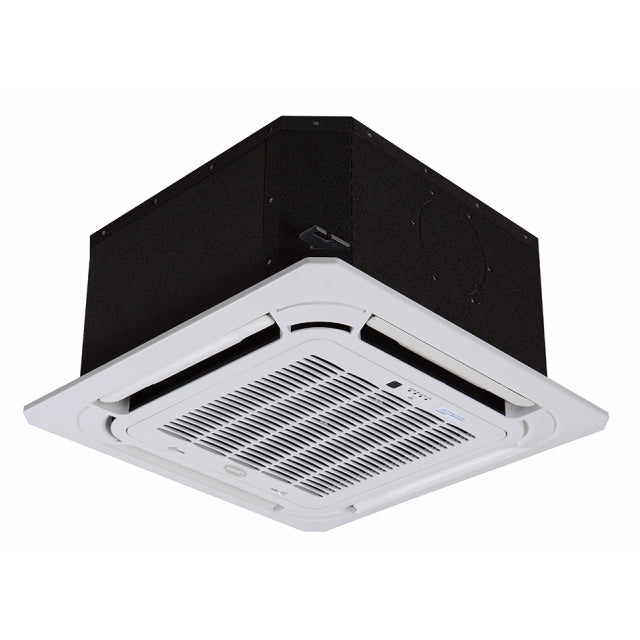

Carrier 40MBCQ09---3 Ductless Indoor Cassette, Performance Series, 208/230V, 0.75T

Product Description

The Carrier 40MBCQ09---3 is a ductless, single-zone heat pump from the Performance Series. This 208/230V cassette unit blends into overhead spaces, delivering quiet and efficient comfort. It features a temperature-sensing handheld remote and offers customized control with three fan speeds. Ideal for new or remodeled spaces, it complements single or multi-zone ductless systems.

• Modes: Cool, Heat, Dry, Fan, Auto
• Louver Control (Fixed or Swing)
• Built-in condensate Lift pump

Product Highlights

Offers versatile comfort with quiet operation and a temperature-sensing remote for single or multi-zone systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 40MBCQ09---3
• Country of Origin: CHN

Technical Specifications

• MfgNum: 40MBCQ09---3
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Mini-Splits
• SubSubCat: Indoor
• ItemNum: 40MBCQ09---3
• Vendor Name: Carrier
• Brand: Carrier
• Family: Performance
• Line Voltage (60Hz): 240V
• Refrigerant: R410A
• Suction Line Size: 3/8"
• Tonnage: 0.75
• Frequency: 60
• Height: 10.24 in
• Length: 25.47 in
• Liquid Line Size: 1/4 in
• Motor Phase: 1
• Outside Air Connection: True
• Package Quantity: 1 ea
• Rows: 1
• Size: 9
• Sound Level: 34 dBA
• Voltage: 208-230 VAC
• Width: 25.47 in
• Wired Control Available: True
• Wired Control Included: False
• Wireless Control Included: True
• AHRI - Usage: Indoor AHU
• Blower Motor HP: 61/1000
• Blower Motor RPM: 960
• Blower Motor Speeds: 3
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Blower Motor Watts: 45
• CFM: 260-380
• Cooling Capacity: 2,850-11,100
• Cooling Rated Capacity Btu/h: 9000
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 1"
• EER: 13
• Energy Star Rated: false
• Equipment Type: Heat Pump
• Heating Capacity: 9,800-11,800
• Liquid Line Size (OD): 1/4"
• Mounting Type: Ceiling Cassette
• OPT Code: 1P40MBCQ09---3
• Phase: Single
• Product Family: 40MBCQ
• Prop 65: true
• Remote Control Included: true
• SEER: 20
• Sound Level (dBA): 34-44
• Substantial Commodity: Steel; Copper; Aluminum
• Suction Line Size (OD): 3/8"
• Tier: Performance™
• Liquid Line Fitting Type: Flare
• Suction Line Fitting Type: Flare
• Multi Zone: true
• Evaporator Coil Fins per Inch (FPI): 19
• Approvals: ETL Listed
