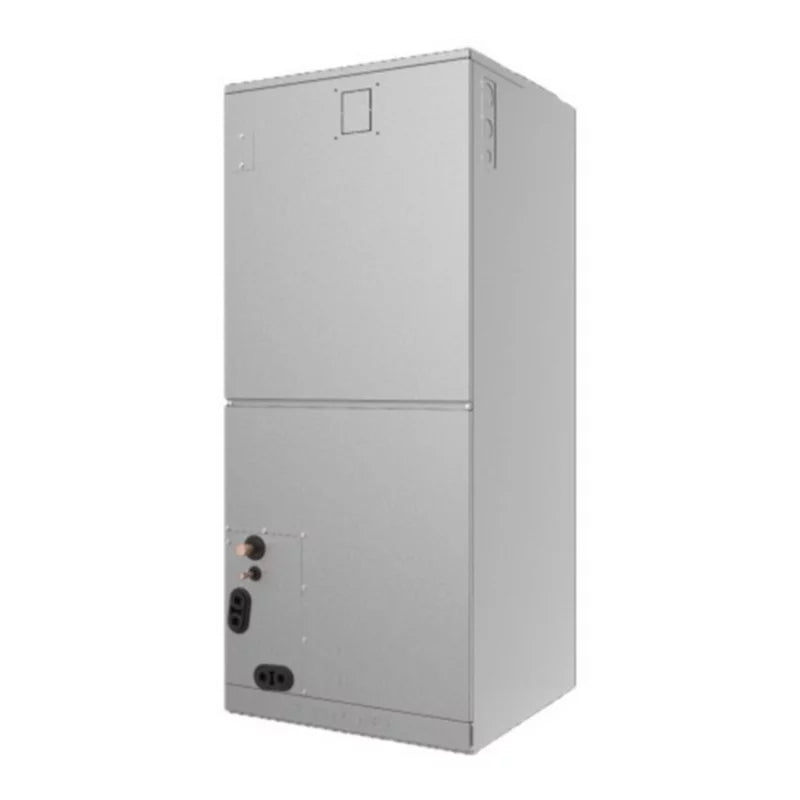

Carrier 40mbabq24xb3 Ductless Fan Coil Unit 24000 Btu/h

Product Description

The CARRIER 40mbabq24xb3 is a 2-ton ductless fan coil unit designed for multi-position ducted installation in split heat pump systems. Rated at 24,000 BTU/h for both cooling and heating, it operates on R-410A refrigerant and runs on 208-230 VAC single-phase, 60 Hz power. The unit uses an ECM blower motor rated at 1/3 HP and 550 RPM, delivering airflow between 629 and 824 CFM across four speeds. With a SEER rating of 18-20 and a sound level range of 32.2-42.5 dBA, this coil is built for efficient, quiet performance in residential and light commercial ductless installations. A licensed HVAC technician handles the refrigerant connections and electrical hookup.

This fan coil unit is suited for ducted multi-position ductless heat pump applications where a compact air handler is needed in place of a traditional air handler. It supports multi-zone configurations and is compatible with sweat or braze refrigerant line connections using a 3/8-inch liquid line and a 5/8-inch suction line. Typical installations include new construction and retrofit projects in residential settings where quiet, efficient zone heating and cooling are priorities. The unit ships in gray and includes a remote control.

Key Features

• 24,000 BTU/h cooling and heating capacity on R-410A refrigerant
• ECM blower motor at 1/3 HP, 550 RPM, with four selectable speeds
• Airflow range of 629-824 CFM to match duct and load requirements
• SEER rating of 18-20 for high-efficiency zone conditioning
• Ducted multi-position mounting supports flexible installation orientations
• Multi-zone capable with sweat or braze refrigerant line fittings
• ETL Listed for safety compliance

Compatibility

Part of the Carrier 40MBAB product family, also marketed under the Bryant and Payne brands. Designed for use in ducted ductless split heat pump systems requiring a 2-ton multi-position fan coil unit with R-410A refrigerant and 208-230 VAC single-phase power.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle R-410A refrigerant under EPA Section 608 requirements. Disconnect and lock out all electrical power before beginning any wiring or refrigerant line work. Refrigerant line connections are sweat or braze type; follow standard brazing procedures and pressure-test the system before charging. Verify drain line pitch and connection integrity at the 3/4-inch drain port before startup.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• Heating Capacity: 24,000 BTU/h
• Tonnage: 2 tons
• SEER: 18-20
• Voltage: 208-230 VAC
• Phase: Single
• Frequency: 60 Hz
• Refrigerant: R-410A
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Blower Motor HP: 1/3 HP
• Blower Motor RPM: 550
• Blower Motor Speeds: 4
• CFM Range: 629-824 CFM
• CFM Heating: 824 CFM
• Sound Level: 32.2-42.5 dBA
• Liquid Line Size (OD): 3/8 inches
• Suction Line Size (OD): 5/8 inches
• Liquid Line Fitting Type: Sweat or Braze
• Suction Line Fitting Type: Sweat or Braze
• Drain Connection Size: 3/4 inches
• Evaporator Coil Fins per Inch: 20 FPI
• Mounting Type: Ducted Multi-Position
• Cooling Stages: 1
• Heating Stages: 1
• Multi-Zone: Yes
• Color: Gray
• Length: 21 inches
• Width: 17.5 inches
• Height: 45 inches
• Weight: 106.7 pounds
• Approvals: ETL Listed
• Country of Origin: China

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 40mbabq24xb3
