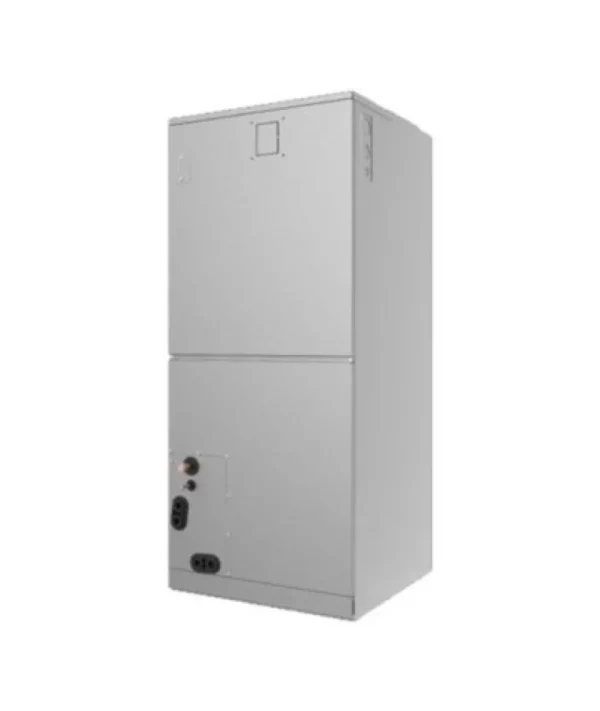

Carrier 40MBAAQ48XA3 Ductless Indoor Air Handler, Performance Series, 4.0T

Product Description

The CARRIER 40MBAAQ48XA3 ductless indoor air handler is a Performance Series, single-zone heat pump that easily connects with traditional ducted systems or replaces outdated gas furnaces. It features a variable-speed ECM motor and can be installed in four different positions for maximum flexibility. Compatible with 38MA*R, 38MGR, and 38MBRB outdoor units.

• Single-zone Heat Pump
• Install in four different positions for maximum flexibility
• Variable-speed ECM motor

Product Highlights

This Carrier air handler offers versatile installation and efficient performance for both new and existing HVAC systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 40MBAAQ48XA3

Technical Specifications

• MfgNum: 40MBAAQ48XA3
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Mini-Splits
• SubSubCat: Indoor
• ItemNum: 40MBAAQ48XA3
• Vendor Name: Carrier
• Voltage: 208/230V
• Capacity: 4.0T
• Brand: Carrier
• Line Voltage (60Hz): 240V
• Refrigerant: R410A
• Suction Line Size: 5/8"
• Tonnage: 4.0
• Blower Motor Type: ECM
• Height: 48.8 in
• Length: 21 in
• Liquid Line Size: 3/8 in
• Motor Phase: 1
• Package Quantity: 1 ea
• Sound Level: 0 dBA
• Weight: 144.8 lb
• Width: 19.6 in
• Dimensions: 21 × 19.6 × 48.2 in
