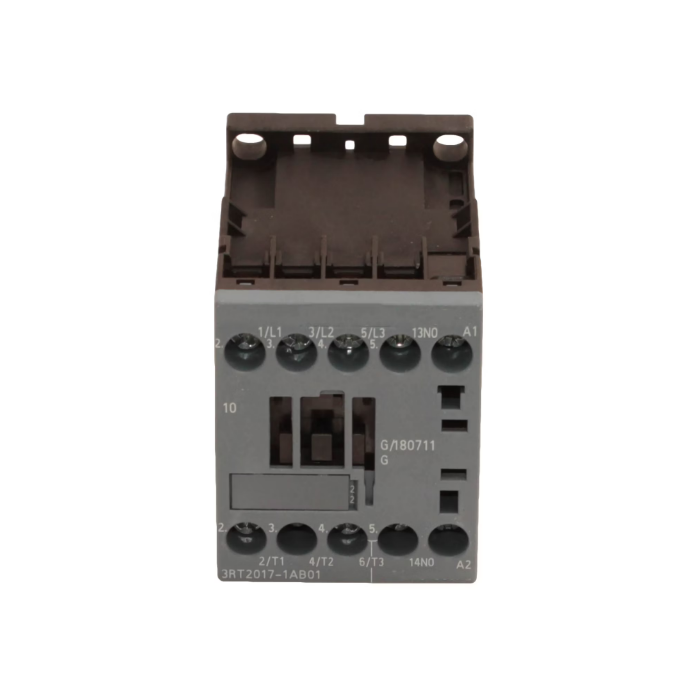

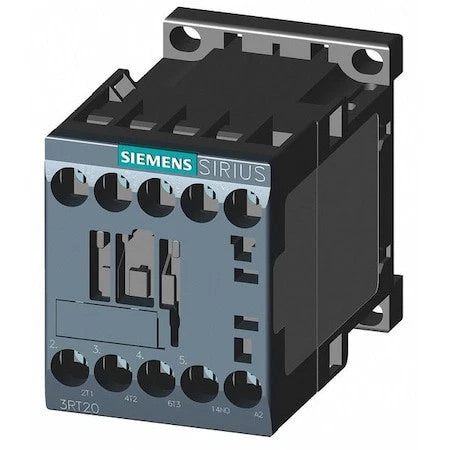

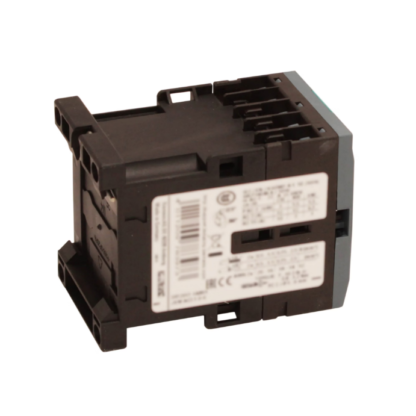

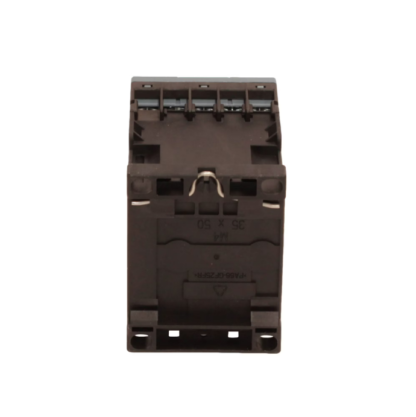

CARRIER 3RT20161AB01 IEC Magnetic Contactor

Product Description

The CARRIER 3RT20161AB01 is an IEC magnetic contactor suitable for electrical switching applications. This unit operates with a coil voltage of twenty-four volts AC and features a three-pole design. It can handle inductive loads with a full load current of nine amperes and supports resistive loads up to twenty-two amperes. An auxiliary contact with a one normally open (1NO) configuration is included. The contactor is intended for non-reversing setups and is equipped with screw terminals for easy electrical connections. It can be mounted on a DIN rail or directly on surfaces. The frame size is S00, part of the SIRIUS 3RT20 series. Its overall dimensions are one point nine five inches in height and two point four inches in width.

• Designed for electrical switching with a 24V AC coil.
• Accommodates up to 9A for inductive and 22A for resistive loads.
• Versatile mounting options available.

Product Highlights

Product Information

Standard Information

• Brand: CARRIER
• MPN: 3RT20161AB01

Technical Specifications

• Coil Voltage: 24V AC
• Number of Poles: 3
• Full Load Current - Inductive: 9A
• Full Load Current - Resistive: 22A
• Mounting Style: DIN Rail, Surface
• Frame Size: S00
• Overall Height: 1.95 in
• Overall Width: 2.4 in
