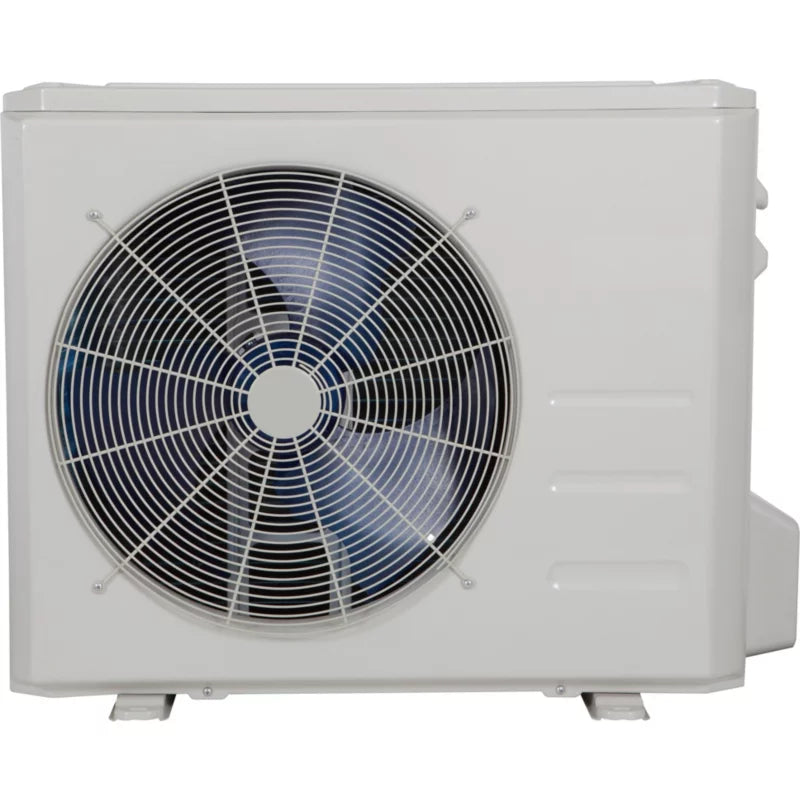

Carrier 38mpraq18aa3 Heat Pump Condenser 18000 Btu/h 28.2 Seer

Product Description

The CARRIER 38mpraq18aa3 is an 18,000 BTU/h single-zone ductless heat pump condensing unit rated up to 28.2 SEER, designed for high-efficiency residential and light-commercial cooling and heating applications. It operates on R-410A refrigerant and runs on 208-230 VAC single-phase, 60 Hz power. The unit uses a rotary compressor paired with an ECM condenser fan motor, delivering precise capacity control in both cooling and heating modes. High Heat capability allows the system to maintain 18,000 BTU/h output down to 5 degrees F outdoor ambient, making it suitable for cold-climate installations. ENERGY STAR rated. Licensed HVAC technicians handle installation and commissioning.

This condensing unit is engineered for single-zone ductless mini-split applications in residential and light-commercial settings. It pairs with a compatible indoor air handler as part of the 38MPRA product family. Typical installations include bedroom suites, additions, sunrooms, offices, and other spaces where zoned comfort control is needed. The Electronic Expansion Valve (EEV) metering device enables accurate refrigerant flow management across a wide range of operating conditions. Maximum piping length is 98 feet and maximum piping height is 65 feet, supporting a variety of installation layouts.

Key Features

• 18,000 BTU/h cooling and heating capacity with single-stage operation
• Up to 28.2 SEER and 14.5 EER efficiency ratings — ENERGY STAR certified
• High Heat capable: maintains rated heating output at 5 degrees F outdoor ambient
• ECM condenser fan motor with 3 speeds (850-1,050 RPM) and 2,236 CFM airflow
• Electronic Expansion Valve (EEV) for precise refrigerant metering
• Flare connections on both liquid line (3/8 inch OD) and suction line (5/8 inch OD)
• ETL Listed and UL Listed; R-410A refrigerant

Compatibility

Designed for single-zone ductless mini-split systems within the Carrier and Bryant 38MPRA product family. Pair with a compatible indoor air handler per manufacturer documentation. Specific indoor unit compatibility should be confirmed against Carrier and Bryant product matching guides before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding EPA Section 608 certification for R-410A refrigerant handling. Disconnect and lock out all electrical power before beginning any work on the unit. Observe the maximum piping length and height limits to avoid refrigerant distribution issues, and verify that the circuit protection does not exceed the Maximum Overcurrent Protection (MOCP) of 30 amps as required by the NEC. Do not operate the unit without verifying refrigerant charge and system pressures per manufacturer startup procedures.

Technical Specifications

• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 18,000 BTU/h
• Heating Capacity at 5 degrees F: 18,000 BTU/h
• SEER: 28.2
• EER: 14.5
• Tonnage: 1.5 tons
• Voltage: 208-230 VAC
• Phase: Single
• Cycle: 60 Hz
• Rated Load Amps (RLA): 13.1 amps
• Rated Current Amps (RCA): 0.6 amps
• Maximum Overcurrent Protection (MOCP): 30 amps
• Refrigerant: R-410A
• Refrigerant Charge: 5.7 lbs
• Compressor Type: Rotary
• Metering Device: Electronic Expansion Valve (EEV)
• Condenser Motor Type: ECM (Electronically Commutated Motor)
• Condenser Motor HP: 39/125
• Condenser Motor RPM: 850-1,050
• Condenser Motor Speeds: 3
• Condenser Fan CFM: 2,236
• Cooling Stages: 1
• Heating Stages: 1
• HVAC Zones: 1
• Liquid Line Fitting Type: Flare
• Liquid Line Size (OD): 3/8 inch
• Suction Line Fitting Type: Flare
• Suction Line Size (OD): 5/8 inch
• Maximum Piping Length: 98 feet
• Maximum Piping Height: 65 feet
• Length: 16.14 inches
• Width: 37.24 inches
• Height: 31.89 inches
• Weight: 135.4 pounds
• Color: White
• Certifications: ETL Listed, UL Listed, ENERGY STAR
• Country of Origin: China

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 38mpraq18aa3
