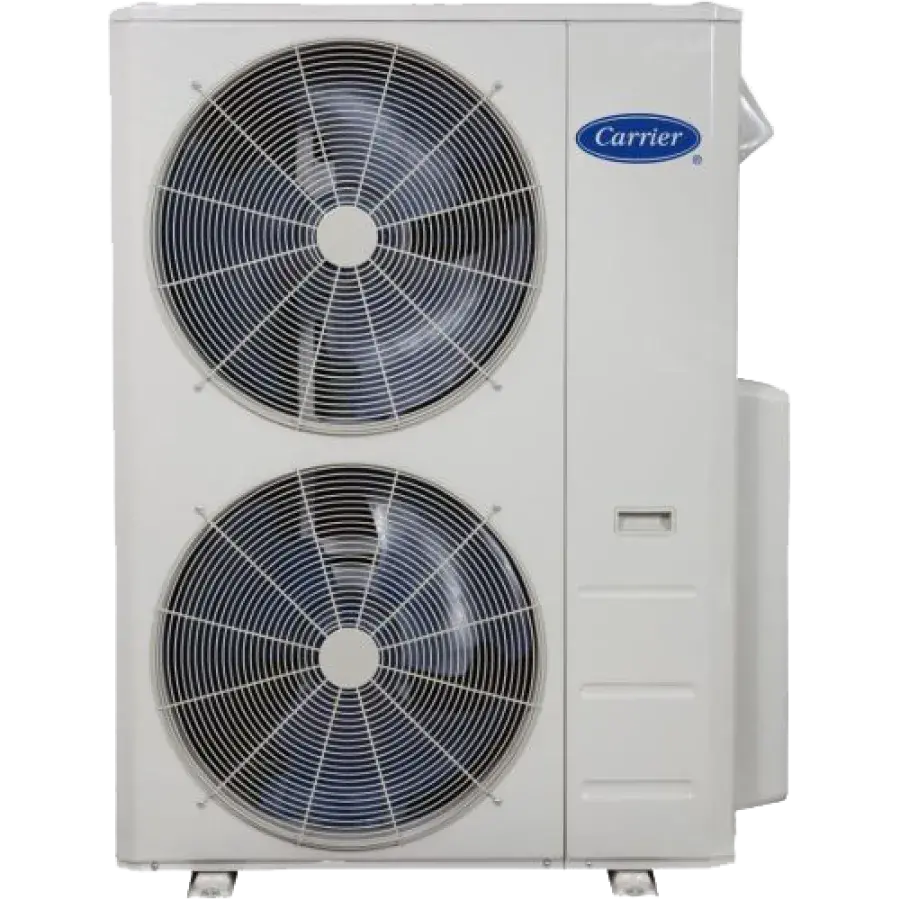

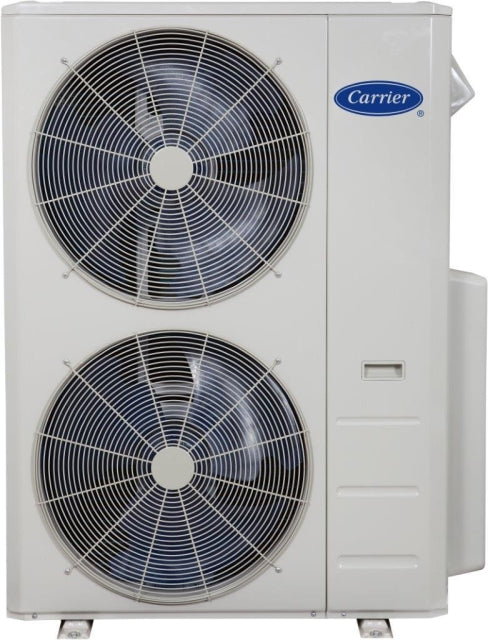

Carrier 38MGRBQ48EA3 Ductless Heat Pump, Performance Series, Multi-zone, 4.0T

Product Description

The Carrier 38MGRBQ48EA3 is a multi-zone heat pump from the Performance Series, designed for customizable indoor comfort. This outdoor unit features a built-in base pan heater and auto-restart function. It operates quietly, as low as 59 dB(A), and has an anti-corrosive fin coating. It supports 2 to 5 indoor heads with piping lengths from 131-328 ft.

• Cost competitive
• Built-in base pan heater
• Auto-restart function
• Quiet outdoor operation, as low as 59 dB(A)

Product Highlights

This Carrier multi-zone heat pump offers improved performance and quiet operation for customizable comfort in multiple zones.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 38MGRBQ48EA3
• Country of Origin: United States

Technical Specifications

• MfgNum: 38MGRBQ48EA3
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Mini-Splits
• SubSubCat: Outdoor
• ItemNum: 38MGRBQ48EA3
• Vendor Name: Carrier
• Brand: Carrier
• Refrigerant: R410A
• Inverter: False
• UL Listed: False
• UL Recognized: False
• Mfg Part #: 38MGRBQ48EA3
• Tier: Performance
• Capacity (BTUH): 48,000
• Unit Function: Heat Pump
• Unit Type: Outdoor
• Volts-Phase: 208/230-1
• Product Category: Central Air Conditioners and Air Source Heat Pumps
• Model Name: Heat pump
• Outside Model: 38MGRBQ48EA3
• Hspf (region Iv): 11
• Rated Heating Capacity (btu/hour): 48000
• Ahri / Verification Reference: 207642895
• Product Group: CcASHP
• Ahri Classification: 207642894
• Series Name/product Line (if Applicable): Performance Series
• Seer: 22.4
• Coefficient Of Performance (cop) At -15 C (5 F) (at Maximum Capacity): 22.4
• Capacity Maintenance % (max -15c/5f Rated 8.3c/47f): 48000
• Hspf (region V): 9.57
• Rated Cooling Capacity (btu/hour): 49000
• Indoor Type/ducting Configuration: Multi-split
• Model Status: Non-ducted Indoor Units
• Phase: Single-phase
• Small Duct High Velocity: No
• Type Of System: Ducted Indoor System
• Cooling Capacity (kw): 14.36
• Cooling Capacity (btu/h): 49000
• Heating Capacity (kw): 14.65
• Heating Capacity (btu/h): 50000
• Off Mode Power (w): 30
• Eer: 10.1
• Hspf Region 5: 10
• Hspf Region 4: 11.5
• Seer2: 23.4
• Non Ducted SEER in Btu W h: 22.4
• Ducted SEER in Btu W h: 20.5
• Ducted Non Ducted SEER in Btu W h: 21.45
• Non Ducted HSPF in Btu W h: 11.0
• Ducted HSPF in Btu W h: 11.5
• Ducted Non Ducted HSPF in Btu W h: 11.25
• Non Ducted EER in Btu W h: 12.5
• Ducted EER in Btu W h: 10.1
• Ducted Non Ducted EER in Btu W h: 11.3
• Average Off Mode Power Consumption Watts: 30.0
• Cooling Capacity Btu h: 48000.0
• All Refrigerant Types Acceptable for Use with this Rated Combination Optional: R-410A
• Is the Certification for this Basic Model Based on a Waiver of DOE s Test Procedure Requirements: No
• Is the Certification based upon any Exception Relief from an Applicable Standard by DOE s Office of Hearing and Appeals: No
• Indoor Unit Brand Name s: CARRIER
• Non Ducted SEER: 22.4
• Ducted SEER: 20.5
• Mixed SEER: 21.45
• Non Ducted HSPF: 11
• Ducted HSPF: 11.5
• Mixed HSPF: 11.25
