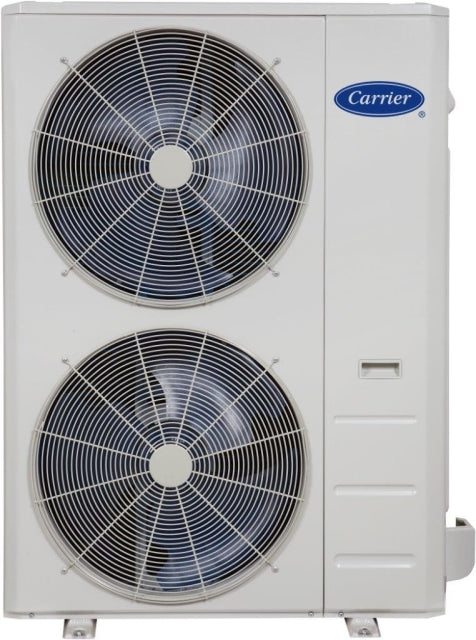

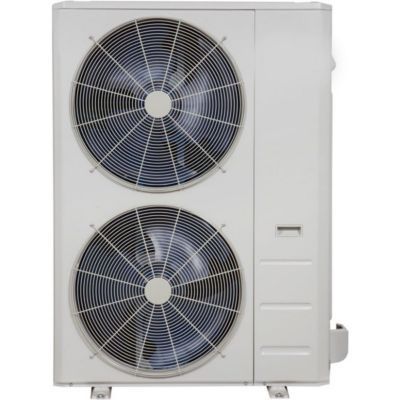

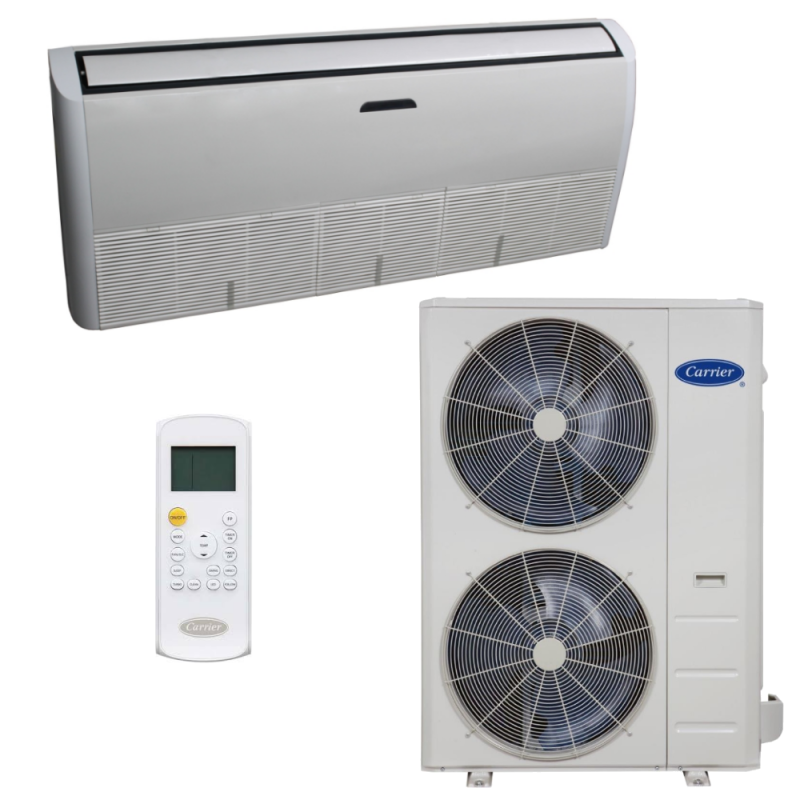

Carrier 38MBRQ58A--3 58,000 BTU 18 SEER Floor Mounted Mini-Split Performance Single Zone Heat Pump

Product Description

The CARRIER 38MBRQ58A--3 is a Performance series single zone mini split heat pump solution with a close-to-floor wall mounted air handler suitable for residential and light commercial applications. It can also be installed as a ceiling mounted unit. The unit has a wide heating and cooling range and quiet operation. With an output of 58,000 BTU and an efficiency rating of 18 SEER, it can heat and cool up to a large room.

• Can generally heat and cool up to a large room in mild climates
• 58,000 BTU, 18 SEER heat pump floor mounted mini split with remote control
• Suitable for both residential and light commercial applications thanks to its large capacity

Product Highlights

The 38MBRQ58A--3 mini split is a heat pump with a close-to-floor wall mounted air handler. It features quiet operation, safety monitoring, and improved serviceability.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 38MBRQ58A--3
• Country of Origin: United States

Technical Specifications

• SKU: 40MBFQ58-3 / 38MBRQ58A-3
• Maximum CFM: 796-1385
• EER: 9.8
• AHRI Certificate Number: 201847018
• HSPF: 10.5
• SEER1 (Efficiency): 18-20
• Controller: Wireless Included
• Electrical: 208/230V 1 Phase 60Hz
• Additional Information: Heat Pump
• Minimum Line Set Length: 10
• Maximum Line Set Length: 213'
• Drain: 1"
• Cooling BTU: 54,000 BTU
• Energy Star: No
• Heating BTU: 62,000 BTU
• Liquid Line: 3/8"
• Refrigerant: R410A
• Amperage Requirement: 50A
• Brand: Carrier
• Suction Line: 3/4"
• Phase: Single Phase
• Max Breaker Size: 50 Amps
• Min. Breaker Size: 35 Amps
• Tonnage: 4.5 Ton
• Min/Max Outdoor Temp for Cooling: -13°F-122°F
• Min/Max Outdoor Temp for Heating: -22°F-86°F
• Refrigerant Charge: Pre-charged for: 26'
• Zone Compatibility: Single Zone
• System Tonnage: 4.5 Ton
• Family: Performance
• Line Voltage (60Hz): 240V
• Number of Zones: 1
• Compressor: Rotary Inverter
• Compressor Model: ATQ420D1UMU
• Compressor Type: Rotary Inverter
• Condenser Motor HP: 0.14
• Condenser Motor RPM: 900 rpm
• Face Area: 13
• Frequency: 60
• Heating Capacity: 58000
• Inverter: True
• Maximum Fuse Size: 50 amp
• MCA: 35
• Metering Device: EEV
• Motor Phase: 1
• Package Quantity: 1 ea
• Rated Current: 11.86 amp
• Rated Load: 11.9 amp
• Rows: 3
• SEER: 18
• Single-Zone: True
• Size: 58
• Sound Blanket: False
• Sound Level: 64 dBA
• UL Listed: True
• UL Recognized: True
• Voltage: 208/230
• Alternate Part #: CAR-38MBRQ58A--3
• Heating System: Heat Pump
• SEER Rating: 18
• Country of Origin: United States
