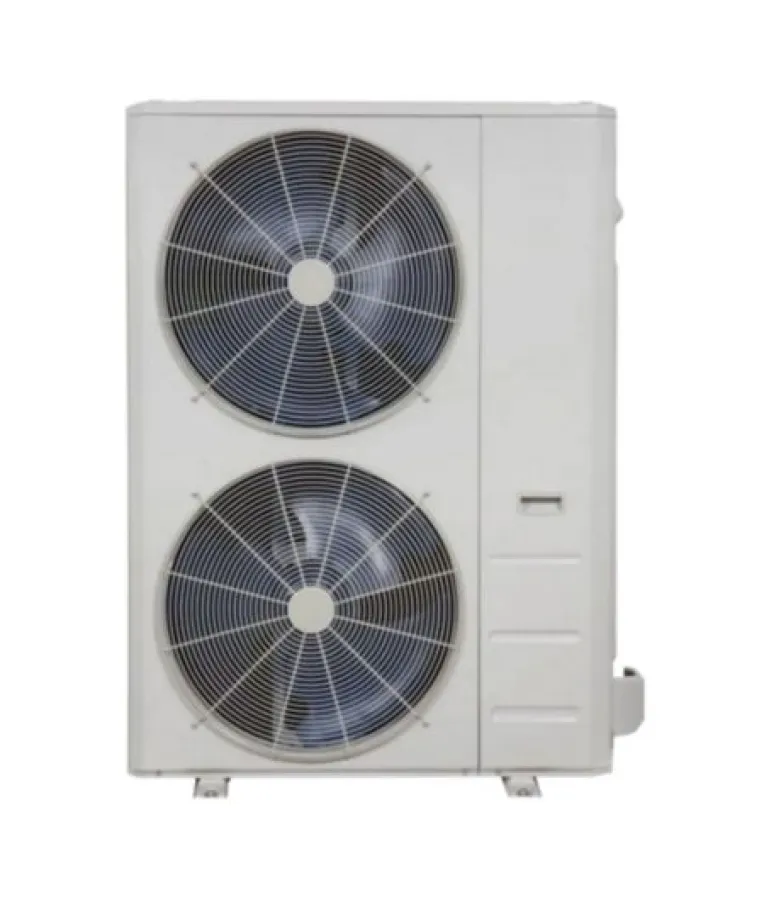

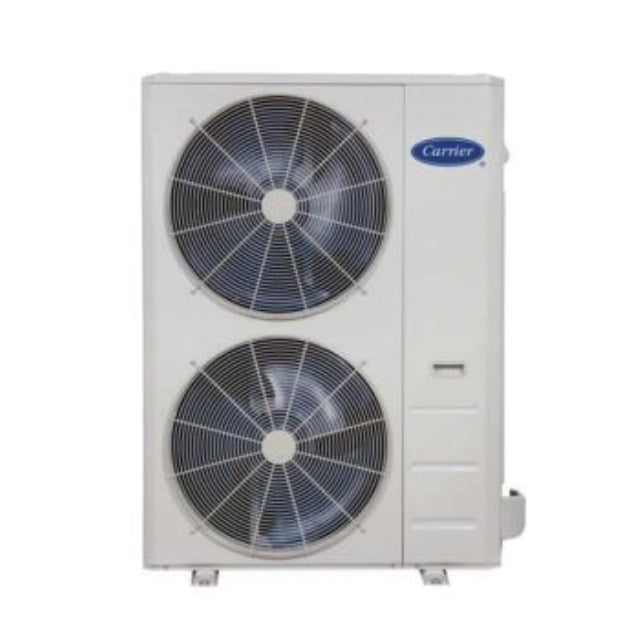

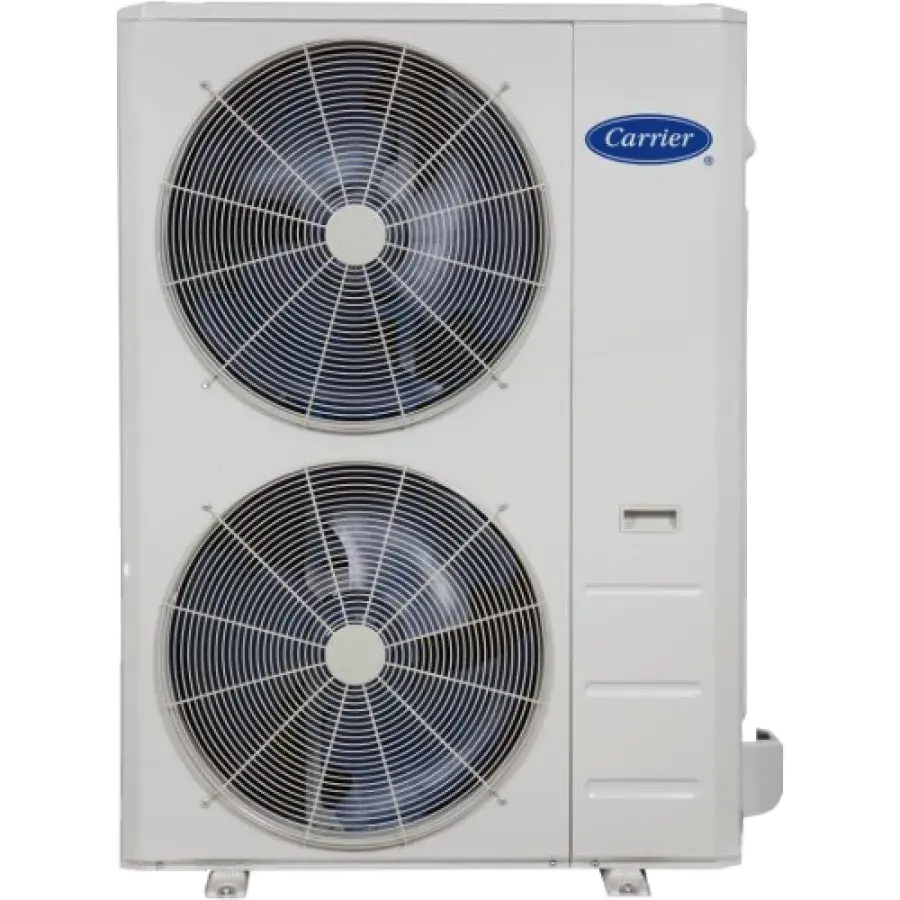

Carrier 38MBRCQ58AA3 Ductless 58,000 Btu/h Heat Pump Condenser, R-410A, Seer2 17

Product Description

The Carrier 38MBRCQ58AA3 is a ductless 58,000 Btu/h heat pump condenser designed for single-zone applications. It features a variable-speed compressor and a high-efficiency ECM fan motor. The unit comes with a factory-installed base pan heater and crankcase heater. It operates with R-410A refrigerant and includes low-voltage controls and an auto-restart function.

• Features a variable speed compressor
• Equipped with a high efficiency ECM fan motor
• Includes factory installed base pan and crankcase heaters

Product Highlights

This Carrier heat pump condenser offers efficient and quiet operation with anti-corrosive fin coating and condenser high-temperature protection.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 38MBRCQ58AA3
• Country of Origin: US

Technical Specifications

• Brand: Carrier
• CFM: 4,500
• Cooling Capacity: 58,000 Btu/h
• Cycle/Hertz: 50/60 Hz
• Phase: Single
• EER: 9.8-10
• SEER: 18
• Equipment Type: Heat Pump
• Heating Capacity: 12,000-62,000
• Liquid Line Size (OD): 3/8″
• Suction Line Size (OD): 7/8″
• Maximum Piping Height: 98′
• Maximum Piping Length: 213′
• Number of HVAC Zones: 1
• Refrigerant: R-410A
• Stage: Single
• Substantial Commodity: Steel; Copper; Aluminum; Petroleum
• Tonnage: 5
• Voltage: 208/230
• Compressor Type: Rotary Inverter
• Rated Load Amps (RLA): 25
• Sound Pressure: 61.2 dB(A)
• Product Height (in.): 52.48”
• Product Width (in.): 37.48”
• Product Depth (in.): 16.34”
• Family: Comfort
• Line Voltage (60Hz): 240V
• Frequency: 60
• Inverter: False
• Metering Device: EXV/TXV
• Motor Phase: 1
• Single-Zone: True
• Size: 58
• Sound Blanket: False
• UL Listed: False
• UL Recognized: False
• Compressor: Rotary Inverter
• Category: Home & Garden > Home Improvement > Heating, Cooling & Air > Central Heating & Cooling Systems > Central Air Conditioners
• Condition: New
