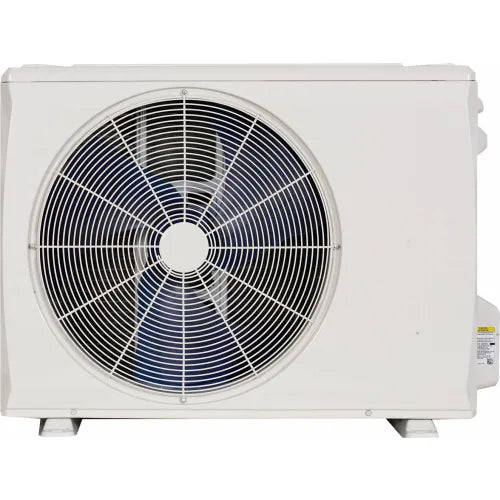

Carrier 38MARBQ30AA3 Ductless Heat Pump Condenser 30000 BTU 2.5 Ton

Product Description

The CARRIER 38MARBQ30AA3 ductless heat pump condenser features a 30000 BTU, 2.5 ton capacity. It provides 100% cooling capacity at -22° F without an additional kit and includes a built-in basepan heater. The unit also features an auto-restart function and anti-corrosive fin coating. Operates within a cooling range of -22° to 130° F and a heating range of -22° to 86° F.

• 100% Cooling capacity at -22° F (-30° C) without additional kit
• Built-in basepan heater
• Auto-restart function

Product Highlights

This Carrier ductless heat pump condenser offers efficient cooling and heating with robust features for reliable performance in extreme temperatures.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 38MARBQ30AA3
• Country of Origin: Import

Technical Specifications

• CFM: 2235 CFM
• Ton: 2.5
• Brand: Carrier
• Hertz: 60 Hz
• Phase: 1
• SEER2: 20
• Voltage: 208/230 V
• BTU Cooling: 30000
• Refrigerant: R-410A
• Width: 42.91 in
• Height: 31.875 in
• Length: 16.125 in
• MfgNum: 38MARBQ30AA3
• Nominal Tons: 2.5 Ton
• Liquid Line: 3/8"
• Suction Line: 5/8”
• Compressor Type: Rotary Inverter
• Discharge Line Size: 3/8 in
• Flow Rate: 2235 cfm
• HSPF Rating: 13
• Maximum Piping Length: 164 ft
• Power Source: 208/230 VAC, 1 ph, 60 Hz
• Refrigerant Type: R-410A
• SEER Rating: 28.1
• Series: Performance 38MARB
• Sound Level: 61.5 dBA
• Temperature Rating: -22 to 122 deg F Cooling/-22 to 86 deg F Heating
• Cooling Capacity: 30000 Btu/hr
• Drive Type: Direct
• EER Rating: 11.5
• Fuse Size: 30 A
• Heating Capacity: 17200 to 20670 Btu/hr
• Material: Galvanized Steel
• Motor HP: 0.16 hp
• Motor RPM: 810 rpm
• Mounting Type: Ground/Rooftop/Wall
• Nominal Capacity: 2-1/2 Ton
• Type: Ductless Single Zone
• Number of Fan Motors: 1
• Number of Compressors: 1
• Features: Outdoor
• Power Phase: 1 Phase
• Country of Origin: United States
• Line Voltage (60Hz): 240V
• Tonnage: 2.5
• Inverter: False
• Sound Blanket: False
• UL Listed: True
• UL Recognized: False
