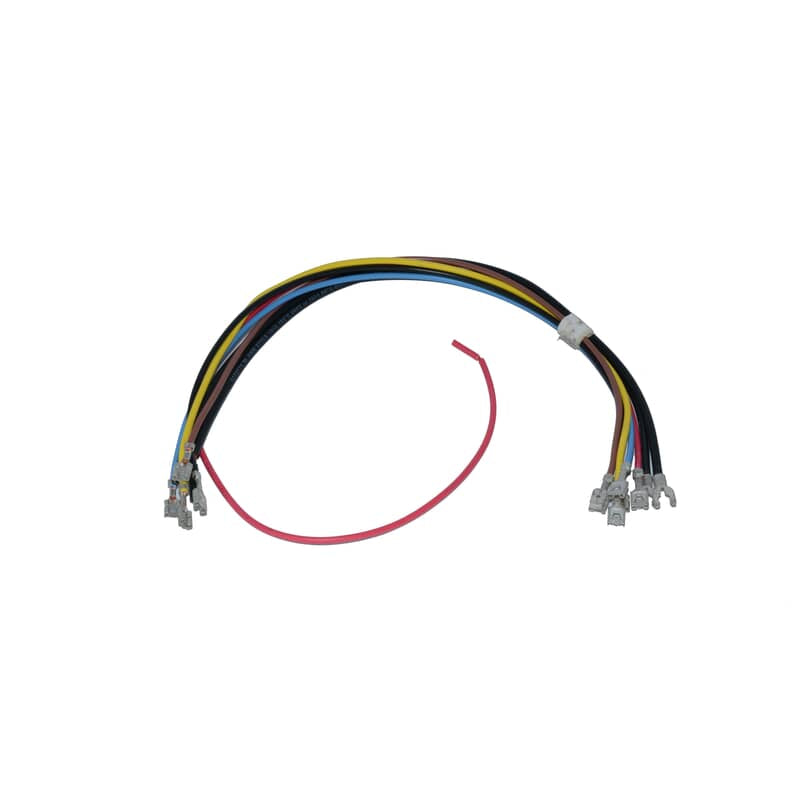

Carrier 38APHSCAV-CA00 Wire Harness Assembly Mbbexv

Product Description

The CARRIER 38APHSCAV-CA00 is a genuine OEM wire harness assembly designed for use in Carrier HVAC equipment. This harness assembly carries electrical signals and power between components within the system, maintaining reliable communication across the control circuit. It is a direct-replacement part intended for use by licensed HVAC technicians performing electrical repairs or component replacements on compatible Carrier equipment. Proper harness integrity is critical to system operation, and using a genuine OEM assembly ensures correct connector fit and wire gauge specifications are maintained throughout the repair.

This wire harness assembly is used in Carrier HVAC systems requiring the MBBEXV harness configuration. It is suited for residential or light commercial applications where the original harness has become damaged, corroded, or failed due to heat or wear. Installation is performed during servicing of the main control or expansion valve circuit within the applicable system.

Key Features

• Genuine OEM Carrier replacement part — ensures correct fit and electrical compatibility
• MBBEXV harness configuration for specific Carrier HVAC applications
• Maintains original wire gauge and connector specifications
• Direct drop-in replacement to minimize diagnostic and installation time

Compatibility

Designed as an OEM-style replacement wire harness for compatible Carrier HVAC systems requiring part number 38APHSCAV-CA00.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all power to the unit at the disconnect box and verify zero voltage before handling any wiring or harness connections. Route the replacement harness to follow the original path, securing it away from sharp edges and heat sources. Follow applicable NEC guidelines for low-voltage wiring practices during reassembly.

Technical Specifications

• Length: 1 inch
• Width: 1 inch
• Height: 1 inch

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 38APHSCAV-CA00
