CARRIER 33TCSPL-4 Connect Plus Thermostat

Product Description

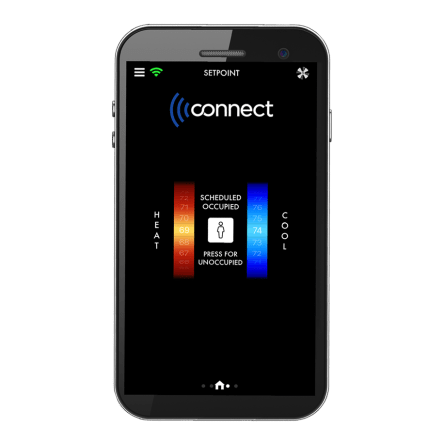

The CARRIER 33TCSPL-4 Connect Plus Thermostat manages HVAC systems efficiently. This device connects to Wi-Fi and interfaces with smartphone applications, along with BACnet-compliant building management systems like Carrier’s i-Vu.

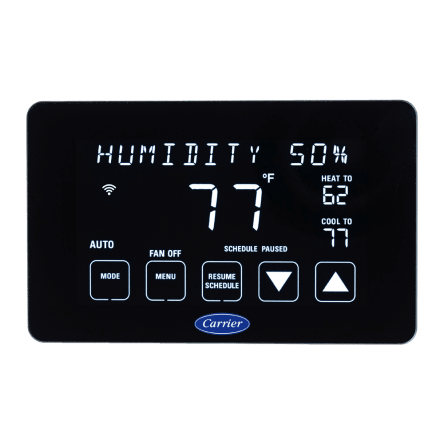

• Features a color capacitive backlit touchscreen.
• Offers Wi-Fi connectivity for easy remote monitoring and control.
• Integrates with BACnet-compliant systems.

Product Highlights

This thermostat provides real-time alerts via SMS and email, ensuring timely responses to critical system issues.

Product Information

Standard Information

• Brand: Carrier
• MPN: 33TCSPL-4

Technical Specifications

• Power Requirements: 24 Vac 50/60 Hz @ 6VA
• Communication: BACnet MS/TP, Wi-Fi 802.11 a/b/g/n
• Display: Color Capacitive Backlit Touchscreen, °F or °C Selectable
• Input: Remote Temperature Sensor 10K Type II
• Outputs: G, W1, W2, Y1, Y2, Y3, O
• Operating Temperature Range: 32°F to 104°F, 10 to 95% relative humidity
• Dimensions: 3.23 inches x 5.13 inches x 0.94 inches
• Color: Black
• Wi-Fi Capable: Yes
• Programmable: Yes
