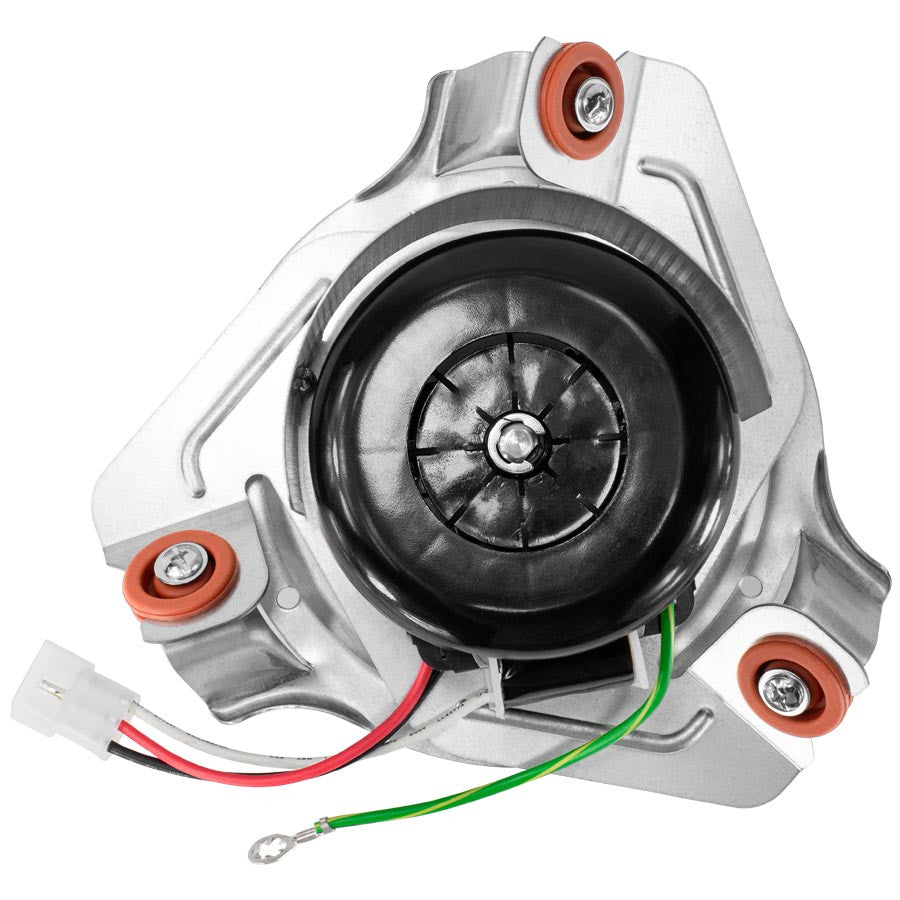

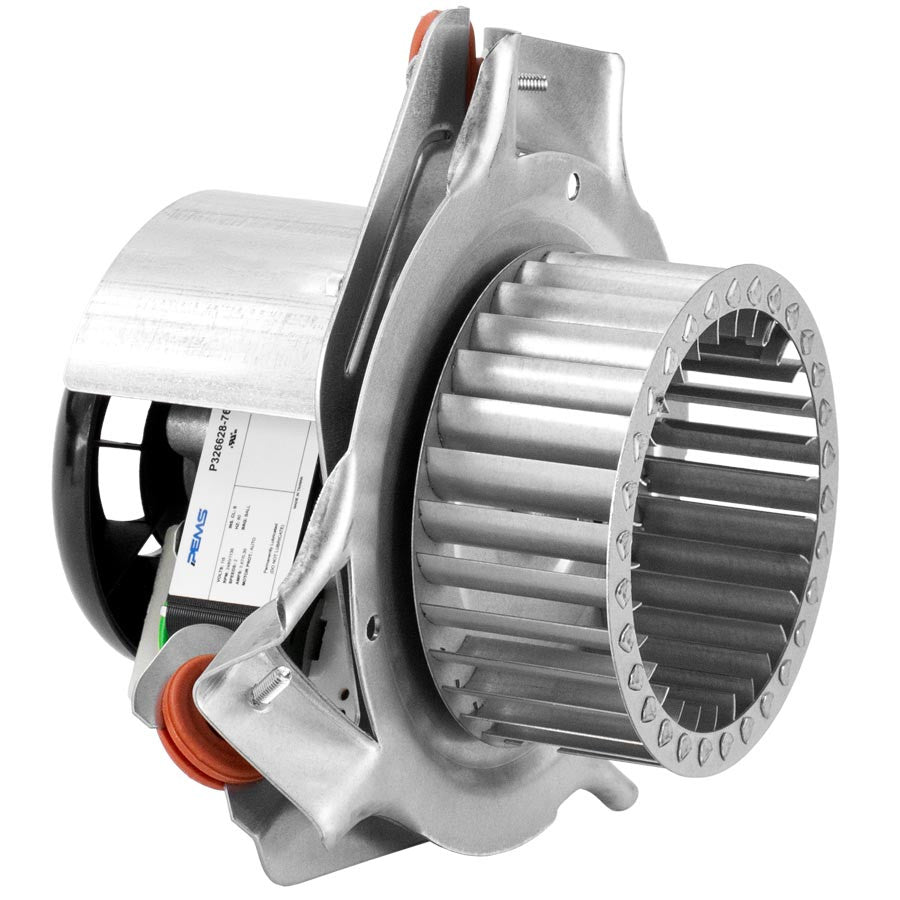

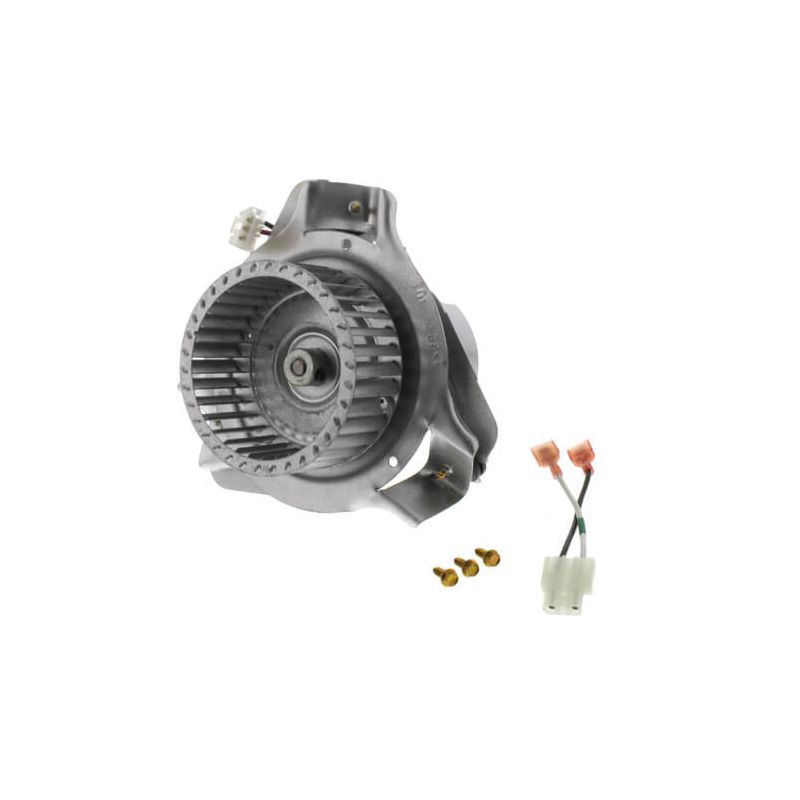

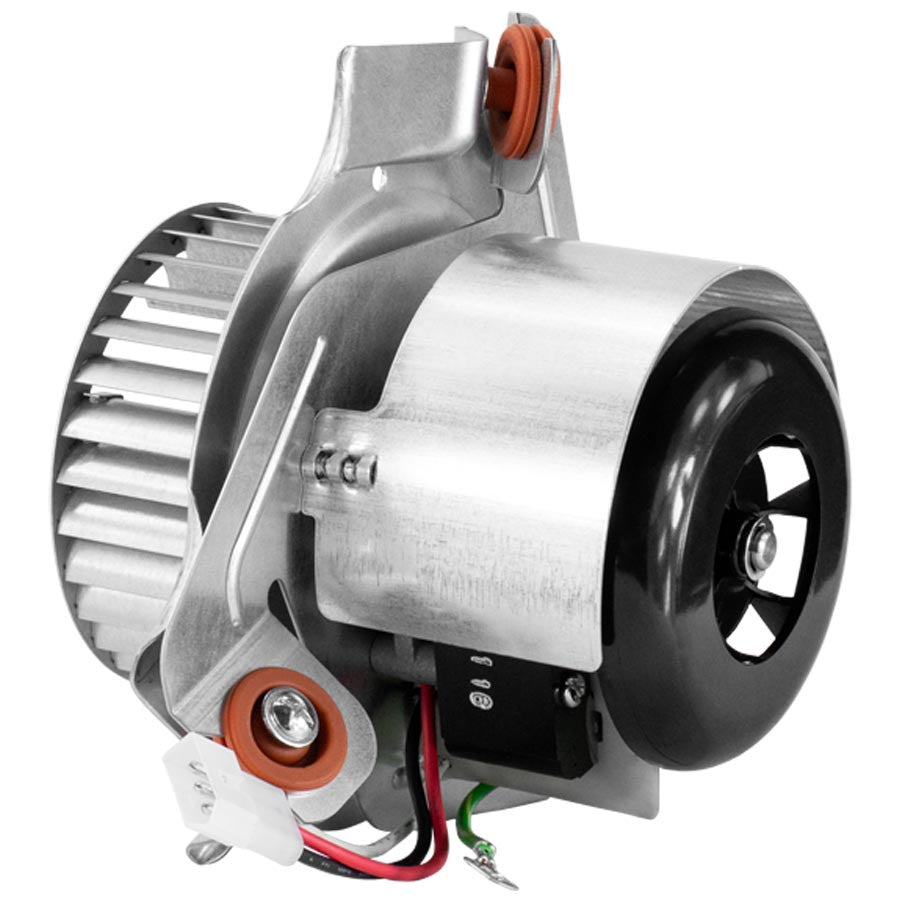

Carrier 326628-761 inducer motor assembly 115 vac 326628-701, 326628-711

Product Description

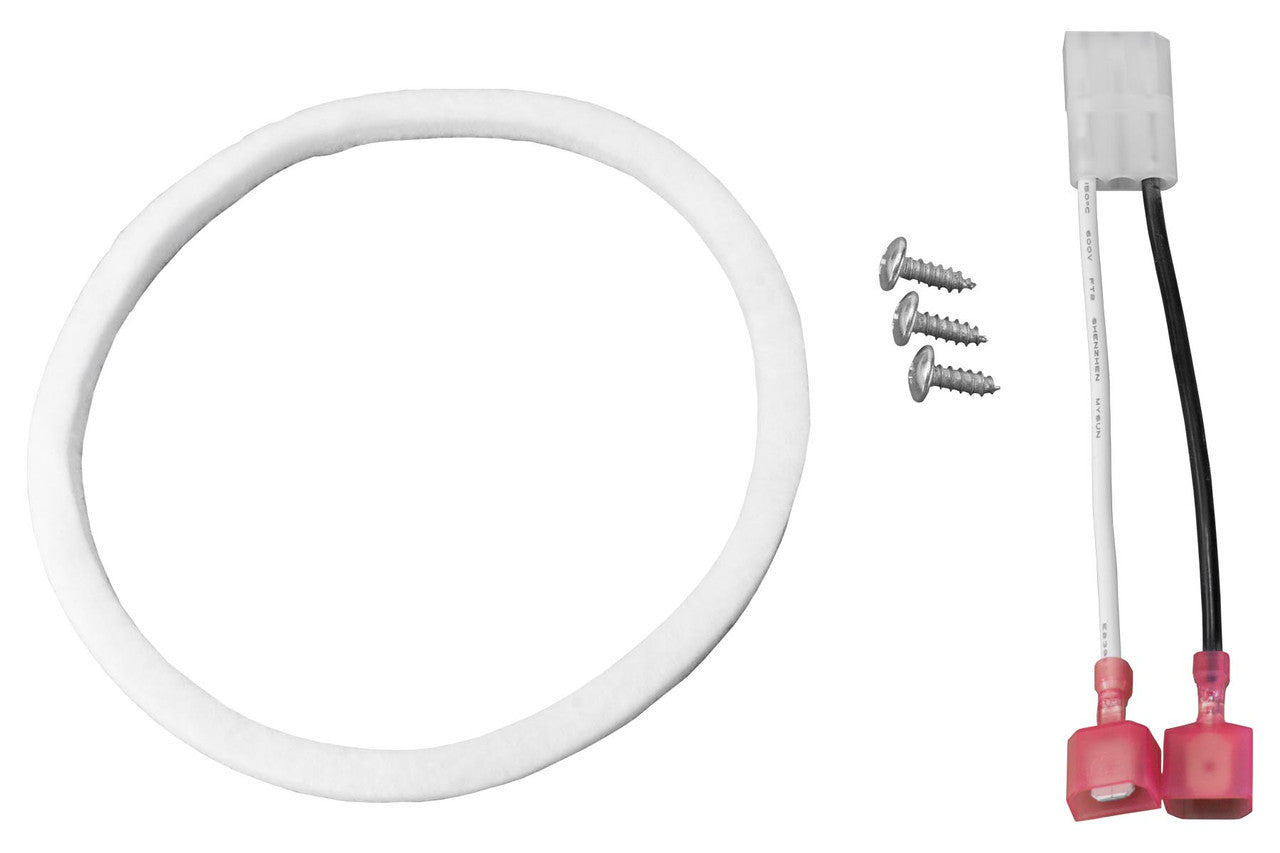

The Carrier 326628-761 Inducer Motor Assembly is designed for furnace applications, operating at 115 VAC, 60 Hz, and single phase. This assembly includes an inducer fan, motor, blower wheel, and gasket, ensuring proper airflow and system performance. It features two speeds and a CW Shaft End rotation, with a full load amperage of 0.28. This unit replaces models 326628-701 and 326628-711.

• Genuine OEM Carrier Part for assured compatibility and quality.
• CSA Listed, ensuring compliance with safety standards.
• Features two-speed operation at 115 VAC, 60 Hz, and single phase.

Product Highlights

Ensures optimum system performance and reliable operation in furnace heating systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 326628-761
• Country of Origin: USA

Technical Specifications

• OEM Part Number: 326628-761
• OEM Manufacturer: Carrier
• CSA Listing: Yes
• Frequency: 60 Hz
• Full Load Amps: 0.28
• Number of Speeds: Two
• Phase: Single
• Rotation: CW Shaft End
• Voltage: 115 VAC
• Part Name: Inducer Motor Assembly Kit
• Use With: Furnace
• RPM: 2480/1130
• Protection: Thermally Protected
• Motor Style: C-Frame
• Bearing Type: Ball Bearing
• Blower Wheel Dimensions: 3.8" x 1.6"
• Wiring: 3-Wire with 2-Wire Molex Plug Adapter
• Safety Switch: Auto Top
