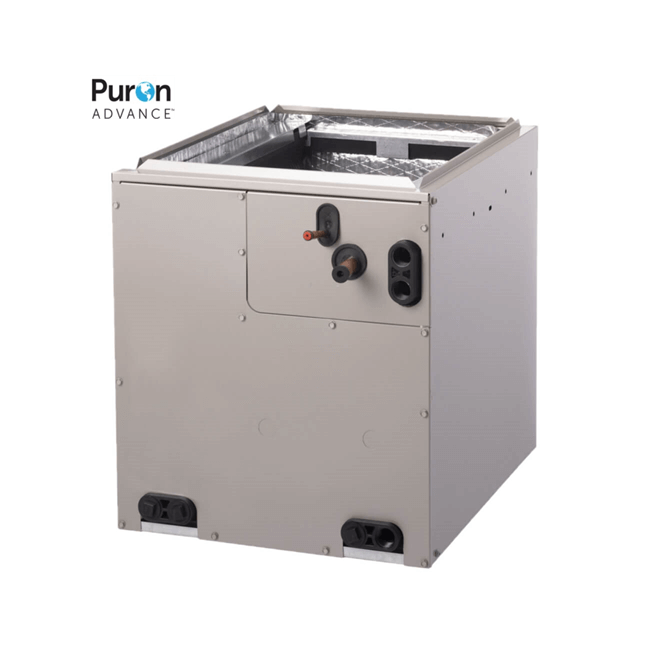

Carrier 3117 Air Conditioner Evaporator V-Coil

Product Description

The Carrier 3117 is an air conditioner evaporator V-coil, compatible with R-454B refrigerant. This V-coil supports multi-poise airflow and comes with a cased enclosure. The aluminum tubing ensures durability, and it includes a TXV metering device for optimal performance.

• V-Coil design for air conditioning systems.
• Compatible with R-454B refrigerant.
• Cased enclosure with multi-poise airflow.

Product Highlights

Efficiently designed for air conditioning systems, the Carrier 3117 enhances overall cooling performance.

Product Information

Standard Information

• Series: CVAMA
• Domestic/Import: Import

Technical Specifications

• Nominal Capacity: 2.5 Ton
• Air Flow Type: Multi-Poise
• Flow Rate: 750 to 1250 cfm
• Refrigerant Type: R-454B
• Metering Device: TXV
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Tubing Material: Aluminum
• Enclosure Type: Cased
• Dimensions: 25-13/16 in H x 17-1/2 in W x 20-5/8 in D
• Coil Dimensions: 17.5 X 20.6 X 29.75
• Install Position: R454B Multi-Pos/CVAM
