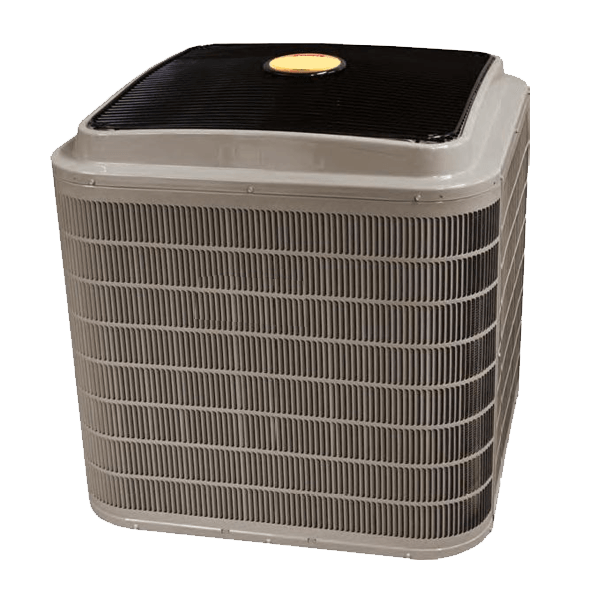

Carrier 288BNV048000 Evolution 4 Ton Heat Pump Condensing Unit

Product Description

The CARRIER 288BNV048000 heat pump offers variable speed performance in a compact cabinet, delivering up to 11 HSPF heating efficiency and 18 SEER cooling efficiency. The variable speed inverter capacity control provides up to 5 stages of operation for load matching and dehumidification. Designed for flexible system matching with a variety of indoor units and controls.

• Up to 18 SEER /12.5 EER / 11 HSPF
• Microtube Technology refrigeration system
• Sound level as low as 55 dBA in low speed, Silencer System II

Product Highlights

This heat pump features a variable speed compressor, durable construction, and compatibility with Evolution Connex Control for optimal performance.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 288BNV048000

Technical Specifications

• Model Number(s): 288BNV048000
• Brand: Bryant
• Type: Heat Pump
• Category: Heat Pumps
• Ton: 4.0 Ton
• SEER: 18
• HSPF: 11.00
• Cooling Btu: 46,000
• Cooling Stage(s): 5
• Compressor Stage: Inverter
• Heating Btu: 50,500
• Heating Stage(s): 5
• Voltage: 208/230V
• Electrical Phase(s): 1-Phase
• Amp(s): 50
• Decibel Level (dB): 73
• Maximum CFM: 4,500
• Refrigerant Type: R-410A
• Suction Valve Size (Inches): 7/8
• Liquid Valve Size (Inches): 3/8
• Min. Operating Temp. (Degrees): 10
• Height (Inches): 38 15/16
• Width (Inches): 31 3/16
• Depth (Inches): 31 3/16
