Carrier 26SCA524W003 Air Conditioner 2.0T 208/230 Comfort REPLACEMENT 24SCA524W003

Product Description

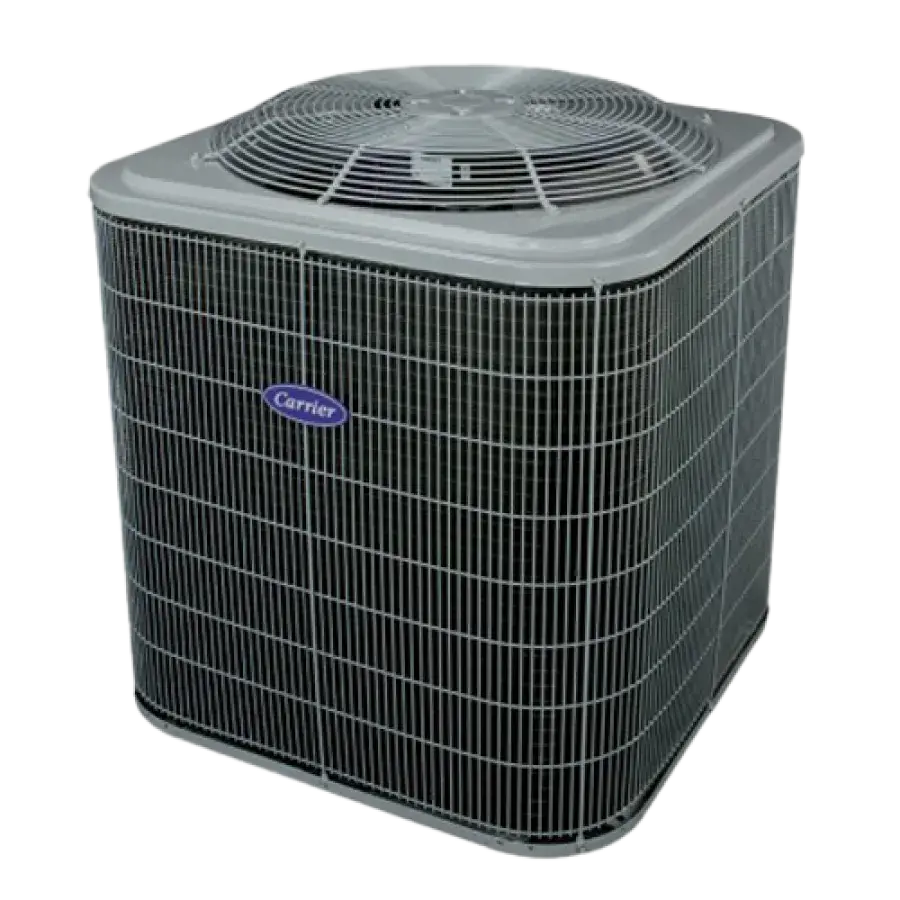

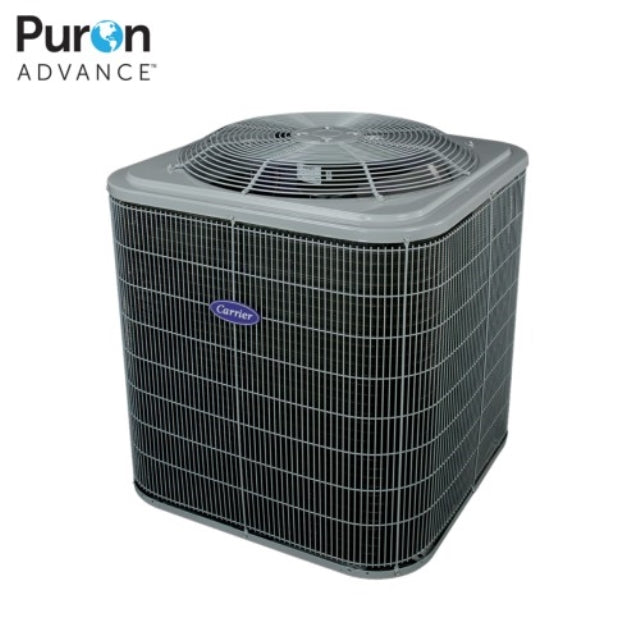

The CARRIER 26SCA524W003 is an air conditioner with Puron Advance refrigerant (R454B) and a single-stage compressor. It is designed with microchannel technology and a DuraGuard protection package. It supports programmable or standard thermostat controls and has a sound level as low as 71 dBa.

• Utilizes non-ozone depleting, low global warming potential Puron Advance R-454B refrigerant.
• Features a single-stage scroll compressor with internal pressure relief valve and thermal overload protection.
• Equipped with DuraGuard protection package with solid sheet metal construction and dense wire coil guard.

Product Highlights

This air conditioner offers up to 17.0 SEER2 and is AHRI Certified, Energy Star Rated, and cULus Listed.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 26SCA524W003
• Country of Origin: United States

Technical Specifications

• MfgNum: 26SCA524W003
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Air Conditioners
• SubSubCat: Residential
• ItemNum: 26SCA524W003
• Vendor Name: Carrier
• Brand: Carrier
• Coastal: False
• Configuration: Vertical
• Family: Comfort
• Line Voltage (60Hz): 240V
• Refrigerant: R454B
• Suction Line Size: 3/4"
• Tonnage: 2
• Air Flow: Vertical
• CFM Cooling: 750
• Coil Guard Type: Grill
• Compressor RLA: 10.3
• Compressor Type: Scroll
• Condenser Motor HP: 1/10
• Condenser Motor RPM: 825 rpm
• Condenser Motor Type: Propeller Type, Direct Drive
• Frequency: 60
• Gas Stages: 1-Stage
• High Pressure: False
• High Pressure Switch: False
• Inverter: False
• LEED Certified: False
• Liquid Line Fitting: Sweat
• Liquid Line Size: 3/8" in
• Low Pressure: False
• Low Pressure Switch: False
• LRA: 60.2
• Maximum Circuit Breaker: 20
• Maximum Piping Length: 250
• Maximum Voltage: 253
• MCA: 14
• Metering Device: TXV
• Minimum Voltage: 197
• Motor Phase: 1
• Number Of Fan Blades: 3
• Outdoor Coil Material: Tube
• Outdoor Fan Motor FLA: 0.7
• Outdoor FPI: 25
• Outdoor Number of Rows: 1
• Sound Blanket: False
• Suction Line Fitting: Sweat in
• UL Listed: False
• UL Recognized: False
• Voltage: 208/230-1
• Weight: 143 lb
• Tier: Comfort
• Cooling Capacity: 2 ton
• SEER2: 15
• Unit Function: Cooling Only
