Carrier 25VNA836A003 Infinity 3 Ton 18 SEER Residential Variable Speed Heat Pump Condensing Unit

CARRIER
Brand: CARRIER
SKU: 25VNA836A003
5.0
Rated 5.0 out of 5 stars
1 Review
Availability: Out Of Stock
Final Sale / No Returns
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$3,076.50
$3,076.50

This is a Final Sale item and cannot be returned or refunded. Exceptions apply for damaged or defective items.

LTL Delivery

This product weighs 190 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

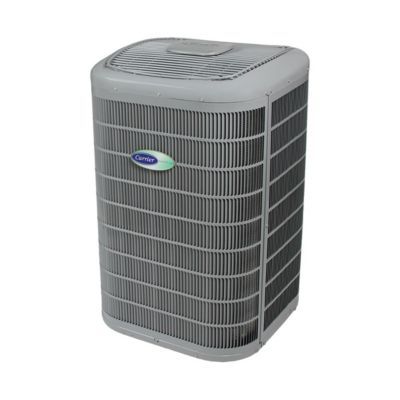

The CARRIER 25VNA836A003 Infinity 18 SEER residential heat pump condensing unit offers variable speed performance. This 3 ton unit provides up to 18 SEER cooling and 11 HSPF heating efficiency. The variable speed compressor operates at 5 stages with a capacity range from 25 to 100%.

  • Up to 19 SEER / 13 EER / 11 HSPF
  • Microtube Technology refrigeration system
  • Variable-speed compressor operates at (5) stages with capacity range from as wide as 25 to 100%

Product Highlights

High-efficiency variable speed heat pump with up to 18 SEER and 11 HSPF. Features a variable-speed compressor and is designed for flexible system matching.

Product Information

Standard Information

  • Brand: CARRIER
  • Manufacturer Part Number: 25VNA836A003
  • Country of Origin: USA

Technical Specifications

  • MfgNum: 25VNA836A003
  • Main Category: HVAC
  • Category: HVAC Equipment
  • SubCat: Heat Pumps
  • SubSubCat: Residential
  • ItemNum: 25VNA836A003
  • Refrigerant: R-410A
  • SEER: 18
  • EER: 13
  • HSPF: 11
  • Voltage: 208-230 VAC
  • Stages: 5
  • Capacity Range: 25 to 100%
  • Brand: Carrier®
  • CFM: 2,500
  • Condenser Motor HP: 1/3
  • Condenser Motor RPM: 300
  • Condenser Motor Speeds: Variable
  • Condenser Motor Type: PSC (Permanent Split Capacitor)
  • Cooling Capacity: 32,400-34,200
  • Cooling Rated Capacity Btu/h: 36000
  • COP: 3.26-3.62
  • Cycle/Hertz: 60 Hz
  • Energy Star Rated: false
  • Equipment Type: Heat Pump
  • Full Load Amps: 1.32
  • Heating Capacity: 34,200
  • Inverter: true
  • Liquid Line Size (OD): 3/8"
  • Maximum Piping Length: 100'
  • Metering Device: TXV/TEV - Thermostatic Expansion Valve
  • OPT Code: 1P25VNA836A003
  • Phase: Single
  • Product Family: 25VNA8
  • Prop 65: true
  • Sound Level (dBA): 71
  • Substantial Commodity: Steel; Copper; Aluminum
  • Suction Line Size (OD): 7/8"
  • Tonnage: 3
  • Liquid Line Fitting Type: Sweat or Braze
  • Locked Rotor Amps (LRA): 24
  • Rated Load Amps (RLA): 18.3
  • Suction Line Fitting Type: Sweat or Braze
  • Maximum Overcurrent Protection (MOCP): 40
  • Compressor Type: Rotary
  • Condenser Fan CFM: 2500
  • Approvals: UL Listed; UL Recognized
  • Condenser Coil Fins per Inch (FPI): 20
