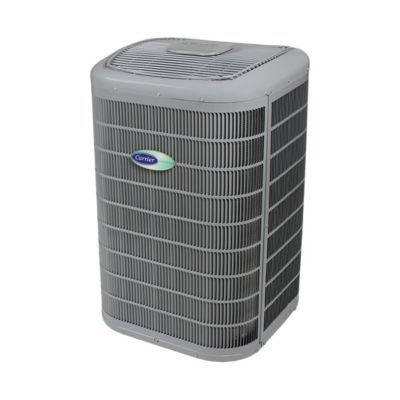

CARRIER Carrier 25VNA836A003 Infinity 3 Ton 18 SEER Residential Variable Speed Heat Pump Condensing Unit

Carrier 25VNA836A003 Infinity 3 Ton 18 SEER Residential Variable Speed Heat Pump Condensing Unit

CARRIER
Brand: CARRIER
SKU: 25VNA836A003
5.0
Rated 5.0 out of 5 stars
1 Review
Availability: Out Of Stock
Final Sale / No Returns
$3,076.50
$3,076.50

This is a Final Sale item and cannot be returned or refunded. Exceptions apply for damaged or defective items.

LTL Delivery

This product weighs 190 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The CARRIER 25VNA836A003 Infinity 18 SEER residential heat pump condensing unit offers variable speed performance. This 3 ton unit provides up to 18 SEER cooling and 11 HSPF heating efficiency. The variable speed compressor operates at 5 stages with a capacity range from 25 to 100%.

  • Up to 19 SEER / 13 EER / 11 HSPF
  • Microtube Technology refrigeration system
  • Variable-speed compressor operates at (5) stages with capacity range from as wide as 25 to 100%

Product Highlights

High-efficiency variable speed heat pump with up to 18 SEER and 11 HSPF. Features a variable-speed compressor and is designed for flexible system matching.

Product Information

Standard Information

  • Brand: CARRIER
  • Manufacturer Part Number: 25VNA836A003
  • Country of Origin: USA
Technical Specifications
MfgNum
25VNA836A003
Main Category
HVAC
Category
HVAC Equipment
SubCat
Heat Pumps
SubSubCat
Residential
ItemNum
25VNA836A003
Refrigerant
R-410A
SEER
18
EER
13
HSPF
11
Voltage
208-230 VAC
Stages
5
Capacity Range
25 to 100%
Brand
Carrier®
CFM
2,500
Condenser Motor HP
1/3
Condenser Motor RPM
300
Condenser Motor Speeds
Variable
Condenser Motor Type
PSC (Permanent Split Capacitor)
Cooling Capacity
32,400-34,200
Cooling Rated Capacity Btu/h
36000
COP
3.26-3.62
Cycle/Hertz
60 Hz
Energy Star Rated
false
Equipment Type
Heat Pump
Full Load Amps
1.32
Heating Capacity
34,200
Inverter
true
Liquid Line Size (OD)
3/8"
Maximum Piping Length
100'
Metering Device
TXV/TEV - Thermostatic Expansion Valve
OPT Code
1P25VNA836A003
Phase
Single
Product Family
25VNA8
Prop 65
true
Sound Level (dBA)
71
Substantial Commodity
Steel; Copper; Aluminum
Suction Line Size (OD)
7/8"
Tonnage
3
Liquid Line Fitting Type
Sweat or Braze
Locked Rotor Amps (LRA)
24
Rated Load Amps (RLA)
18.3
Suction Line Fitting Type
Sweat or Braze
Maximum Overcurrent Protection (MOCP)
40
Compressor Type
Rotary
Condenser Fan CFM
2500
Approvals
UL Listed; UL Recognized
Condenser Coil Fins per Inch (FPI)
20
