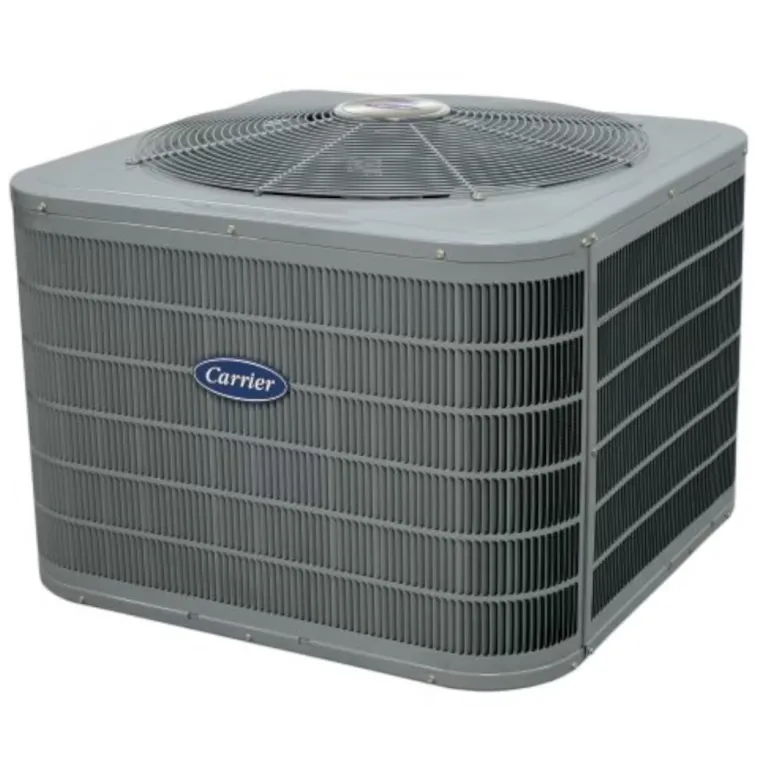

Carrier 25TPA760A003 Performance Series 2-Stage Heat Pump 5 Ton

Product Description

The CARRIER 25TPA760A003 is a 5 Ton Performance Series 2-Stage Heat Pump with Puron refrigerant. This unit offers energy efficiency up to 17.0 SEER2 and supports Thermidistat or standard 2-stage thermostat controls. Features a 2-stage scroll compressor and durable sheet metal construction with a steel louvered coil guard.

• Energy Efficiency: Up to 17.0 SEER2 (18.5 SEER)
• Non-Ozone depleting Puron refrigerant
• Solid, durable sheet metal construction

Product Highlights

This CARRIER heat pump provides efficient and reliable cooling and heating with its 2-stage compressor and robust design.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 25TPA760A003
• Country of Origin: United States

Technical Specifications

• Refrigerant: Puron
• Stages: 2-Stage
• Sound Level: As low as 70 dBA
• CFM: 5,000
• Condenser Motor HP: 1/4
• Condenser Motor RPM: 800
• Condenser Motor Speeds: 1
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Cooling Capacity: 60,000
• Cooling Rated Capacity Btu/h: 60000
• Cycle/Hertz: 50/60 Hz
• EER2: 12
• Full Load Amps: 1.5
• HSPF2: 8.1
• Liquid Line Size (OD): 3/8″
• Phase: Single
• SEER2: 16
• Sound Level (dBA): 73-74
• Suction Line Size (OD): 1 1/8″
• Tonnage: 5
• Voltage: 208-230 VAC
• Locked Rotor Amps (LRA): 158
• Rated Load Amps (RLA): 26.9
• Maximum Overcurrent Protection (MOCP): 60
• Compressor Type: Scroll
• Condenser Fan CFM: 5000
• Condenser Coil Fins per Inch (FPI): 20
• Nominal Tons: 5 Ton
• Brand: Carrier
• Model: 25TPA760A003
• Category: Central Air Conditioners
