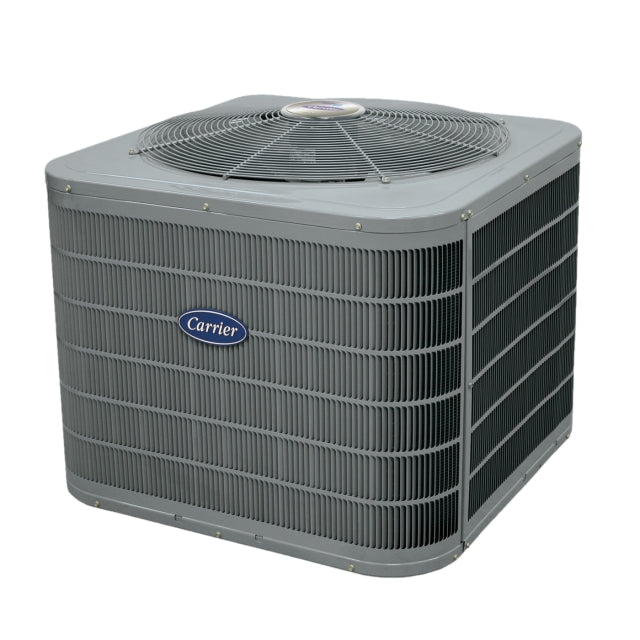

Carrier 25TPA748A003 Heat Pump 4.0T

CARRIER
Brand: CARRIER
SKU: 25TPA748A003
Availability: In Stock

Ships via freight in 1-3 business days

Final Sale / No Returns
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$3,503.81
$3,503.81

This is a Final Sale item and cannot be returned or refunded. Exceptions apply for damaged or defective items.

LTL Delivery

This product weighs 324 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CARRIER 25TPA748A003 Performance Series 2-Stage Heat Pump uses Puron refrigerant and is available in 1.5 to 5 ton nominal-sized single-phase units. This heat pump offers up to 17.0 SEER2 (18.5 SEER) and up to 13.0 EER2 (14EER). It features a microtube technology refrigeration system and operates with sound levels as low as 70 dBA.

  • Energy Efficiency - Up to 17.0 SEER2 (18.5 SEER)
  • Microtube Technology refrigeration system
  • Sound as low as 70 dBA

Product Highlights

This CARRIER heat pump provides efficient and quiet operation with a durable design.

Product Information

Standard Information

  • Brand: CARRIER
  • Manufacturer Part Number: 25TPA748A003

Technical Specifications

  • MfgNum: 25TPA748A003
  • Main Category: HVAC
  • Category: HVAC Equipment
  • SubCat: Heat Pumps
  • SubSubCat: Residential
  • ItemNum: 25TPA748A003
  • Vendor Name: Carrier
  • Coastal: False
  • Compressor Stage: 2
  • Configuration: Vertical
  • Cooling Capacity: 44500
  • Family: Performance
  • Line Voltage (60Hz): 240V
  • Nominal Seer: 17
  • Refrigerant: R410A
  • Tonnage: 4
  • Voltage (Phase): 208/230 V 1-Phase
  • CFM Cooling: 1435
  • CFM Heating: 4779
  • CFM Nominal: 1400
  • Coil Guard Type: Louver
  • Compressor: Scroll
  • Compressor RLA: 25.8
  • Compressor Type: Scroll
  • Condenser Motor HP: 0.25
  • Condenser Motor RPM: 800 rpm
  • Condenser Motor Speeds: 1 - Speed
  • Condenser Motor Type: Propeller Type, Direct Drive
  • Frequency: 60
  • Height: 45 11/16" in
  • High Pressure Switch: False
  • HSPF: 9.5
  • Inverter: False
  • Length: 35" in
  • Liquid Line Fitting: Sweat
  • Liquid Line Size: 3/8
  • Low Pressure Switch: False
  • LRA: 126.5
  • Max Sound Level: 73
  • Maximum Circuit Breaker: 50
  • Maximum EER: 13
  • Maximum Heating Capacity: 48000
  • Maximum Piping Length: 250
  • Maximum SEER: 18
  • Maximum Voltage: 253
  • MCA: 29
  • Metering Device: TXV/TXV
  • Metering Device Heating: TXV
  • Min Sound Level: 73
  • Minimum Cooling Capacity: 46500
  • Minimum EER: 11
  • Minimum Heat Efficiency HSPF: 8.8
  • Minimum Heating Ambient Temperature: -20
  • Minimum Heating Capacity: 28400
  • Minimum SEER: 15
  • Minimum Voltage: 197
  • Motor Phase: 1
  • Number Of Fan Blades: 3
  • Outdoor Coil Material: Tube
  • Outdoor Fan Motor FLA: 1.2
  • Outdoor FPI: 20
  • Outdoor Number of Rows: 2
  • SEER: 18
  • Sound Blanket: False
  • Suction Line Fitting: Sweat in
  • Suction Line Size: 1 1/8
  • Voltage: 208/230-1
  • Weight: 294 lb
  • Width: 35" in
  • Model: 25TPA748
