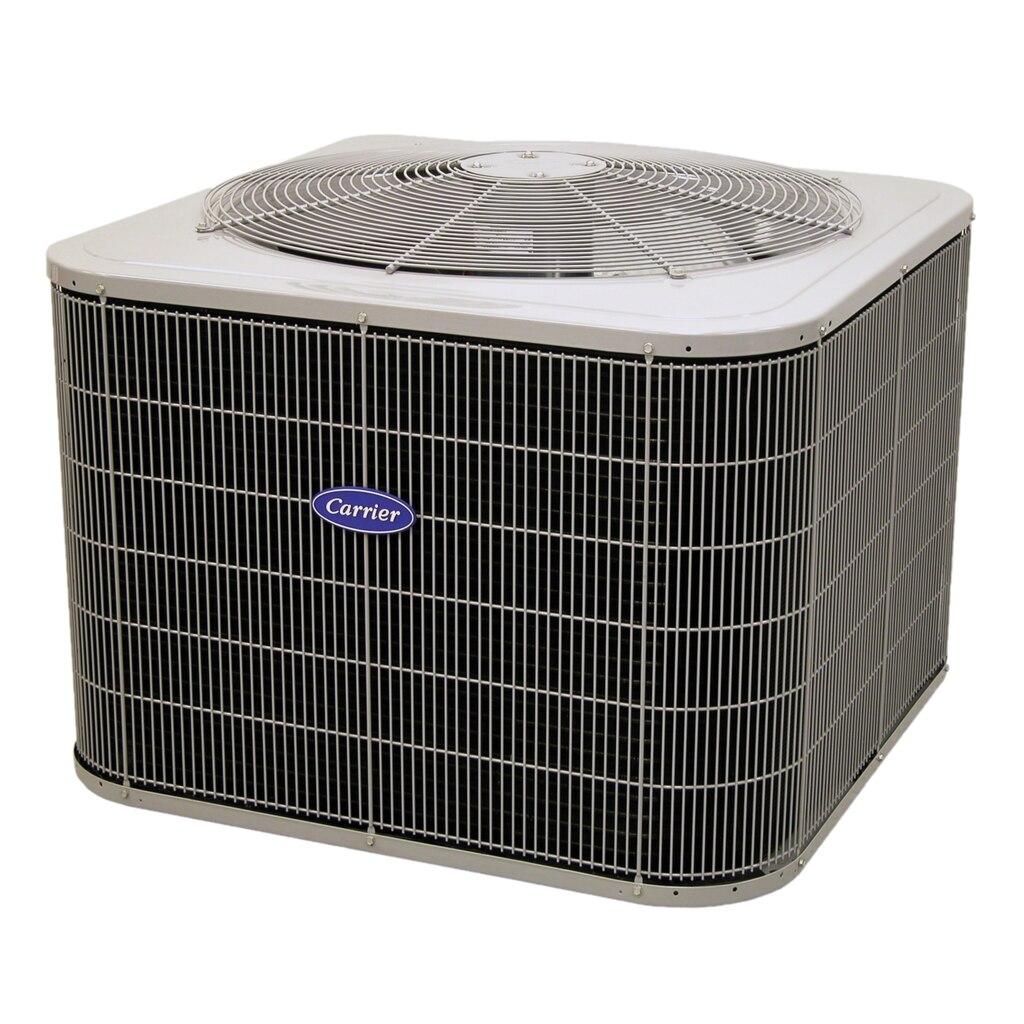

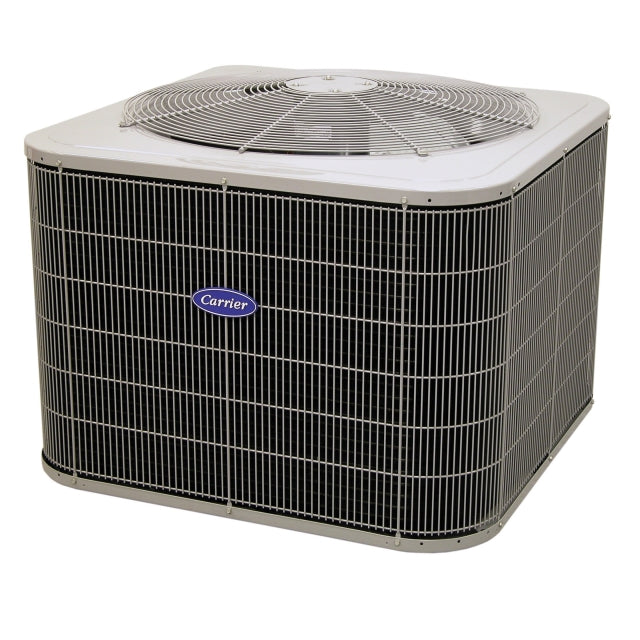

Carrier 25HCE460AP03 Comfort 5-Ton 14 SEER R410A Heat Pump (208/230 V 1-Phase)

Product Description

The CARRIER 25HCE460AP03 Comfort series heat pump is designed for reliability, efficiency, and affordability, providing both summer cooling and cooler season heating. This 5-ton unit features 14 SEER cooling efficiency and 8.2 HSPF heating efficiency. It uses non-ozone depleting Puron® refrigerant and offers WeatherArmor™ protection.

• 14 SEER cooling efficiency
• 8.2 HSPF heating efficiency
• Sound levels as low as 69 decibels
• Filter drier system protects from moisture and contaminants

Product Highlights

Reliable and efficient heat pump with cooling and heating capabilities, WeatherArmor™ protection, and a 10-year parts limited warranty.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 25HCE460AP03

Technical Specifications

• Brand: Carrier
• CFM: 4470.0
• Coastal: False
• Compressor Stage: 1
• Configuration: Vertical
• Cooling Capacity: 57000
• Family: Comfort
• Line Voltage (60Hz): 240V
• Nominal Seer: 14
• Refrigerant: R410A
• Suction Line Size: 1 1/8
• Tonnage: 5
• Voltage (Phase): 208/230 V 1-Phase
• CFM Nominal: 4470
• Coil Guard Type: Grill
• Compressor: Scroll
• Compressor RLA: 24.4
• Compressor Type: Scroll
• Condenser Motor HP: 1/4
• Condenser Motor RPM: 1100 rpm
• Condenser Motor Speeds: 1 - Speed
• Condenser Motor Type: Permanent Split Capacitor
• EER: 11.5, 11.7
• Fan Diameter: 24
• Frequency: 60
• Full Load: 1.52 amp
• Heating Capacity: 32800.0, 54500.0
• Height: 36.50 in
• High Pressure: False
• High Pressure Switch: False
• HSPF: 8.2
• Inverter: False
• LEED Certified: False
• Length: 33.00 in
• Liquid Line Fitting: Sweat
• Liquid Line Size: 3/8
• Locked Rotor: 144 amp
• Low Pressure: True
• Low Pressure Switch: True
• LRA: 144
• Max Sound Level: 73
• Maximum Circuit Breaker: 50
• Maximum COP: 3.7
• Maximum EER: 11.7
• Maximum Heating Capacity: 54500
• Maximum Piping Length: 250
• Maximum SEER: 14
• Maximum Voltage: 253
• MCA: 32
• Metering Device: TXV
• Metering Device Heating: Piston
• Minimum Cooling Capacity: 56500
• Minimum EER: 11.5
• Minimum Heat Efficiency HSPF: 8.2
• Minimum Heating Ambient Temperature: -20
• Minimum Heating Capacity: 32800
• Minimum SEER: 14
• Minimum Voltage: 197
• Motor Phase: 1
• Number Of Fan Blades: 2
• Outdoor Fan Motor FLA: 1.52
• Outdoor FPI: 20
• Outdoor Number of Rows: 2
• Rated Load: 24.4 amp
• Rows: 2
• SEER: 14
• Sound Blanket: False
• Sound Level: 73 dBA
• Suction Line Fitting: Sweat in
• UL Listed: True
• UL Recognized: False
• Voltage: 208/230
• Weight: 282 lb
• Width: 33.50 in
