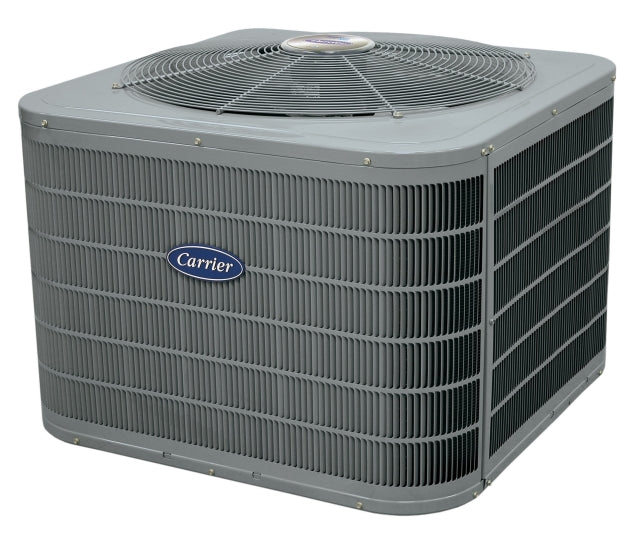

Carrier 25HCB648A003 Performance 4-Ton 16 SEER R410A 2-Stage Heat Pump (208/230 V 1-Phase)

Product Description

The CARRIER 25HCB648A003 is a Performance series heat pump with Puron refrigerant, offering up to 17.5 SEER cooling efficiency and 9.5 HSPF heating efficiency. This 4-ton unit provides superior humidity and temperature control with its two-stage compressor operation, ensuring excellent comfort and quiet performance. It features WeatherArmor™ Ultra protection and a filter drier system.

• Up to 17.5 SEER cooling efficiency
• Up to 9.5 HSPF heating efficiency
• Sound: as low as 70 decibels
• Two-stage compressor operation for excellent comfort and quiet

Product Highlights

This CARRIER heat pump provides efficient and reliable heating and cooling with two-stage compression and WeatherArmor protection.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 25HCB648A003
• Country of Origin: USA

Technical Specifications

• Brand: Carrier
• CFM: 4350
• Coastal: False
• Compressor Stage: 2
• Configuration: Vertical
• Cooling Capacity: 47000
• Family: Performance
• Line Voltage (60Hz): 240V
• Nominal Seer: 16
• Refrigerant: R410A
• Suction Line Size: 1-1/8"
• Tonnage: 4
• Voltage (Phase): 208/230 V 1-Phase
• Air Flow: Vertical
• CFM Nominal: 4350
• Coil Guard Type: Louver
• Compressor: Scroll
• Compressor RLA: 22.8
• Compressor Type: Scroll
• Condenser Motor HP: 1/4
• Condenser Motor RPM: 825 rpm
• Condenser Motor Speeds: 2 - Speed
• Condenser Motor Type: Permanent Split Capacitor
• EER: 10.5, 13
• Fan Diameter: 26
• Frequency: 60
• Full Load: 1.2 amp
• Heating Capacity: 28800, 46500
• Height: 42.75 in
• High Pressure: True
• High Pressure Switch: True
• HSPF: 9
• Inverter: False
• Length: 35 in
• Liquid Line Fitting: Sweat
• Liquid Line Size: 3/8
• Locked Rotor: 104 amp
• Low Pressure: True
• Low Pressure Switch: True
• LRA: 104
• Max Sound Level: 75
• Maximum Circuit Breaker: 50
• Maximum COP: 3.68
• Maximum EER: 13
• Maximum Fuse Size: 50 amp
• Maximum Heating Capacity: 46500
• Maximum Piping Length: 250
• Maximum SEER: 16
• Maximum Voltage: 253
• MCA: 30
• Metering Device: TXV
• Metering Device Heating: Piston
• Minimum Ambient Temperature: -28.9 °C
• Minimum Cooling Capacity: 4500
• Minimum EER: 10.5
• Minimum Heat Efficiency HSPF: 8.2
• Minimum Heating Ambient Temperature: -20
• Minimum Heating Capacity: 28800
• Minimum SEER: 14
• Minimum Voltage: 197
• Motor Phase: 1
• Number Of Fan Blades: 3
• Outdoor Fan Motor FLA: 1.2
• Outdoor FPI: 20
• Rated Load: 22.8 amp
• Rows: 2
• SEER: 16
• Sound Blanket: False
• Sound Level: 75 dBA
• Suction Line Fitting: Sweat in
• UL Listed: True
• UL Recognized: True
• Voltage: 208/230
• Weight: 295 lb
• Width: 35 in
• AHRI - Usage: Outdoor
• CBU - Compressor Bearing Unit: true
• Cooling Rated Capacity Btu/h: 48000
• COP: 3.68
• Cycle/Hertz: 60 Hz
• Energy Star Rated: true
• Equipment Type: Heat Pump
• HSPF2: 9.5
• Liquid Line Fitting Type: Sweat or Braze
• Maximum Overcurrent Protection (MOCP): 50
• OPT Code: 1P25HCB648A003
• Phase: Single
• Product Family: 25HCB6
• Prop 65: true
• Tier: Performance™
• Condenser Fan CFM: 4350
• Approvals: UL Listed; UL Recognized
• Condenser Coil Fins per Inch (FPI): 20
