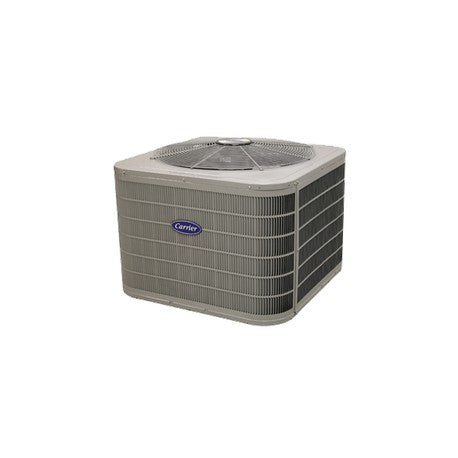

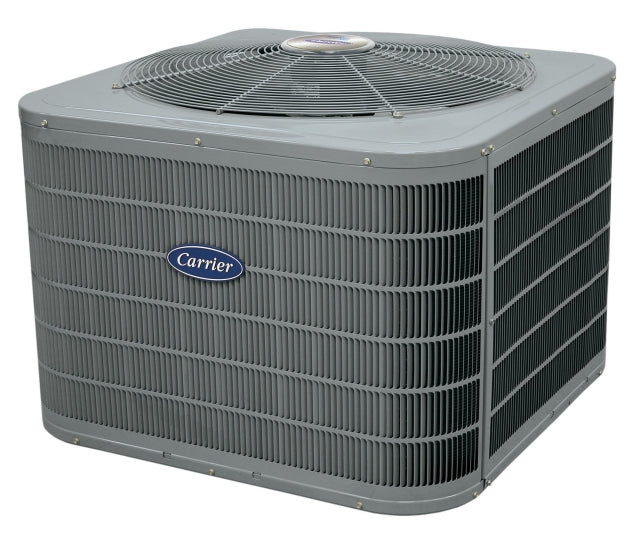

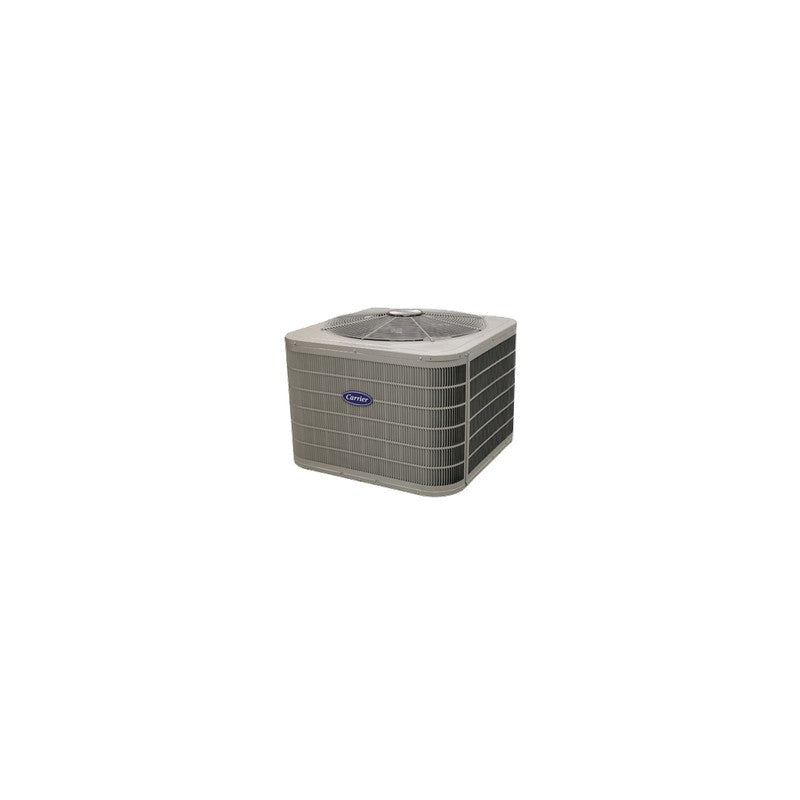

Carrier 25HCB624A003 Performance 2-Ton 16 SEER R410A 2-Stage Heat Pump (208/230 V 1-Phase)

Product Description

The CARRIER 25HCB624A003 is a 2-ton, 16 SEER Performance series heat pump with Puron refrigerant, designed for residential use. This 2-stage heat pump provides superior humidity and temperature control. Features WeatherArmor Ultra protection and a filter drier system to protect from moisture and contaminants. Compatible with Hybrid Heat systems for energy savings.

• Up to 17.5 SEER cooling efficiency
• Up to 9.5 HSPF heating efficiency
• Sound as low as 70 decibels
• Two-stage compressor operation

Product Highlights

This CARRIER heat pump offers a balance of energy savings and comfort with its two-stage compression and compatibility with hybrid heat systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 25HCB624A003
• Country of Origin: USA

Technical Specifications

• Brand: Carrier
• Compressor Stage: 2
• Configuration: Vertical
• Cooling Capacity: 24000
• Family: Performance
• Line Voltage (60Hz): 240V
• Nominal Seer: 16
• Refrigerant: R410A
• Suction Line Size: 3/4"
• Tonnage: 2
• Voltage (Phase): 208/230 V 1-Phase
• Air Flow: Vertical
• CFM Nominal: 3200
• Coil Guard Type: Louver
• Compressor: Scroll
• Compressor RLA: 12.5
• Compressor Type: Scroll
• Condenser Motor HP: 1/12
• Condenser Motor RPM: 800 rpm
• Condenser Motor Speeds: 2 - Speed
• Condenser Motor Type: Permanent Split Capacitor
• EER: 11, 13.5
• Fan Diameter: 26
• Frequency: 60
• Full Load: 0.5 amp
• Heating Capacity: 15100, 25000
• Height: 43.38 in
• High Pressure: True
• High Pressure Switch: True
• HSPF: 9.5
• Inverter: False
• Length: 35 in
• Liquid Line Fitting: Sweat
• Liquid Line Size: 3/8
• Locked Rotor: 58.3 amp
• Low Pressure: True
• Low Pressure Switch: True
• LRA: 58.3
• Max Sound Level: 73
• Maximum Circuit Breaker: 25
• Maximum COP: 3.9
• Maximum EER: 13.5
• Maximum Fuse Size: 25 amp
• Maximum Heating Capacity: 25000
• Maximum Piping Length: 250
• Maximum SEER: 17.5
• Maximum Voltage: 253
• MCA: 16
• Metering Device: TXV
• Metering Device Heating: Piston
• Minimum Ambient Temperature: -20 °F
• Minimum Cooling Capacity: 23200
• Minimum EER: 11
• Minimum Heat Efficiency HSPF: 8.2
• Minimum Heating Ambient Temperature: -20
• Minimum Heating Capacity: 15100
• Minimum SEER: 14
• Minimum Voltage: 197
• Motor Phase: 1
• Number Of Fan Blades: 3
• Outdoor Fan Motor FLA: 0.5
• Outdoor FPI: 20
• Rated Load: 12.5 amp
• Rows: 2
• SEER: 16
• Sound Level: 73 dBA
• Suction Line Fitting Type: Sweat in
• UL Listed: True
• UL Recognized: True
• Voltage: 208/230
• Weight: 257 lb
• Width: 35 in
• Cycle/Hertz: 60 Hz
• Energy Star Rated: true
• Equipment Type: Heat Pump
• HSPF2: 9.5
• Liquid Line Fitting Type: Sweat or Braze
• OPT Code: 1P25HCB624A003
• Phase: Single
• Product Family: 25HCB6
• Tier: Performance™
• Maximum Overcurrent Protection (MOCP): 25
• Condenser Fan CFM: 3200
• Approvals: UL Listed; UL Recognized
• Condenser Coil Fins per Inch (FPI): 20
• Hybrid Heat® Compatible: Yes
• Summer Dehumidification: Yes
• Puron Refrigerant: Yes
• Cold Weather Performance: Yes
• Efficiency Up to SEER: 17.5
• Efficiency Up to EER: 13.3
• Efficiency Up to HSPF: 9.5
• All sizes meet ENERGY STAR qualifications: 1
• Coastal: False
• Dimensional Weight: 435
• EER2: 0
• Prop 65: true
• Aesthetics Heavy-gauge, galvanized steel construction:
• Aesthetics Baked-on, durable powder coat paint:
• Aesthetics Steel, louvered coil guard:
