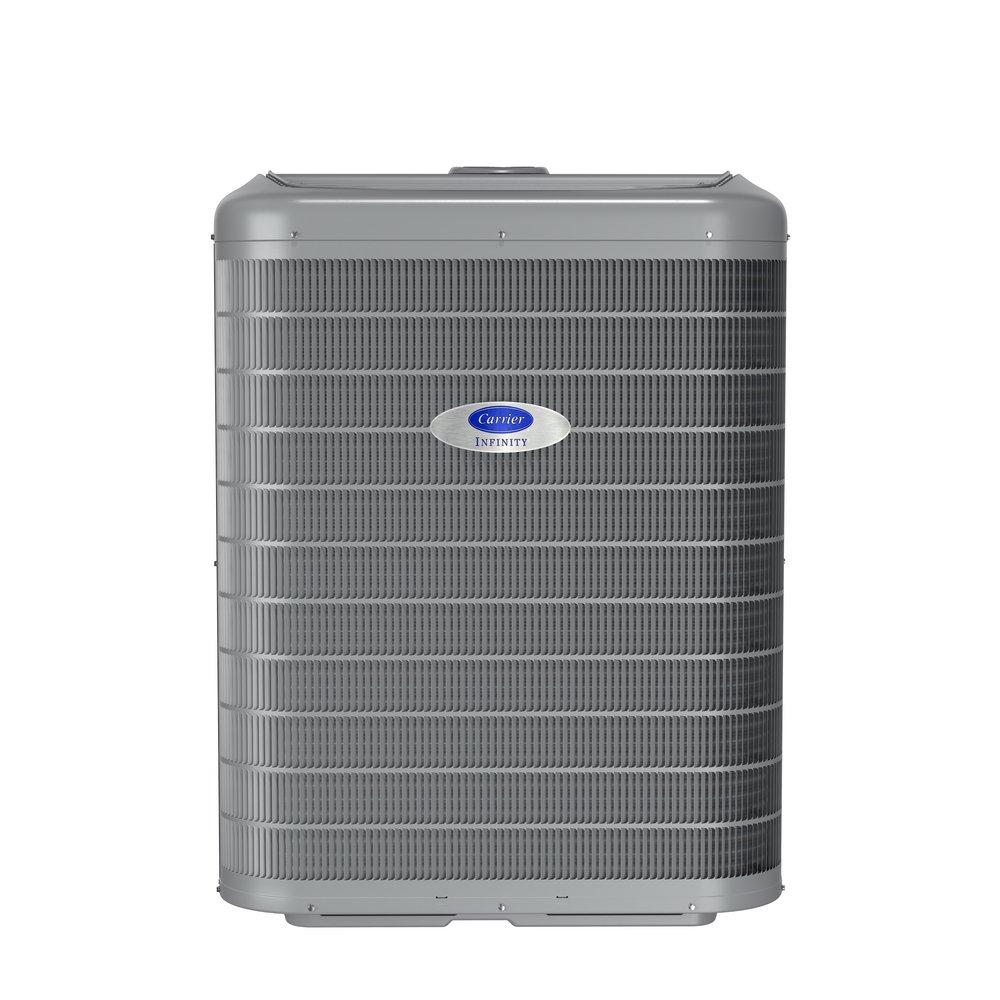

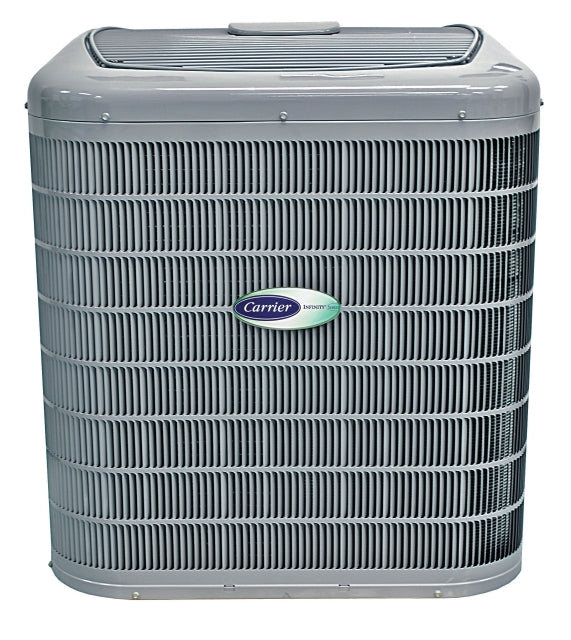

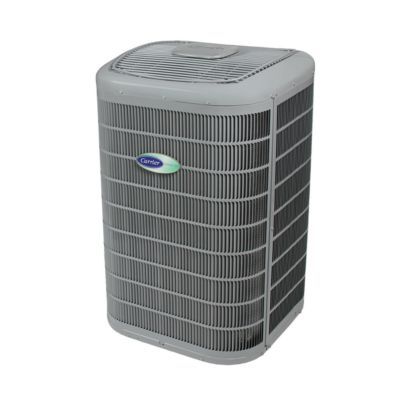

Carrier 24VNA660A003 Infinity 5 Ton 26 SEER Air Conditioner

Product Description

The CARRIER 24VNA660A003 Infinity air conditioner is a 5 ton, 26 SEER residential variable speed condensing unit. This energy-efficient AC unit offers enhanced cooling and ultra-quiet comfort. It features Greenspeed intelligence by pairing adaptable-speed technology with the Infinity System Control.

• Up to 26 SEER Infinity 24VNA6 VS w Greenspeed Intelligence for energy efficiency.
• Microtube Technology refrigeration system.
• Sound level as low as 51 dBA in low speed.

Product Highlights

The Infinity 26 air conditioner with Greenspeed intelligence offers enhanced cooling, energy efficiency, and quiet operation. It adapts its output to the needs of the home, ensuring tighter temperature control.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 24VNA660A003

Technical Specifications

• MfgNum: 24VNA660A003
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Air Conditioners
• SubSubCat: Residential
• Vendor Name: Carrier
• Tonnage: 5 Ton
• Nominal Seer: 26
• Refrigerant: R410A
• Suction Line Size: 7/8"
• Voltage (Phase): 208/230 V 1-Phase
• Air Flow: Vertical
• CFM Nominal: 4800
• Compressor: Rotary
• Compressor RLA: 20.1
• Compressor Type: Rotary
• Condenser Motor HP: 1/3
• Condenser Motor Phase: 1
• Condenser Motor Type: Propeller Type, Direct Drive
• EER: 12, 14.5
• Fan Diameter: 26
• Frequency: 60
• Full Load: 0.88 amp
• High Pressure Switch: True
• Inverter: True
• Liquid Line Fitting: Sweat
• Liquid Line Size: 3/8
• Low Pressure Switch: False
• Max Sound Level: 67
• Maximum EER: 14.5
• Maximum Piping Length: 250
• Maximum SEER: 22.5
• MCA: 26
• Metering Device: TXV
• Min Sound Level: 52
• Minimum Cooling Capacity: 500
• Minimum EER: 12
• Motor Phase: 1
• Number Of Fan Blades: 3
• Outdoor Fan Motor FLA: 0.88
• Rated Load: 20.1 amp
• Rows: 2
• Sound Blanket: True
• UL Listed: True
• Voltage: 208-230
• Compressor Stages: Variable Speed
• Decibel Rating (dB): 67 dB
• Energy Star Compliant: Yes
• Factory Std. Refrigerant Charge: 243.2 oz
• Liquid Line (OD): 3/8 in
• Max Fuse Size: 40
• Minimum Circuit Ampacity (MCA): 26.0
• Phase: Single Phase
• Refrigerant Control: TXV
• Refrigeration Control Type: TXV
• SEER: 20.0
• SEER2: 24.0
• Suction Line (OD): 7/8 in
• Volts: 208/230V
• BTU Cooling Rating: 57500 Btu/h
