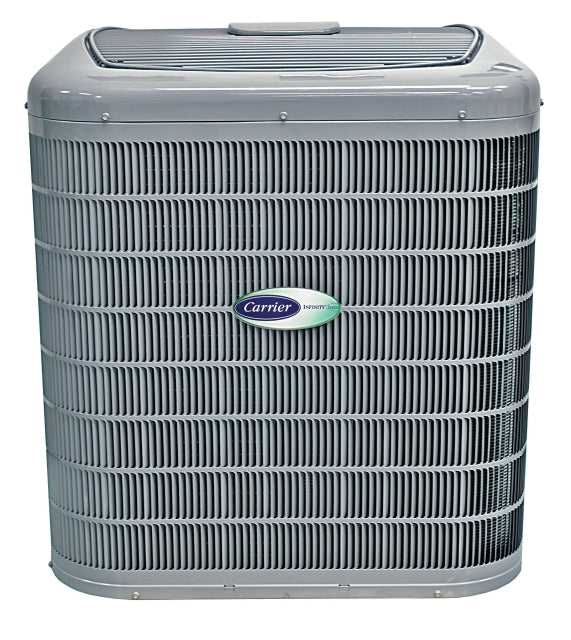

Carrier 24VNA624A003 Infinity 2 Ton Air Conditioner

Product Description

The CARRIER 24VNA624A003 Infinity air conditioner is a 2 ton residential variable speed condensing unit. With up to 26 SEER, this energy-efficient AC unit offers enhanced cooling and dehumidification. It features a variable speed compressor with a capacity range from 25-100%. The system requires Infinity Control with Greenspeed capability.

• Up to 26 SEER Infinity 24VNA6 VS w Greenspeed Intelligence for energy efficiency.
• Microtube Technology refrigeration system.
• Sound level as low as 51 dBA in low speed.

Product Highlights

This air conditioner provides efficient cooling with Greenspeed intelligence, offering enhanced comfort and energy savings.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 24VNA624A003
• Country of Origin: USA

Technical Specifications

• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Air Conditioners
• SubSubCat: Residential
• Vendor Name: Carrier
• MfgNum: 24VNA624A003
• Tonnage: 2
• Nominal Seer: 26
• Refrigerant: R410A
• Voltage (Phase): 208/230 V 1-Phase
• CFM: 3100
• Compressor Stage: Modulating
• Configuration: Vertical
• Cooling Capacity: 22800, 300
• Family: Infinity
• Gas Stages: Modulating
• Line Voltage (60Hz): 240V
• Suction Line Size: 3/4"
• Air Flow: Vertical
• CFM Nominal: 3100
• Compressor: Rotary
• Compressor RLA: 6.2
• Compressor Type: Rotary
• Condenser Motor HP: 1/3
• Condenser Motor Phase: 1
• Condenser Motor Type: ECM (Electronically Commutated Motor)
• EER: 14, 16.5
• Fan Diameter: 26
• Frequency: 60
• Full Load: 0.88 amp
• Height: 47.1875 in
• High Pressure Switch: True
• Inverter: True
• Length: 35 in
• Liquid Line Fitting: Sweat
• Liquid Line Size: 3/8
• Max Sound Level: 58
• Maximum EER: 16.5
• Maximum Piping Length: 250
• Maximum SEER: 26
• MCA: 9
• Metering Device: TXV/EXV
• Min Sound Level: 51
• Minimum EER: 14
• Motor Phase: 1
• Number Of Fan Blades: 3
• Outdoor Fan Motor FLA: 0.88
• Rated Load: 6.2 amp
• Rows: 2
• Sound Blanket: True
• UL Listed: True
• Voltage: 208-230 VAC
• Weight: 135 lb
• AHRI - Usage: Outdoor
• Condenser Motor RPM: 200-750
• Condenser Motor Speeds: Variable
• Cooling Capacity Btu/h: 24000
• Cycle/Hertz: 60 Hz
• EER2: 16
• Energy Star Rated: true
• Equipment Type: Straight Cool
• Liquid Line Size (OD): 3/8"
• OPT Code: 1P24VNA624A003
• Phase: Single
• Product Family: 24VNA6
• Prop 65: true
• SEER: 26
• SEER2: 23.5
• Sound Level (dBA): 51-58
• Substantial Commodity: Steel; Copper; Aluminum
• Suction Line Size (OD): 3/4"
• Tier: Infinity™
• Liquid Line Fitting Type: Sweat or Braze
• Locked Rotor Amps (LRA): 7.4
• Rated Load Amps (RLA): 6.2
• Suction Line Fitting Type: Sweat or Braze
• Width: 35
• Maximum Overcurrent Protection (MOCP): 15
• Condenser Coil Fins per Inch (FPI): 20
