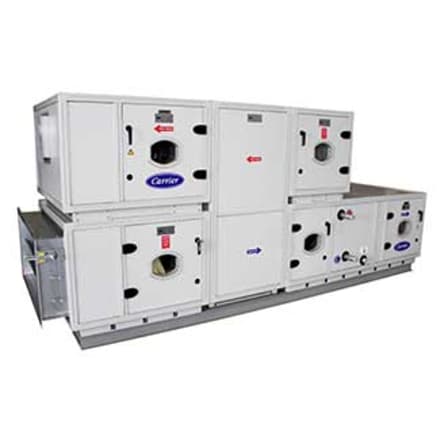

CARRIER 2418 Airovision 39HQM Central Station Air Handler

Product Description

The CARRIER 2418 Airovision 39HQM is a central station air handler designed for heating, cooling, ventilation, and variable air volume applications. This unit uses aluminum for the frame and panels, ensuring durability and strength. The construction meets EN 1886 standards, providing confidence in its performance.

• Available in 95 standard sizes.
• Offers multiple filtration options, including pleated and HEPA filters.
• Service can be performed through removable or hinged panels.

Product Highlights

This air handler is suitable for various applications and provides options for coil types and fan designs, adapting to different system requirements.

Product Information

Standard Information

• Country of Origin: KSA

Technical Specifications

• Air Flow: Ranges from 1100 m3/hr to 108,000 m3/hr
• Casing Construction: Galvanized steel
• Foam Insulation: CFC-Free Polyurethane, 40kg/m3 density
• Dampers: Parallel and opposed blade dampers
• Arrangements: Horizontal and vertical draw-thru
• Filtration: Pleated to HEPA filters
• Coil Options: Chilled water, hot water, direct expansion
• Refrigerant Circuits: Dual circuits for DX coil
• Coil Standards: ASHRAE/ANSI 15 compliant
• Drain Pan: Insulated single skin drain pan
• Fan Types: Forward, backward, aerofoil, and plug fan
• Electric Preheat: Available over a wide kW range
