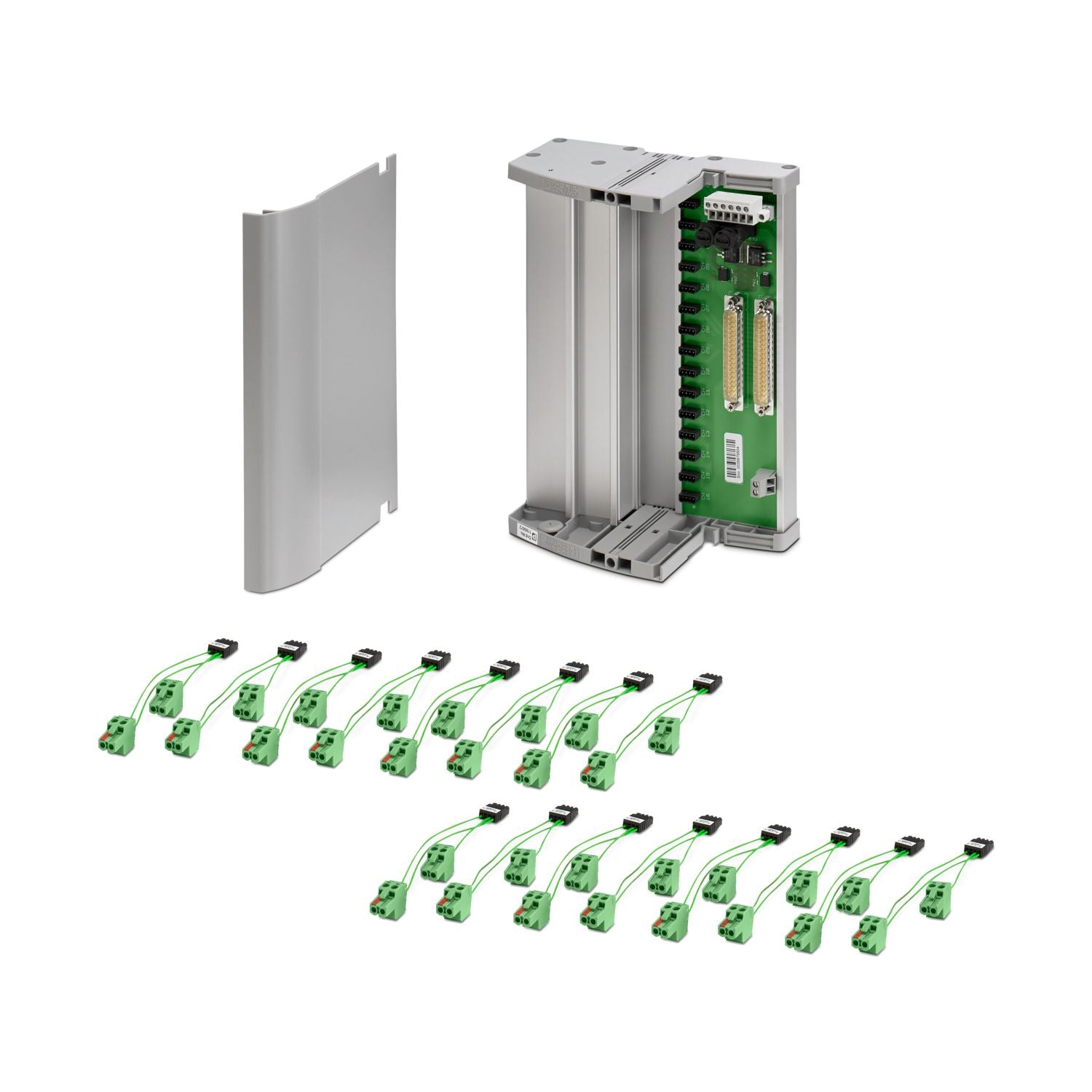

CARRIER 1185872 Module Carrier

Product Description

The CARRIER 1185872 is a module carrier designed for effective connection between coupling relays and digital output cards. It utilizes a D-SUB connector for simplified wiring. This module ensures reliable operation within a specified voltage range and offers screw connections for various conductor sizes.

• Supports input voltage from nineteen point two V DC to thirty V DC
• Rated for a maximum of one A per signal path
• Temperature range from minus twenty degrees Celsius to sixty degrees Celsius

Product Highlights

Product Information

Standard Information

• Product Type: Module carrier
• Manufacturer: CARRIER

Technical Specifications

• Insulation: Functional insulation
• Max. Permissible Current: ± 1 A (per signal path)
• Nominal Voltage: < 50 V DC (per signal/channel)
• Fuse: 2x 2.5 A
• Input Voltage Range: 19.2 V DC to 30 V DC
• Connection Method: Screw connection
• Stripping Length: 7 mm
• Number of Connections: 1
• Number of Positions: 6
• Conductor Cross Section Rigid: 0.14 mm² to 2.5 mm²
• Conductor Cross Section Flexible: 0.14 mm² to 2.5 mm²
• Conductor Cross Section AWG: 24 to 12
• Width: 226 mm
• Height: 170 mm
• Depth: 160 mm
• Ambient Temperature Operation: -20 °C to 60 °C
• Humidity Range Operation: 5 % to 95 % (non-condensing)
• Shock Rating: 15g, according to IEC 60068-2-27
• Vibration Rating: 2g, according to IEC 60068-2-6
• Altitude: ≤ 2000 m (above sea level)
• Weight: 10 lbs
