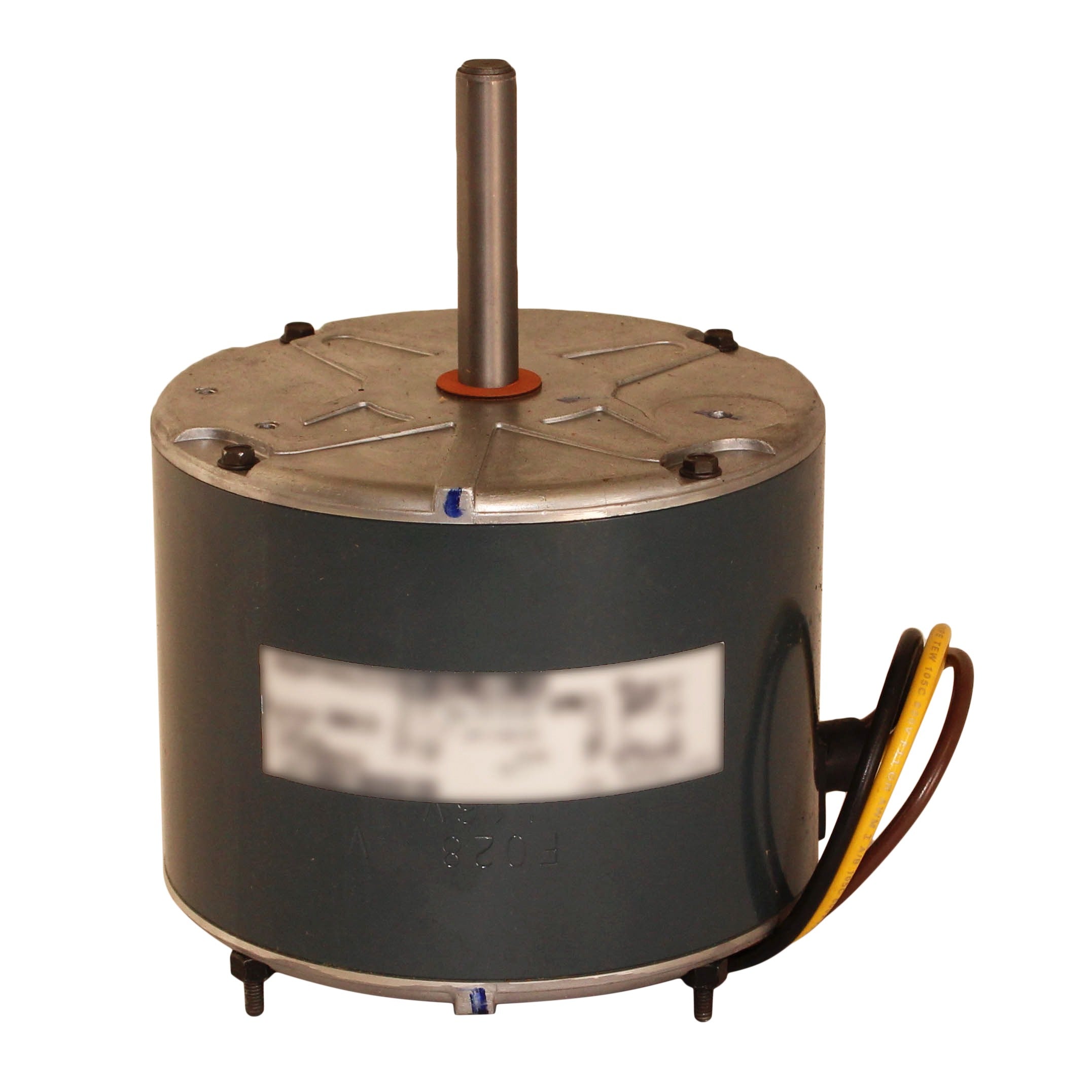

Carrier 1184598 Condenser Fan Motor 1/5 Hp 810 Rpm

Product Description

The CARRIER 1184598 is a single-phase condenser fan motor rated at 1/5 HP and 810 RPM, designed to drive airflow across condenser coils in residential air conditioning and heat pump systems. Operating at 208-230 volts and 60 Hz, it moves air efficiently across the coil surface to maintain proper heat rejection. This is an OEM-specification replacement motor built to meet manufacturer compliance standards. HVAC technicians install this motor during condenser fan failure diagnosis or as part of a planned maintenance repair on qualifying Carrier equipment.

This motor fits Carrier residential condensing units including the CSA6, HSA6, and HSH5 series, along with additional compatible models. It is suited for single-phase residential systems where the original condenser fan motor has failed due to bearing wear, winding failure, or overheating. Proper airflow restoration is critical to maintaining system efficiency and preventing compressor overload, making this a high-priority repair component for service technicians in the field.

Key Features

• 1/5 HP output for condenser fan airflow duty
• 810 RPM operating speed matched to OEM fan blade requirements
• 208-230 volt input compatible with standard residential single-phase power
• 60 Hz single-phase design for North American HVAC applications
• OEM-specification construction for compliance with Carrier system standards

Compatibility

Fits Carrier CSA6, HSA6, and HSH5 series condensing units. Refer to the full fits-models list for complete compatibility coverage across additional Carrier air conditioner and heat pump platforms.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor or handling any wiring. Verify that the replacement motor shaft rotation direction matches the original before connecting the fan blade. Follow applicable NEC requirements for field wiring and motor replacement procedures.
