CARRIER 1179379 Condenser Fan Motor 208-230V 1/12 HP

Product Description

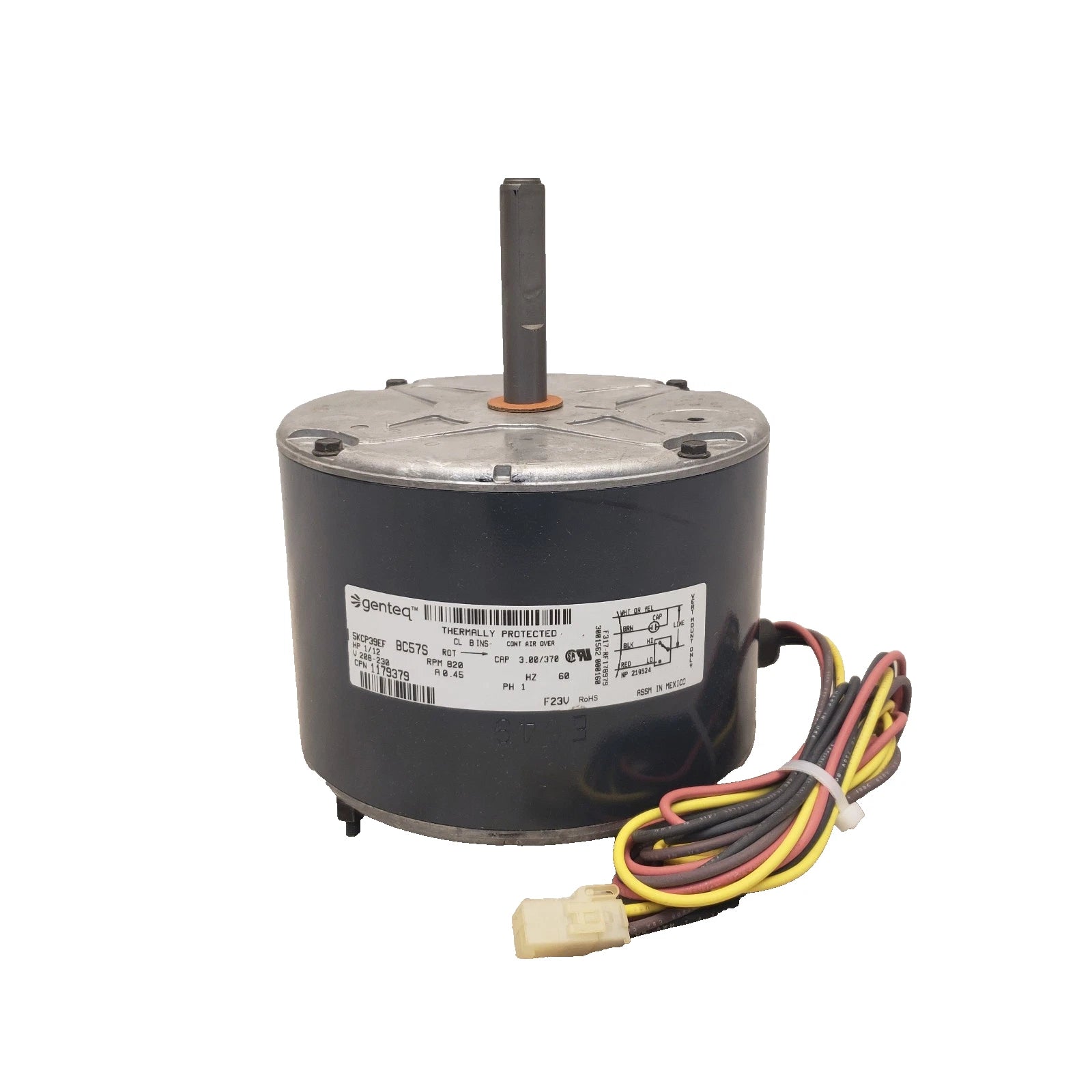

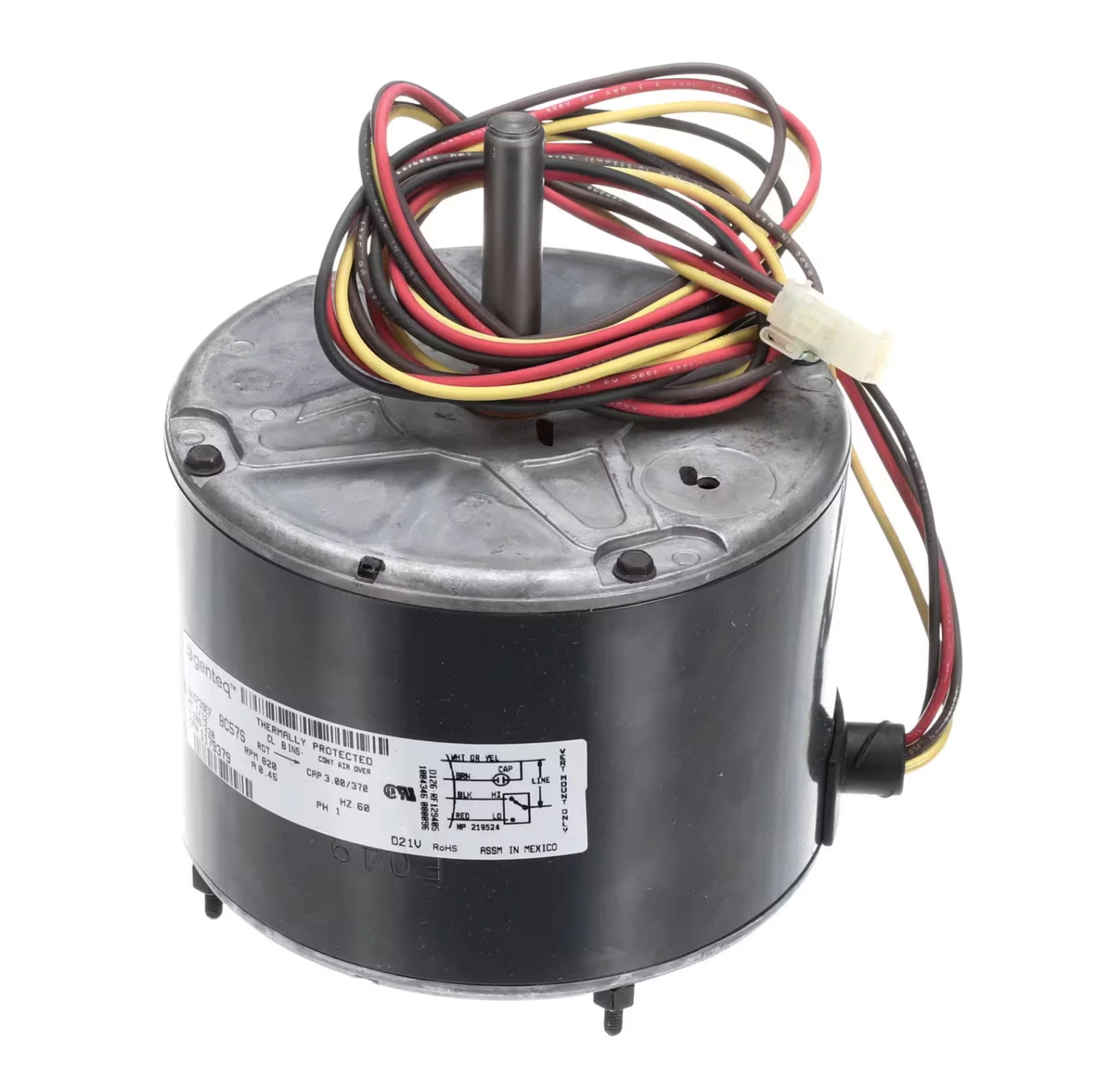

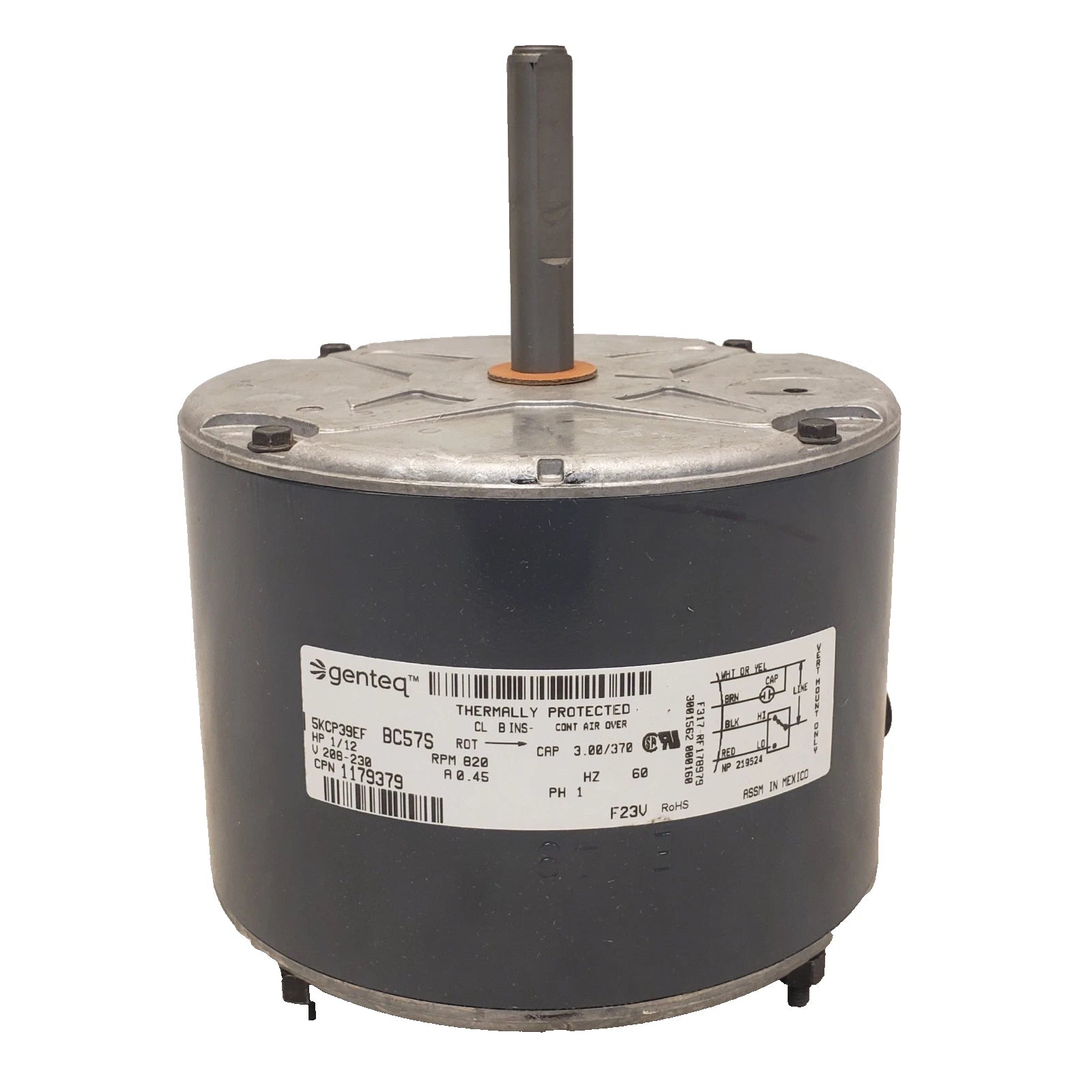

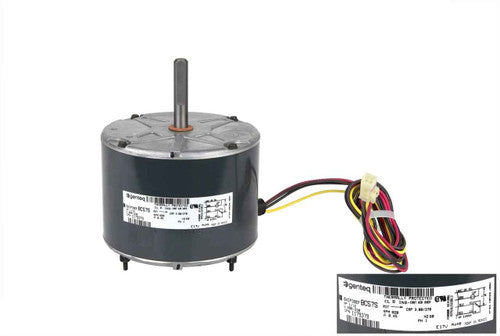

The CARRIER 1179379 is a condenser fan motor suitable for multiple applications. It runs on 208-230V power, providing 1/12 horsepower at 820 RPM. This single-phase motor has a rolled steel frame and aluminum flange for stability during operation. Designed for continuous air over cooling, it includes ball bearings for efficient function.

• Operates at 208-230V, 60Hz
• Provides 1/12 HP at 820 RPM
• Single side flat shaft design

Product Highlights

The CARRIER 1179379 is reliable for HVAC systems and compatible with various setups. Ideal for replacing old motors or for new installations.

Product Information

Standard Information

• Brand: ICP / Carrier
• MPN: 1179379

Technical Specifications

• Type: Condenser Fan Motor
• Power Source: Corded Electric
• Voltage: 208/230
• Horsepower: 1/12
• Hertz: 60
• Amperage: 0.45
• Phase: Single
• RPM: 820
• Speeds: 2
• Frame: 39
• Thermally Protected: true
• Insulation Class: B
• Motor Duty/Cooling: Continuous Air Over
• Bearings: Ball
• Capacitor Needed: 3 MFD @ 370 VAC
• Mounting: Vertical Shaft Down
• Rotation: Clockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2 inches
• Shaft Length: 2 1/2 inches
