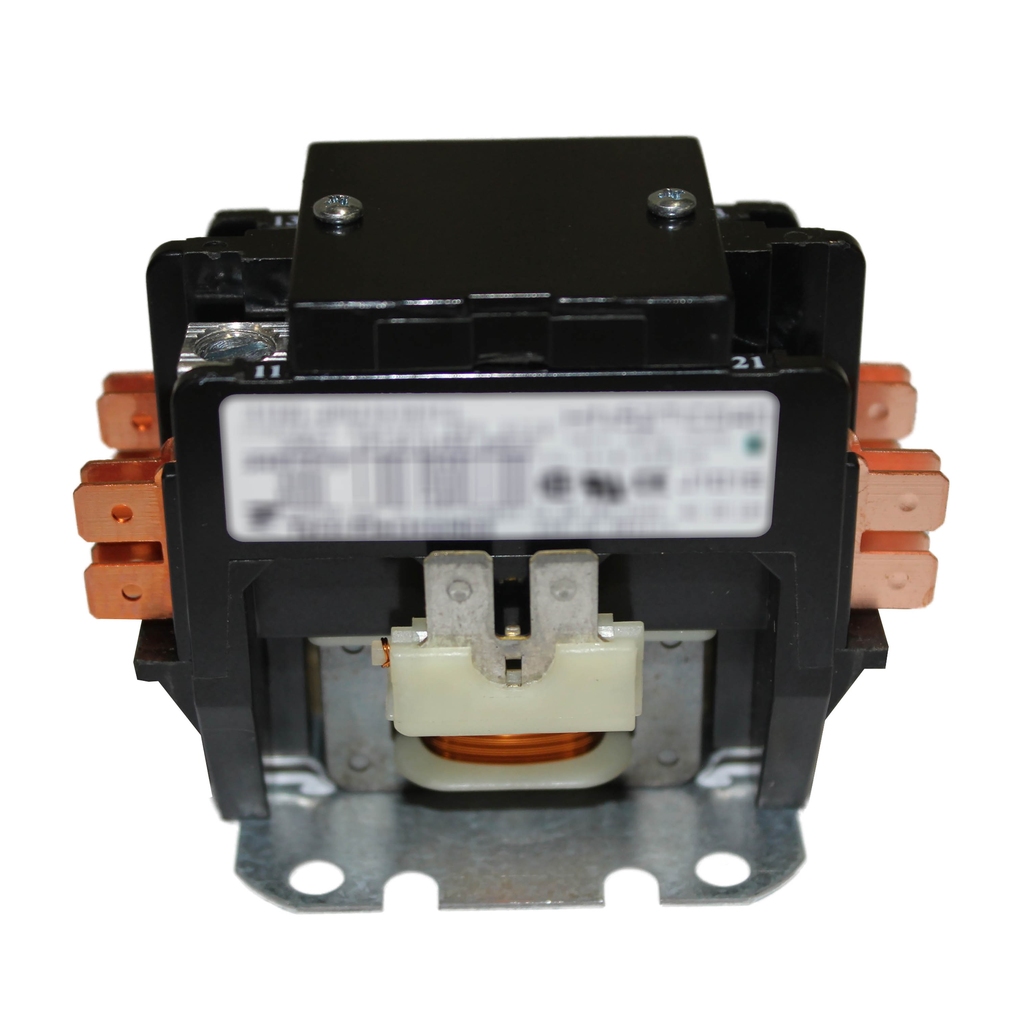

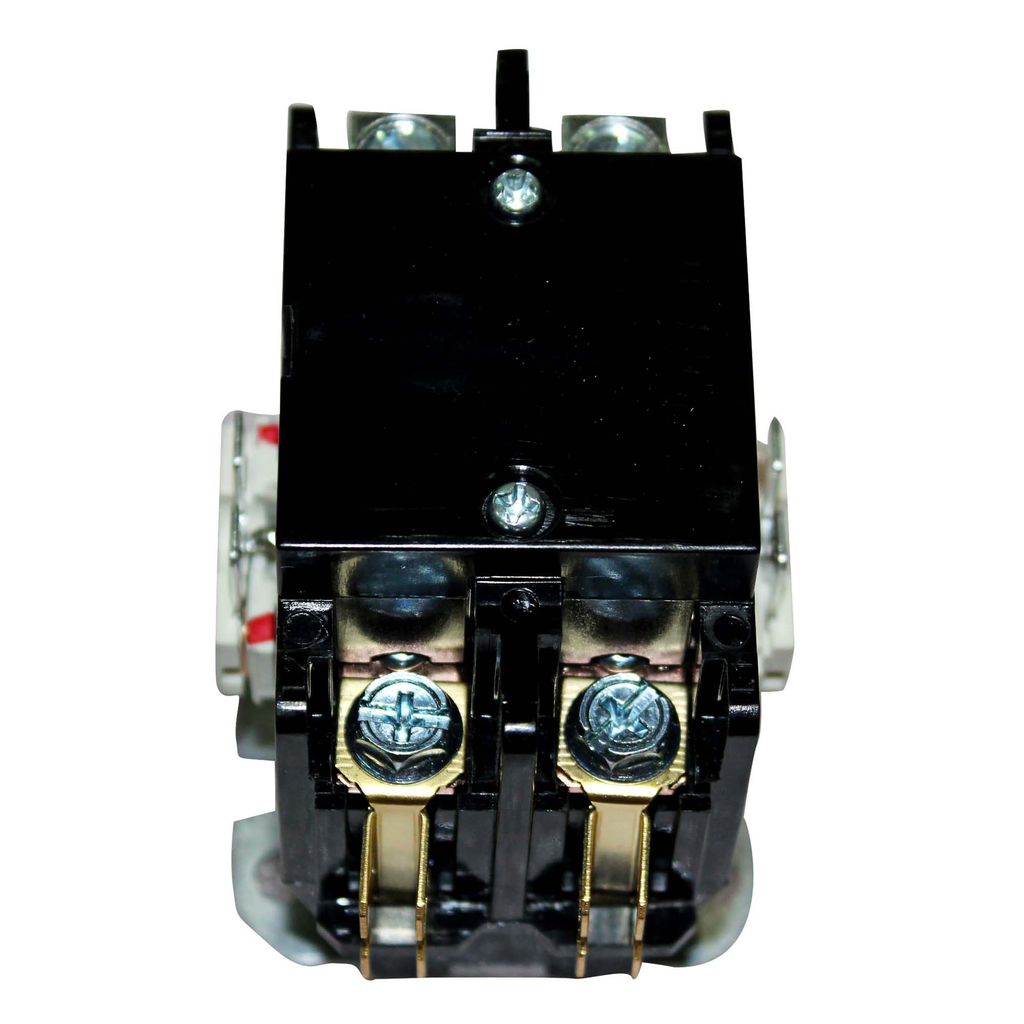

Carrier 1178211 contactor 2 pole 40 amp 24V coil

Product Description

The CARRIER 1178211 is an OEM definite purpose contactor designed for switching high voltage HVAC loads such as compressors and condenser fan motors using a 24V control signal. It features a 2 pole configuration with a 40 amp full load rating, allowing it to break both legs of the circuit for full equipment isolation. This contactor supports inductive motor loads with high inrush current and is rated for systems up to 600 VAC with 50/60 Hz operation. It includes quick connect and screw terminal combinations for field wiring and a compact mounting footprint.

• Designed for switching high voltage HVAC loads including compressors and condenser fan motors.
• Features a 2 pole configuration with a 40 amp full load rating and utilizes a 24V control signal.
• Supports inductive motor loads up to 600 VAC, 50/60 Hz, with quick connect and screw terminal wiring.

Product Highlights

OEM definite purpose contactor for HVAC systems, ensuring full equipment isolation and supporting high inrush current loads.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 1178211

Technical Specifications

• Type: OEM definite purpose contactor
• Poles: 2
• Amperage: 40 Amp
• Control Signal: 24V
• Voltage Rating: Up to 600 VAC
• Frequency: 50/60 Hz
• Wiring: Quick connect and screw terminal combinations
• Mounting: Compact footprint
